Part#:WLC60XW340GAPWM

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

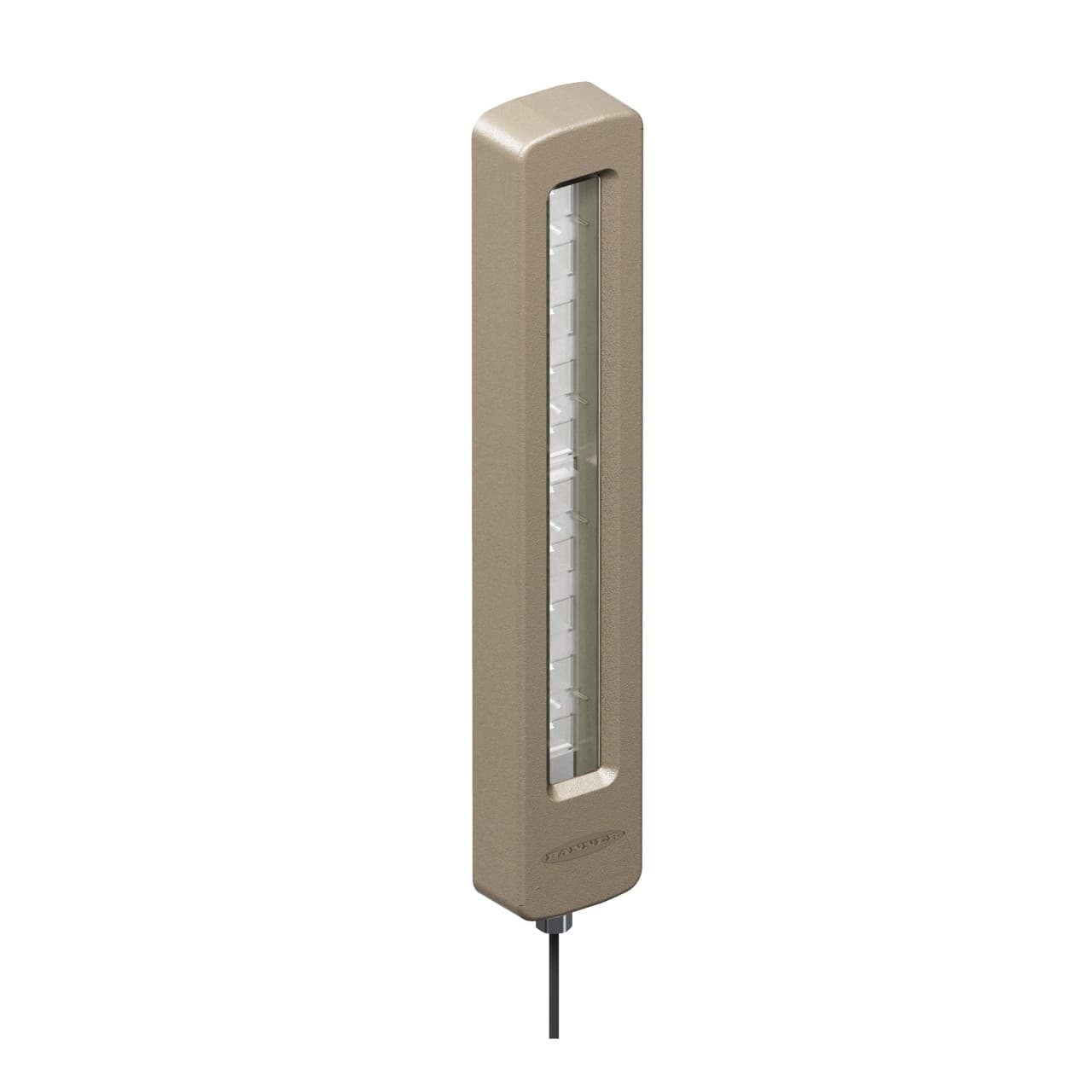

Banner Engineering WLC60XW340GAPWM is a task light designed for industrial heavy-duty applications, featuring LED area lighting in a 1-color Cool White (W) illumination. This model, part of the PWM dimmable series, is equipped with a glass window side connection and operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. It measures L340mm x W24.5mm and is constructed with a clear glass window and a nickel-plated aluminum housing. The light is pre-wired with a 2m / 6.5ft 4-wire cable that terminates with bare end flying leads, and it has a linear strip lighting shape. It offers a high degree of protection with ratings of IP67, IP68, IP68G, and IP69K, making it suitable for various challenging environments. The mounting mode is base type, and it can operate within an ambient air temperature range of -40°C to +70°C. It includes 1 x digital input (12Vdc / 24Vdc) for color control and delivers a luminous flux of 1300 lm (lumens).

Product Details

  • Wireless
    No
  • Modbus RTU
    No
  • Pro-Editor Compatible (Discrete)
    No
  • Feature: Audible
    No
  • IO Link
    No
  • Feature: Hazardous Area
    No
  • Feature: Quick Disconnect
    No
  • Primary Window Material
    Glass Clear
  • Feature: Chemical Resistant
    Yes
  • Min Op. Temperature (°C)
    -40
  • Feature: Washdown Rated
    Yes
  • Storage Temp (°C)
    -40 to 70
  • Max Op. Temperature (°C)
    70
  • Environmental Rating
    IP67; IP68; IP68g; IP69
  • Physical Dimensions (LxWxH or DxH mm)
    354.1 x 60.9 x 31.3
  • Illuminated Length (LxWxH mm)
    254.6
  • Supply Voltage
    12-30 V dc
  • Color 1 - Wavelength/Color Temp/Coordinates
    6500K (Cool)
  • Dimming Option
    PWM
  • Number of Input Pins/Conductors
    4
  • Lumens Color 1
    1300
  • Animation Option 1
    Solid On
  • Connection
    Cable
  • Color Option 1
    White
  • Color Technology
    Standard LED
  • Product Size (mm)
    60
  • Housing Style
    Linear Strip
  • Illumination
    Yes
  • Primary Housing Material
    Nickel-Plated Aluminum
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Number of Colors / Segments
    1
  • Mounting Thread
    No Thread
  • Power Source
    DC
  • Power
    DC
  • Cable Length (m)
    2

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

WLC60XW340GAPWM Related Documents

WLC60 Heavy Duty LED Lights PWM Dimmable -- Datasheet-1630953376147.pdfWLC60X_340_-1630953376144.stpWLC60X_340_-1630953376141.pdf
