WLB32ZC850MQMB Banner Light Bars

WLB32ZC850MQMB on Powermatic Associates
Banner

Part#:WLB32ZC850MQMB

Manufacturer:Banner

Alt. Part#:800349

Product Lifecycle:Active

Get a quick Quote!

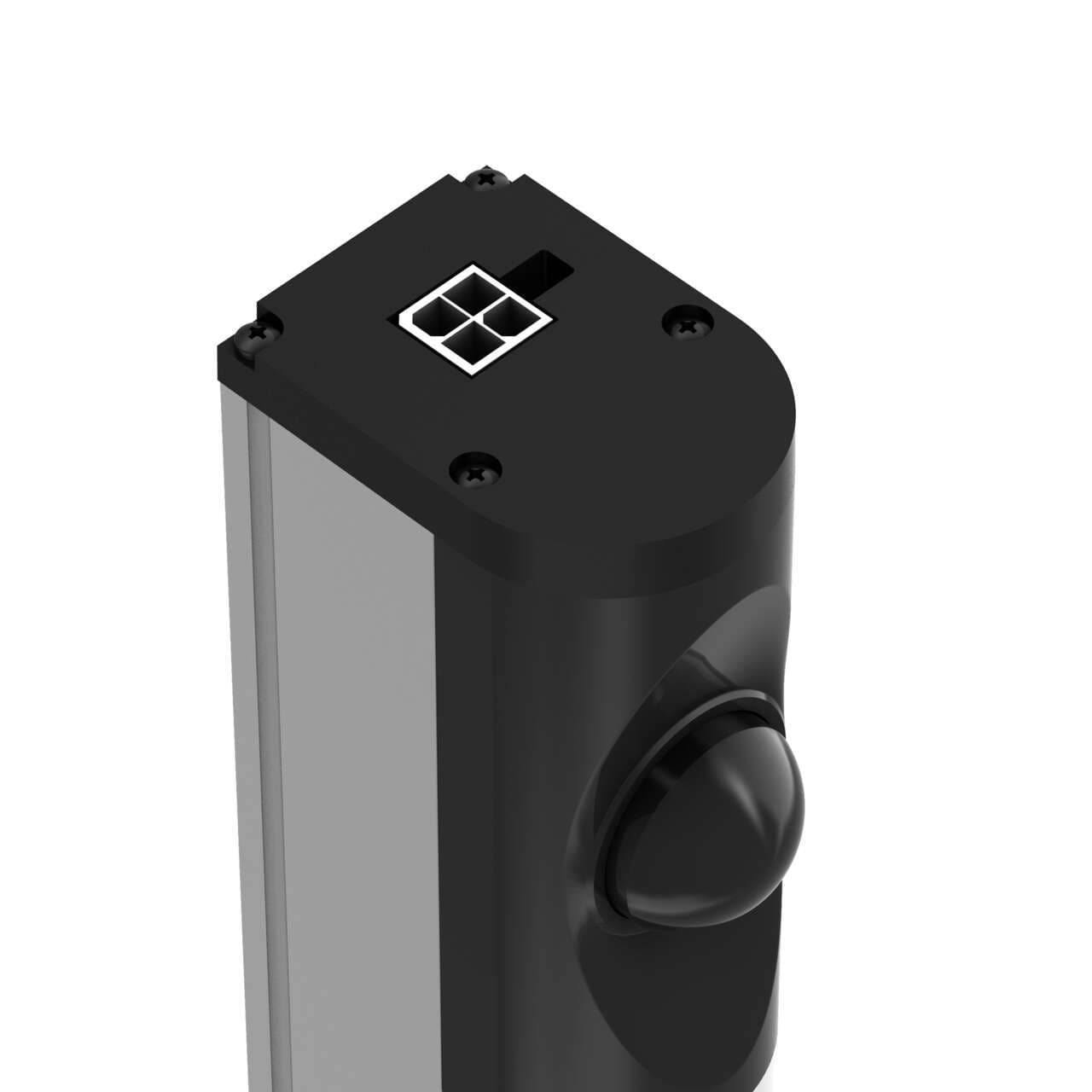

WLB32 Work Light Bar; Motion Sensor; Length: 850 mm; Voltage: 90-264 V ac; Environmental Rating: IP50; Color: White; Cascadable; QD - Includes Type B Power Cord; Diffuse window

About the manufacturer: Banner is one of the manufacturers that offers Light Bars that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the WLB32ZC850MQMB Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    839.1452 g
  • Country Of Origin
    MX
  • Feature: Audible
    No
  • Physical Dimensions (LxWxH or DxH mm)
    932.0 x 32.0 x 50.1
  • Color Technology
    Standard LED
  • Modbus RTU
    No
  • Pro-Editor Compatible (Discrete)
    No
  • Wireless
    No
  • Feature: Chemical Resistant
    No
  • IO Link
    No
  • Feature: Quick Disconnect
    Yes
  • Feature: Cascade
    Yes
  • Feature: Hazardous Area
    No
  • Illumination Switch Function
    Motion Activated
  • Primary Window Material
    Polycarbonate Diffused
  • Storage Temp (°C)
    -40 to 70
  • Min Op. Temperature (°C)
    -25
  • Max Op. Temperature (°C)
    45
  • Environmental Rating
    IP50
  • Illuminated Length (LxWxH mm)
    850.0
  • Lumens Color 1
    2250
  • Connection
    Integral QD
  • Color 1 - Wavelength/Color Temp/Coordinates
    5000K (Daylight)
  • Color Option 1
    White
  • Number of Input Pins/Conductors
    3
  • Animation Option 1
    Solid On
  • Supply Voltage
    90-264 V ac
  • Power Source
    AC
  • Number of Colors / Segments
    1
  • Housing Style
    Linear Strip
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Primary Housing Material
    Aluminum
  • Product Size (mm)
    32
  • Power
    AC
  • Mounting Thread
    No Thread
  • Illumination
    Yes

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

WLB32ZC850MQMB Description

Banner Engineering WLB32ZC850MQMB is a cascadable industrial LED workstation light bar designed for task lighting. It features motion sensing and is equipped with a Type B power cord for 1-color Daylight White (DW) LED illumination. The light operates on a supply voltage of 90Vac-264Vac, accommodating 120Vac, 220Vac, 230Vac, and 240Vac inputs. With dimensions of L850mm x W32mm, it is constructed from a polycarbonate (PC) diffused window and an aluminium housing. The connection is facilitated by a pre-wired 1.8m / 5.9ft power cord terminated with a plug compatible in North & Central America, Japan, and Taiwan. Its linear shape is designed for efficient workspace lighting, offering a degree of protection of IP50. The ambient air temperature for operation ranges from -25°C to +45°C. It includes 1 x digital input (100-240Vac) for color control, consumes 375mA of current, and provides a luminous flux of 2250 lm (lumens).

Related documents WLB32ZC850MQMB Specs

WLB32ZC850MQMB 176314.pdf
