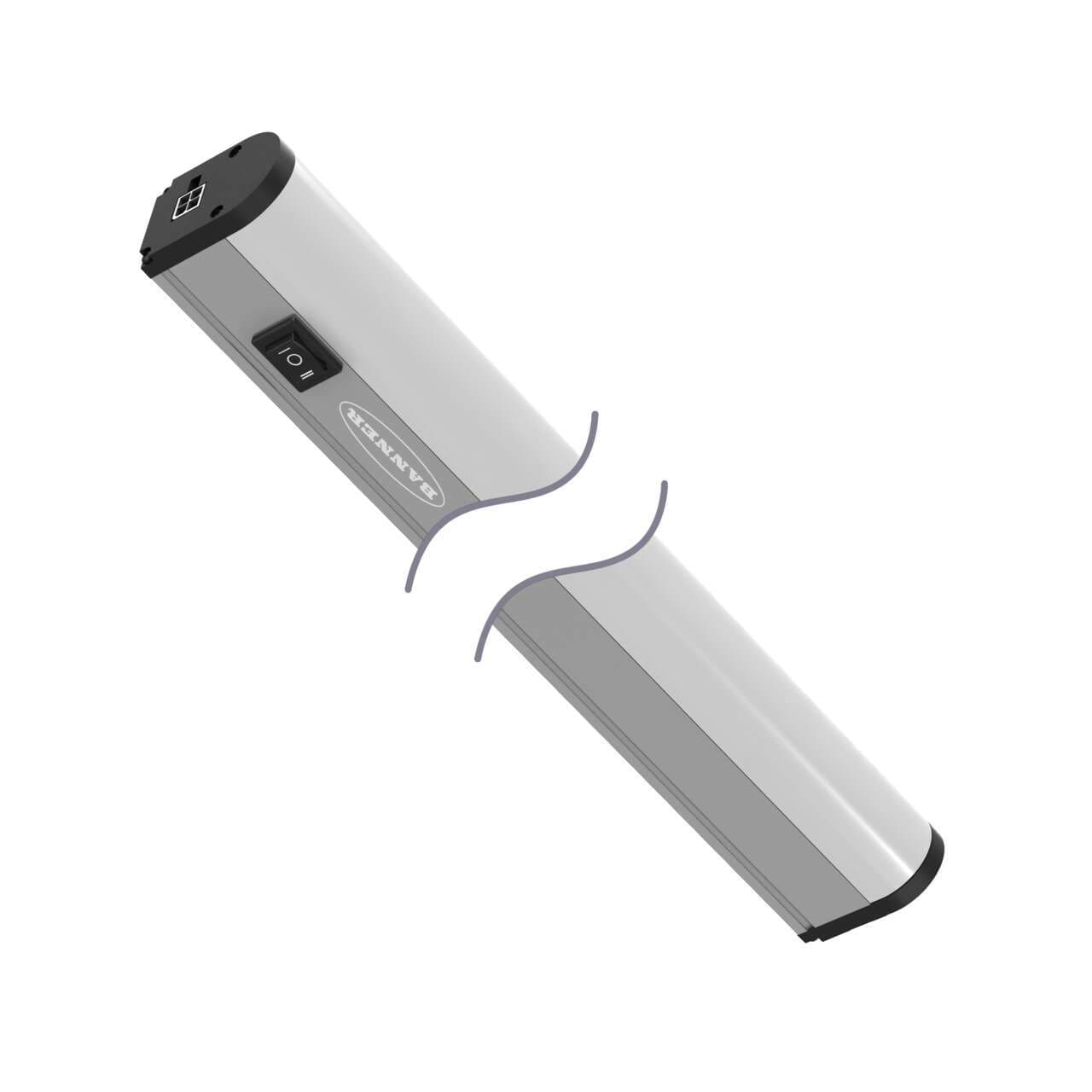

WLB32ZC570EQM Banner Light Bars
Part#:WLB32ZC570EQM
Alt. Part#:803068
Manufacturer:Banner
Category:Light Bars
Product Lifecycle:Active
Product description
WLB32 Work Light Bar; No Switch; High setting; Length: 570 mm; Voltage: 90-264 V ac; Environmental Rating: IP50; Color: White; Cascadable; Eye Shield; QD - No Power cord; Diffuse window
Product Details
- Weight 771.1064 g
- Country Of Origin MX
- Pro-Editor Compatible (Discrete) No
- IO Link No
- Modbus RTU No
- Feature: Quick Disconnect Yes
- Feature: Chemical Resistant No
- Wireless No
- Feature: Cascade Yes
- Feature: Audible No
- Feature: Hazardous Area No
- Primary Window Material Polycarbonate Diffused
- Storage Temp (°C) -40 to 70
- Min Op. Temperature (°C) -25
- Max Op. Temperature (°C) 45
- Eye Shield Yes
- Environmental Rating IP50
- Illuminated Length (LxWxH mm) 570.0
- Physical Dimensions (LxWxH or DxH mm) 580.0 x 38.3 x 48.0
- Color 1 - Wavelength/Color Temp/Coordinates 5000K (Daylight)
- Max Current Color (mA) 250
- Number of Input Pins/Conductors 3
- Color Option 1 White
- Animation Option 1 Solid On
- Lumens Color 1 1500
- Supply Voltage 90-264 V ac
- Connection Integral QD
- Color Technology Standard LED
- Product Size (mm) 32
- Mounting Thread No Thread
- Number of Colors / Segments 1
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Power Source AC
- Power AC
- Cable Length (m) 2
- Illumination Yes
- Primary Housing Material Aluminum
- Housing Style Linear Strip
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of WLB32ZC570EQM on Powermatic Associates is $174.00. Order now.
About the product
Banner Engineering WLB32ZC570EQM is a cascadable industrial LED workstation light bar designed for task lighting. It features eye shield 1-color Daylight White (DW) LED illumination and operates on a supply voltage of 90Vac-264Vac, accommodating 120Vac, 220Vac, 230Vac, and 240Vac. The dimensions of this product are L570mm x W32mm, with a polycarbonate (PC) diffused window and aluminium housing, ensuring durability. It comes pre-equipped with a plug-in connector for easy installation and has a linear lighting shape. The degree of protection offered is IP50, making it suitable for environments with a wide ambient air temperature range of -25°C to +45°C. It includes 1 x digital input (100-240Vac) for color control and has a current consumption of 250mA. The luminous flux provided by this task light is 1500 lm (lumens).
