WLB32ZC570EMQM Banner Light Bars

WLB32ZC570EMQM on Powermatic Associates
Banner

Part#:WLB32ZC570EMQM

Manufacturer:Banner

Alt. Part#:97845

Product Lifecycle:Active

Get a quick Quote!

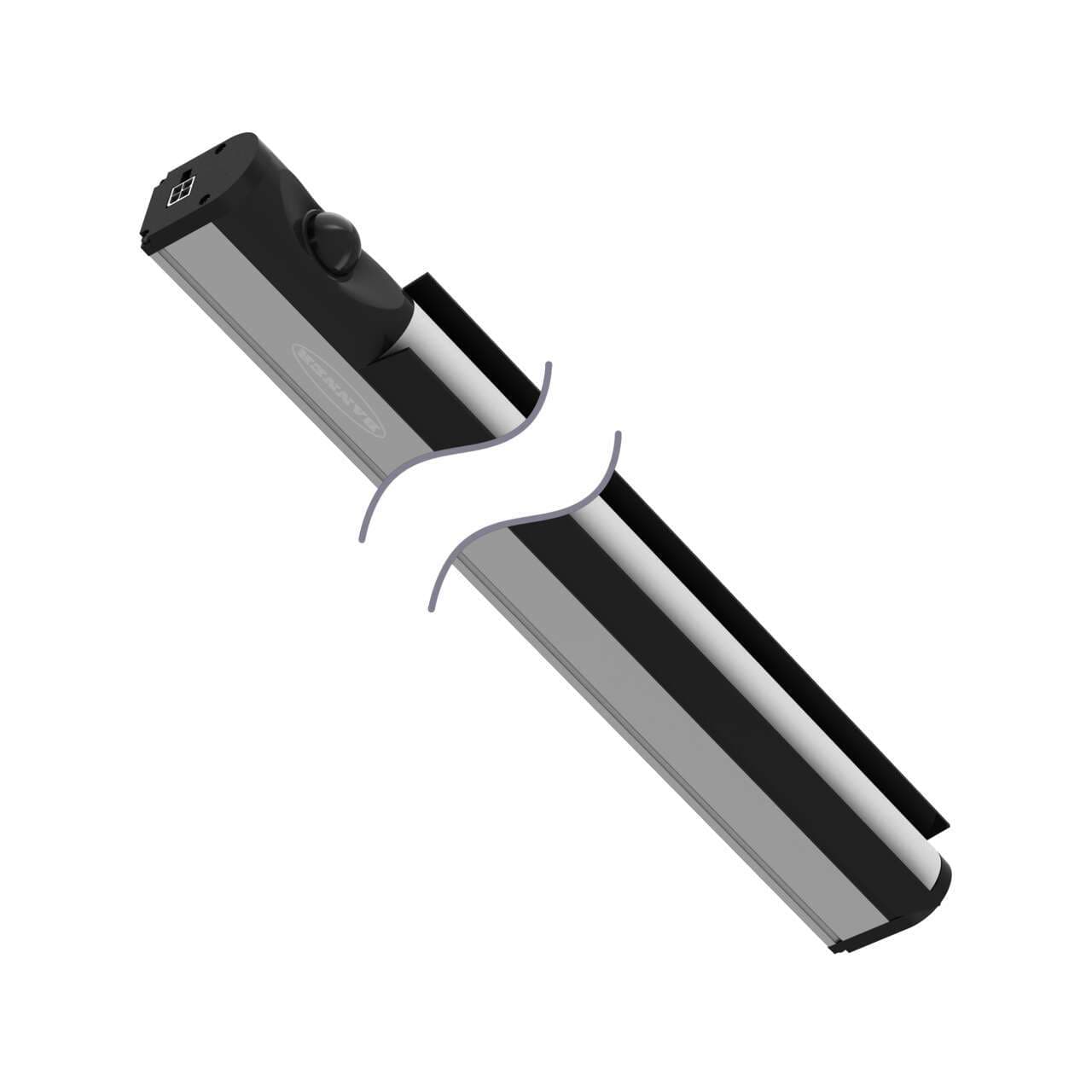

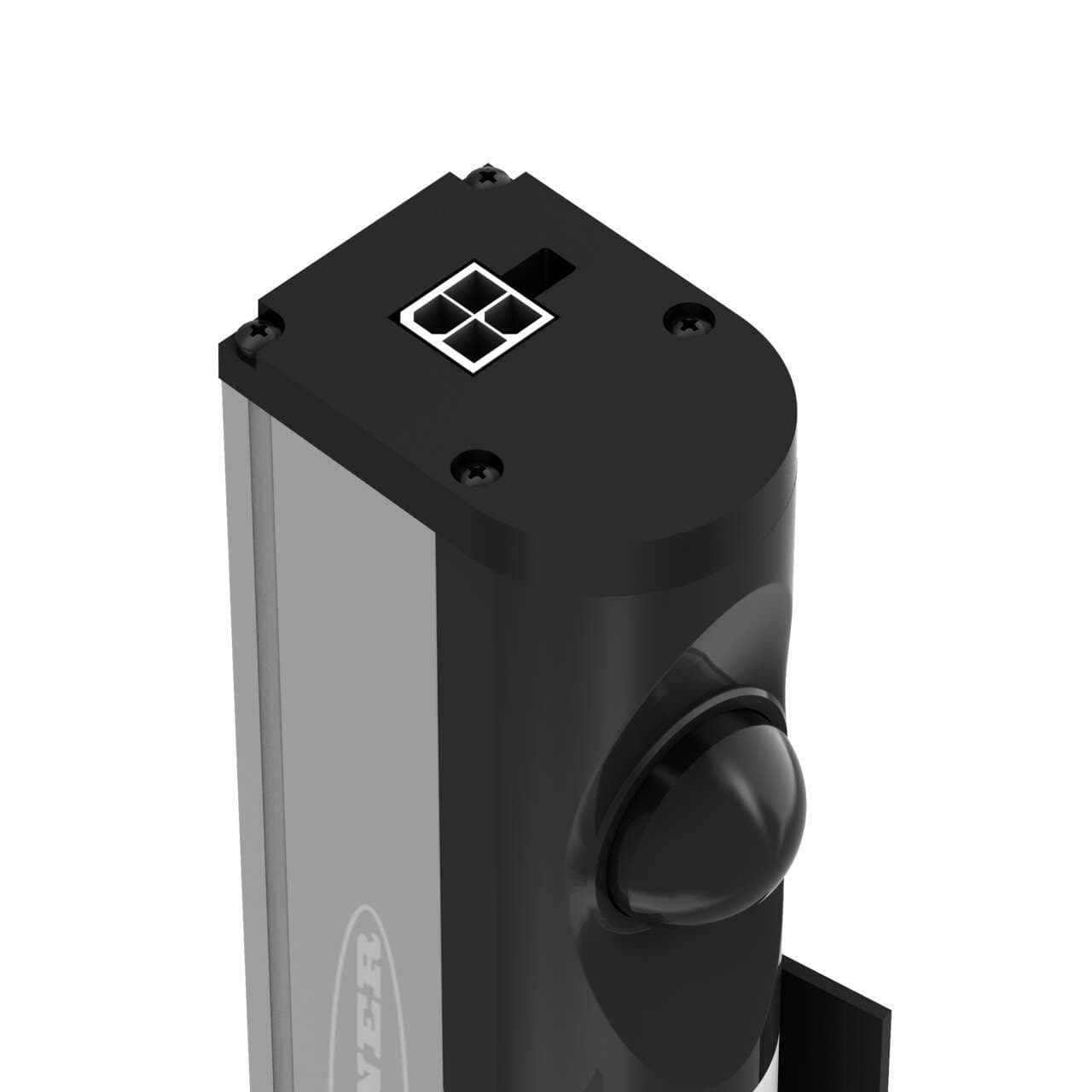

WLB32 Work Light Bar; Motion Sensor; Length: 570 mm; Voltage: 90-264 V ac; Environmental Rating: IP50; Color: White; Cascadable; Eye Shield; QD - No Power cord; Diffuse window

About the manufacturer: Banner is one of the manufacturers that offers Light Bars that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the WLB32ZC570EMQM Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    771.1064 g
  • Country Of Origin
    MX
  • Wireless
    No
  • Pro-Editor Compatible (Discrete)
    No
  • Illumination Switch Function
    Motion Activated
  • Modbus RTU
    No
  • IO Link
    No
  • Feature: Quick Disconnect
    Yes
  • Feature: Chemical Resistant
    No
  • Feature: Cascade
    Yes
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Primary Window Material
    Polycarbonate Diffused
  • Storage Temp (°C)
    -40 to 70
  • Min Op. Temperature (°C)
    -25
  • Max Op. Temperature (°C)
    45
  • Eye Shield
    Yes
  • Environmental Rating
    IP50
  • Physical Dimensions (LxWxH or DxH mm)
    650.0 x 38.3 x 50.1
  • Illuminated Length (LxWxH mm)
    570.0
  • Supply Voltage
    90-264 V ac
  • Number of Input Pins/Conductors
    3
  • Color 1 - Wavelength/Color Temp/Coordinates
    5000K (Daylight)
  • Max Current Color (mA)
    250
  • Connection
    Integral QD
  • Lumens Color 1
    1500
  • Animation Option 1
    Solid On
  • Color Technology
    Standard LED
  • Color Option 1
    White
  • Number of Colors / Segments
    1
  • Power
    AC
  • Mounting Thread
    No Thread
  • Power Source
    AC
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Product Size (mm)
    32
  • Housing Style
    Linear Strip
  • Primary Housing Material
    Aluminum
  • Illumination
    Yes

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

WLB32ZC570EMQM Description

Banner Engineering WLB32ZC570EMQM is a cascadable industrial LED workstation light bar designed with a motion sensing eye shield for 1-color Daylight White (DW) LED illumination. It operates on a supply voltage range of 90Vac-264Vac, accommodating 120Vac, 220Vac, 230Vac, and 240Vac systems. The light bar measures 570mm in length and 32mm in width, featuring a polycarbonate (PC) diffused window and an aluminium housing for durability. It comes pre-equipped with a plug-in connector for easy installation and is designed in a linear lighting shape. This product offers a degree of protection rated at IP50 and can operate in ambient air temperatures ranging from -25°C to +45°C. It includes 1 x digital input (100-240Vac) for color control and has a current consumption of 250mA. The luminous flux provided by this task light is 1500 lm (lumens).

Related documents WLB32ZC570EMQM Specs

WLB32ZC570EMQM 176314.pdf
