WLB32ZC285PBQMN Banner Light Bars

WLB32ZC285PBQMN on Powermatic Associates
Banner

Part#:WLB32ZC285PBQMN

Manufacturer:Banner

Alt. Part#:89961

Product Lifecycle:Active

Get a quick Quote!

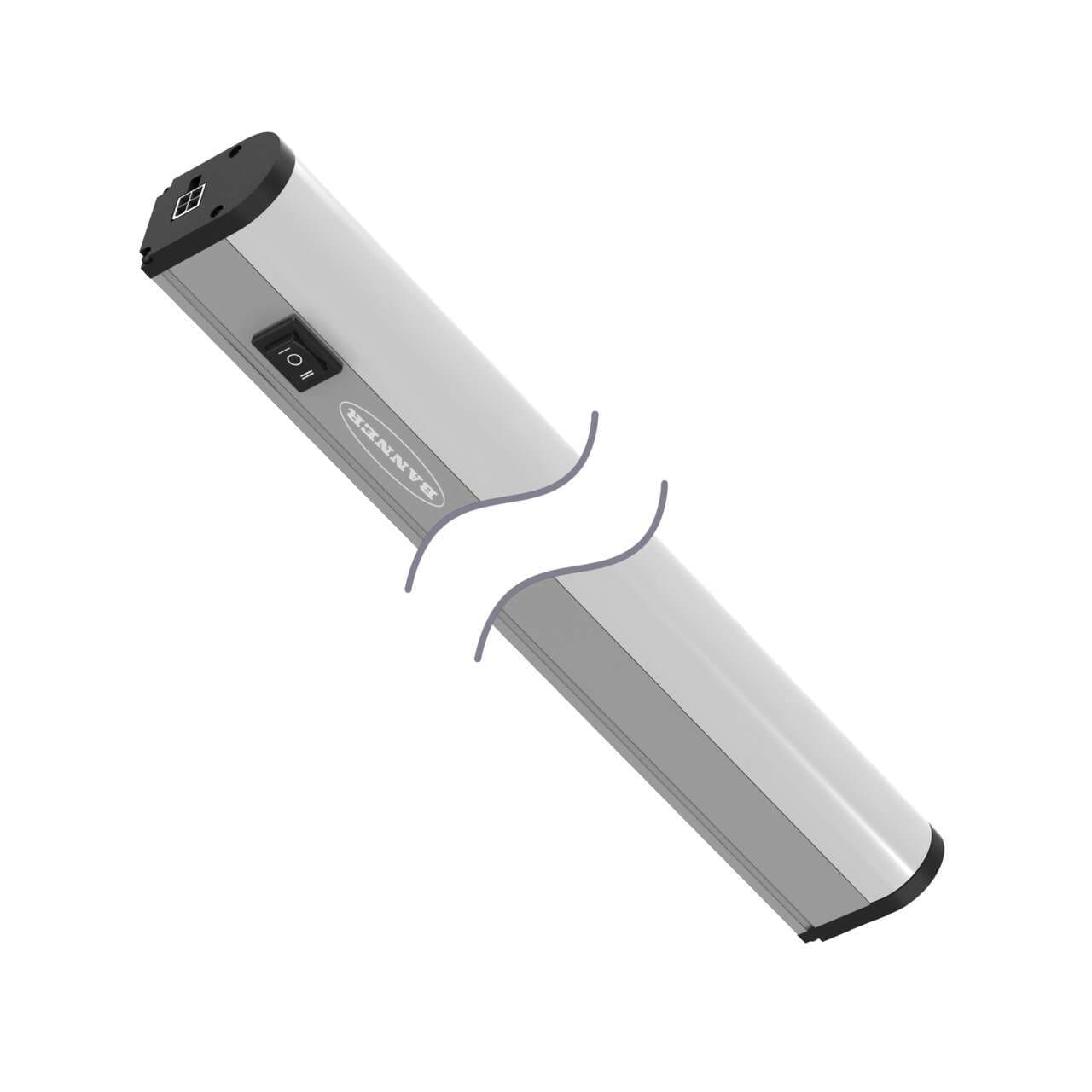

WLB32 Work Light Bar; Switched Hi/Low/Off; Length: 285 mm; Voltage: 90-264 V ac; Environmental Rating: IP50; Color: White; Cascadable; QD - Includes Type N Power cord; Diffuse window

About the manufacturer: Banner is one of the manufacturers that offers Light Bars that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the WLB32ZC285PBQMN Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    997.9024 g
  • Country Of Origin
    MX
  • Modbus RTU
    No
  • Wireless
    No
  • Feature: Quick Disconnect
    Yes
  • Pro-Editor Compatible (Discrete)
    No
  • Feature: Cascade
    Yes
  • IO Link
    No
  • Feature: Audible
    No
  • Feature: Chemical Resistant
    No
  • Feature: Hazardous Area
    No
  • Illuminated Length (LxWxH mm)
    285.0
  • Illumination Switch Function
    I=Low; O=OFF; II=High
  • Primary Window Material
    Polycarbonate Diffused
  • Storage Temp (°C)
    -40 to 70
  • Min Op. Temperature (°C)
    -25
  • Max Op. Temperature (°C)
    45
  • Environmental Rating
    IP50
  • Physical Dimensions (LxWxH or DxH mm)
    298.0 x 32.0 x 46.0
  • Color Option 1
    White
  • Dimming Option
    High-Low-Off
  • Supply Voltage
    90-264 V ac
  • Lumens Color 1
    750
  • Color 1 - Wavelength/Color Temp/Coordinates
    5000K (Daylight)
  • Connection
    Integral QD
  • Number of Input Pins/Conductors
    3
  • Animation Option 1
    Solid On
  • Color Technology
    Standard LED
  • Number of Colors / Segments
    1
  • Mounting Thread
    No Thread
  • Product Size (mm)
    32
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Illumination
    Yes
  • Housing Style
    Linear Strip
  • Primary Housing Material
    Aluminum
  • Power Source
    AC
  • Power
    AC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

WLB32ZC285PBQMN Description

Banner Engineering WLB32ZC285PBQMN is a cascadable industrial LED workstation task light bar designed for a variety of lighting needs. It features a high/low/off switch type and is equipped with a North power cord. This model provides 1-color Daylight White (DW) LED illumination and operates on a supply voltage range of 90Vac-264Vac, accommodating 120Vac, 220Vac, 230Vac, and 240Vac systems. The dimensions of this task light are L285mm x W32mm, and it is constructed with a polycarbonate (PC) diffused window and an aluminium housing for durability. It comes pre-wired with a 1.8m / 5.9ft power cord terminated with a Brazil / South Africa plug, making it suitable for use in those regions. The linear lighting shape of this product is designed to fit a variety of spaces, and it offers a degree of protection rated at IP50. It is capable of operating in ambient air temperatures ranging from -25°C to +45°C. The WLB32ZC285PBQMN includes 1 x digital input (100-240Vac) for color control, consumes 125mA of current, and delivers a luminous flux of 750 lm (lumens).

Related documents WLB32ZC285PBQMN Specs

WLB32ZC285PBQMN 176314.pdf

Manufacturer warranty
