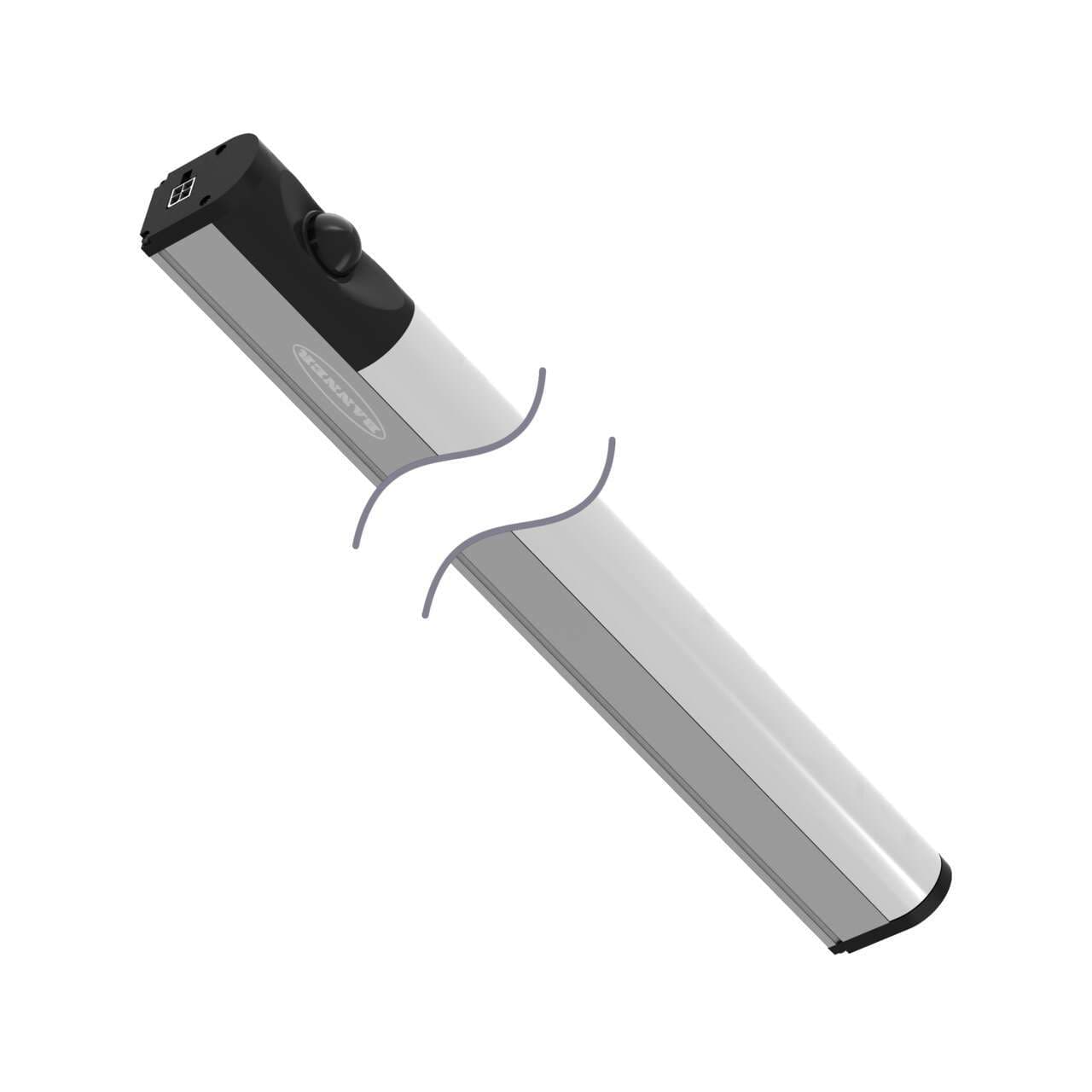

WLB32ZC285MQM Banner Light Bars

Banner WLB32ZC285MQM WLB32 Work Light Bar; Motion Sensor; Length: 285 mm; Voltage: 90-264 V ac; Environmental Rating: IP50; Color: White; Cascadable; QD - No Power cord; Diffuse window
Banner

Part#:WLB32ZC285MQM

Manufacturer:Banner

Alt. Part#:97309

Product Lifecycle:Active

Get a quick Quote!

WLB32 Work Light Bar; Motion Sensor; Length: 285 mm; Voltage: 90-264 V ac; Environmental Rating: IP50; Color: White; Cascadable; QD - No Power cord; Diffuse window

About the manufacturer: Banner is one of the manufacturers that offers Light Bars that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the WLB32ZC285MQM Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    544.3104 g
  • Country Of Origin
    MX
  • Pro-Editor Compatible (Discrete)
    No
  • Wireless
    No
  • Modbus RTU
    No
  • IO Link
    No
  • Feature: Quick Disconnect
    Yes
  • Feature: Cascade
    Yes
  • Feature: Hazardous Area
    No
  • Feature: Chemical Resistant
    No
  • Storage Temp (°C)
    -40 to 70
  • Feature: Audible
    No
  • Illumination Switch Function
    Motion Activated
  • Primary Window Material
    Polycarbonate Diffused
  • Min Op. Temperature (°C)
    -25
  • Max Op. Temperature (°C)
    45
  • Environmental Rating
    IP50
  • Supply Voltage
    90-264 V ac
  • Number of Input Pins/Conductors
    3
  • Illuminated Length (LxWxH mm)
    285.0
  • Color 1 - Wavelength/Color Temp/Coordinates
    5000K (Daylight)
  • Connection
    Integral QD
  • Lumens Color 1
    750
  • Animation Option 1
    Solid On
  • Physical Dimensions (LxWxH or DxH mm)
    368.0 x 32.0 x 50.1
  • Color Option 1
    White
  • Color Technology
    Standard LED
  • Product Size (mm)
    32
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Mounting Thread
    No Thread
  • Illumination
    Yes
  • Primary Housing Material
    Aluminum
  • Power Source
    AC
  • Power
    AC
  • Housing Style
    Linear Strip
  • Number of Colors / Segments
    1

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

WLB32ZC285MQM Description

Banner Engineering WLB32ZC285MQM is a cascadable industrial LED workstation light bar designed for task lighting. It features motion sensing and provides 1-color Daylight White (DW) LED illumination. This product operates on a supply voltage range of 90Vac-264Vac, accommodating 120Vac, 220Vac, 230Vac, and 240Vac inputs. The dimensions of this light bar are L285mm x W32mm, with a construction that includes a polycarbonate (PC) diffused window and an aluminium housing, ensuring durability and a degree of protection rated at IP50. It is designed for linear lighting applications and comes pre-equipped with a plug-in connector for easy installation. The WLB32ZC285MQM can operate in ambient air temperatures ranging from -25°C to +45°C. It features 1 x digital input (100-240Vac) for color control, consumes 125mA of current, and delivers a luminous flux of 750 lm (lumens).

Related documents WLB32ZC285MQM Specs

WLB32ZC285MQM 176314.pdf
