WLB32ZC285EMQMB Banner Light Bars

Name: WLB32ZC285EMQMB
Brand: Banner
Price: 149 USD
Availability: BackOrder

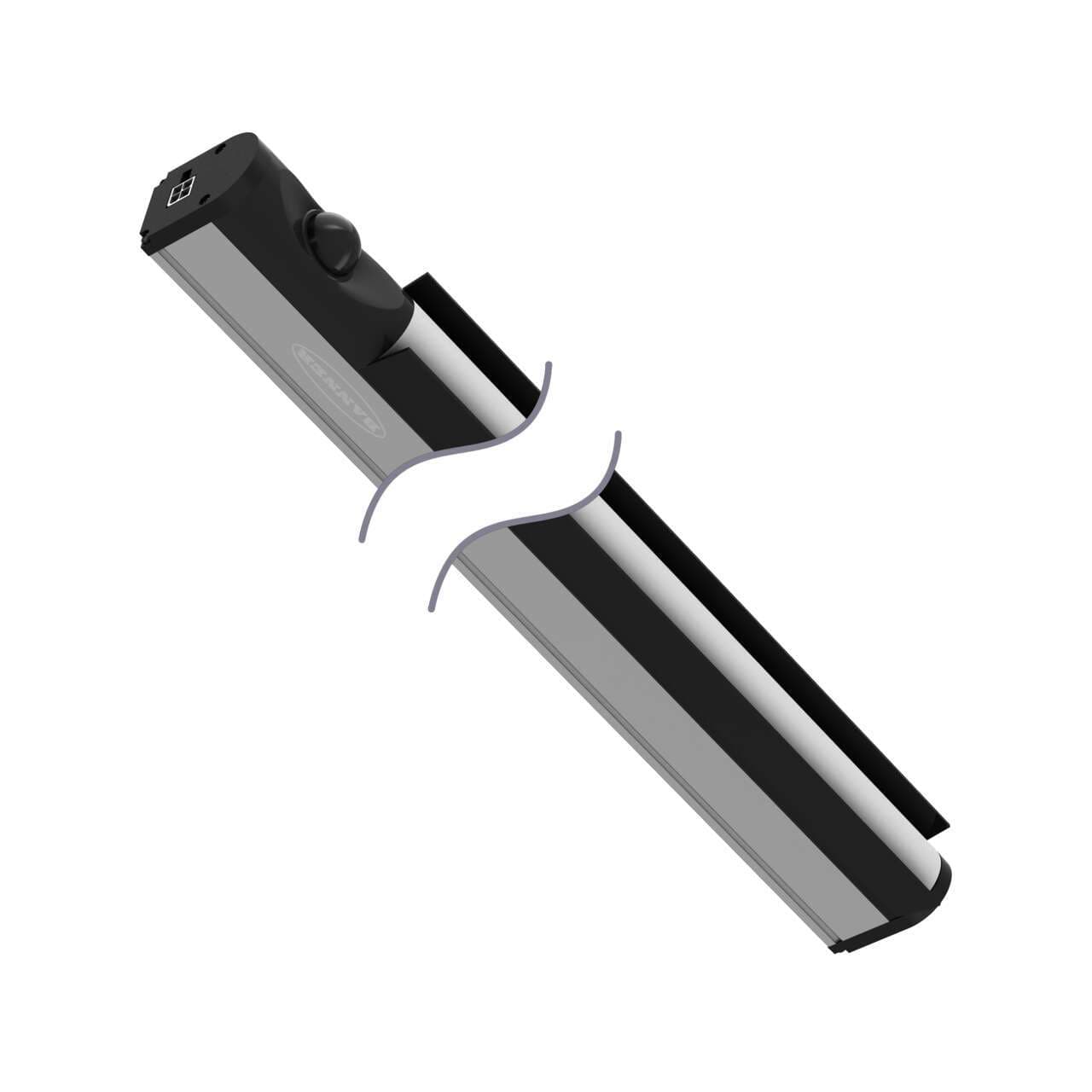

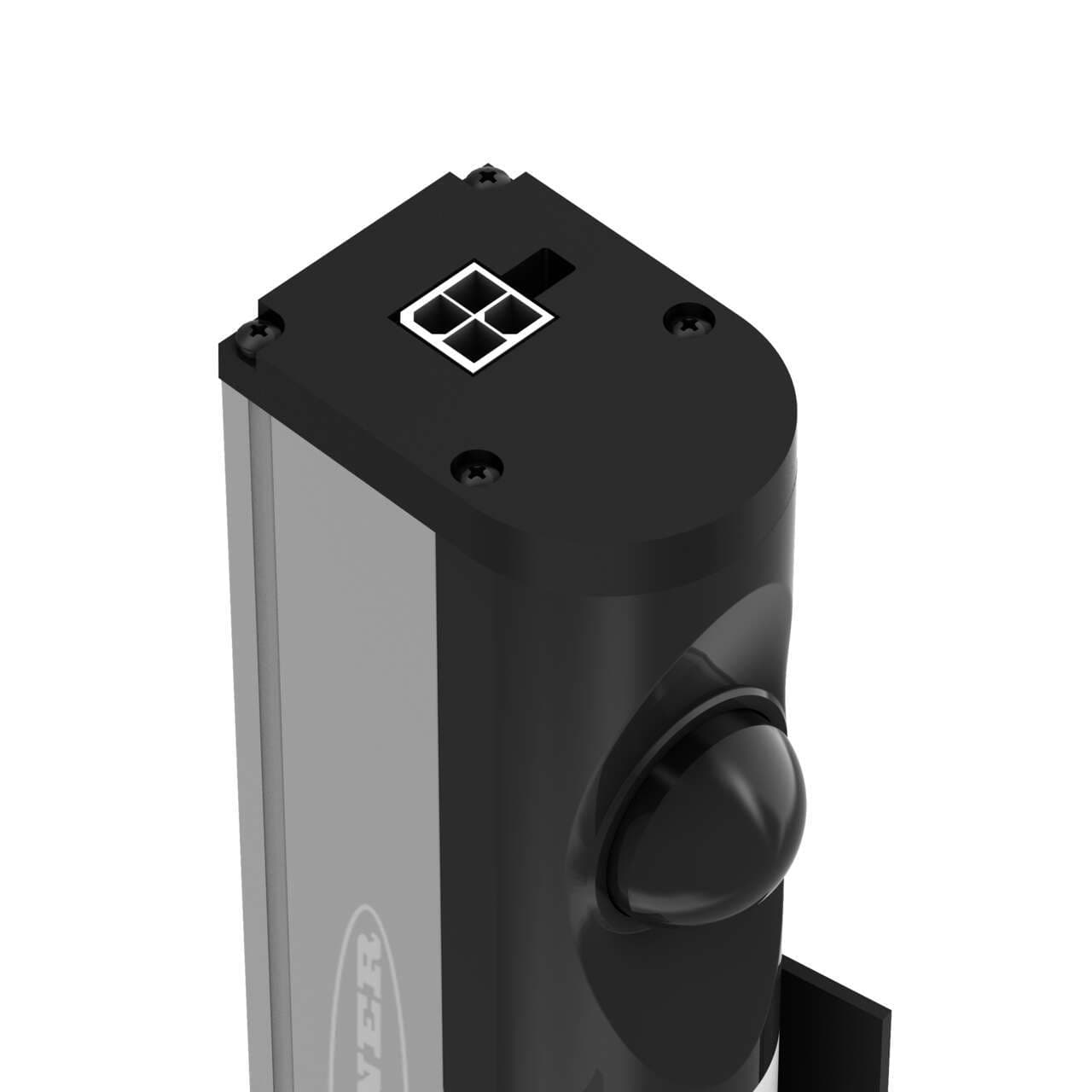

Banner WLB32ZC285EMQMB WLB32 Work Light Bar; Motion Sensor; Length: 285 mm; Voltage: 90-264 V ac; Environmental Rating: IP50; Color: White; Cascadable; Eye Shield; QD - Includes Type B Power Cord; Diffuse window

Part#:WLB32ZC285EMQMB

Manufacturer:Banner

Alt. Part#:800351

Product Lifecycle:Active

Get a quick Quote!

WLB32 Work Light Bar; Motion Sensor; Length: 285 mm; Voltage: 90-264 V ac; Environmental Rating: IP50; Color: White; Cascadable; Eye Shield; QD - Includes Type B Power Cord; Diffuse window

About the manufacturer: Banner is one of the manufacturers that offers Light Bars that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the WLB32ZC285EMQMB Banner price in the box on the right side or send a quick quote.

Product Details

Weight
544.3104 g
Country Of Origin
MX
IO Link
No
Pro-Editor Compatible (Discrete)
No
Modbus RTU
No
Feature: Quick Disconnect
Yes
Feature: Chemical Resistant
No
Feature: Hazardous Area
No
Illumination Switch Function
Motion Activated
Physical Dimensions (LxWxH or DxH mm)
368.0 x 38.3 x 50.1
Environmental Rating
IP50
Feature: Cascade
Yes
Feature: Audible
No
Wireless
No
Primary Window Material
Polycarbonate Diffused
Storage Temp (°C)
-40 to 70
Min Op. Temperature (°C)
-25
Eye Shield
Yes
Max Op. Temperature (°C)
45
Illuminated Length (LxWxH mm)
285.0

Supply Voltage

90-264 V ac

Number of Input Pins/Conductors

Max Current Color (mA)

125

Connection

Integral QD

Color Option 1

White

Color 1 - Wavelength/Color Temp/Coordinates

5000K (Daylight)

Lumens Color 1

750

Animation Option 1

Solid On

Color Technology

Standard LED

Power Source

Primary Housing Material

Aluminum

Power

Color Input Control

Individual (One wire/color, same number of colors as input wires)

Number of Colors / Segments

Housing Style

Linear Strip

Illumination

Yes

Mounting Thread

No Thread

Product Size (mm)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

WLB32ZC285EMQMB Description

Banner Engineering WLB32ZC285EMQMB is a cascadable industrial LED workstation light bar designed with motion sensing and equipped with a type B power cord and eye shield. It features 1-color Daylight White (DW) LED illumination and operates on a supply voltage of 90Vac-264Vac, accommodating 120Vac, 220Vac, 230Vac, and 240Vac. The dimensions of this product are L285mm x W32mm, and it is constructed with a polycarbonate (PC) diffused window and an aluminium housing. It comes pre-wired with a 1.8m / 5.9ft power cord terminated with a plug suitable for North & Central America, Japan, and Taiwan. This linear lighting solution has an IP50 degree of protection and can operate in ambient air temperatures ranging from -25°C to +45°C. It includes 1 x digital input (100-240Vac) for color control, has a current consumption of 125mA, and provides a luminous flux of 750 lm (lumens).

$149.00

Request a quote, and we will send availability within minutes.

Select Qty:

$149.00

$149.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
