WLB32C850EMQ Banner Light Bars

WLB32C850EMQ on Powermatic Associates
Banner

Part#:WLB32C850EMQ

Manufacturer:Banner

Alt. Part#:97830

Product Lifecycle:Active

Get a quick Quote!

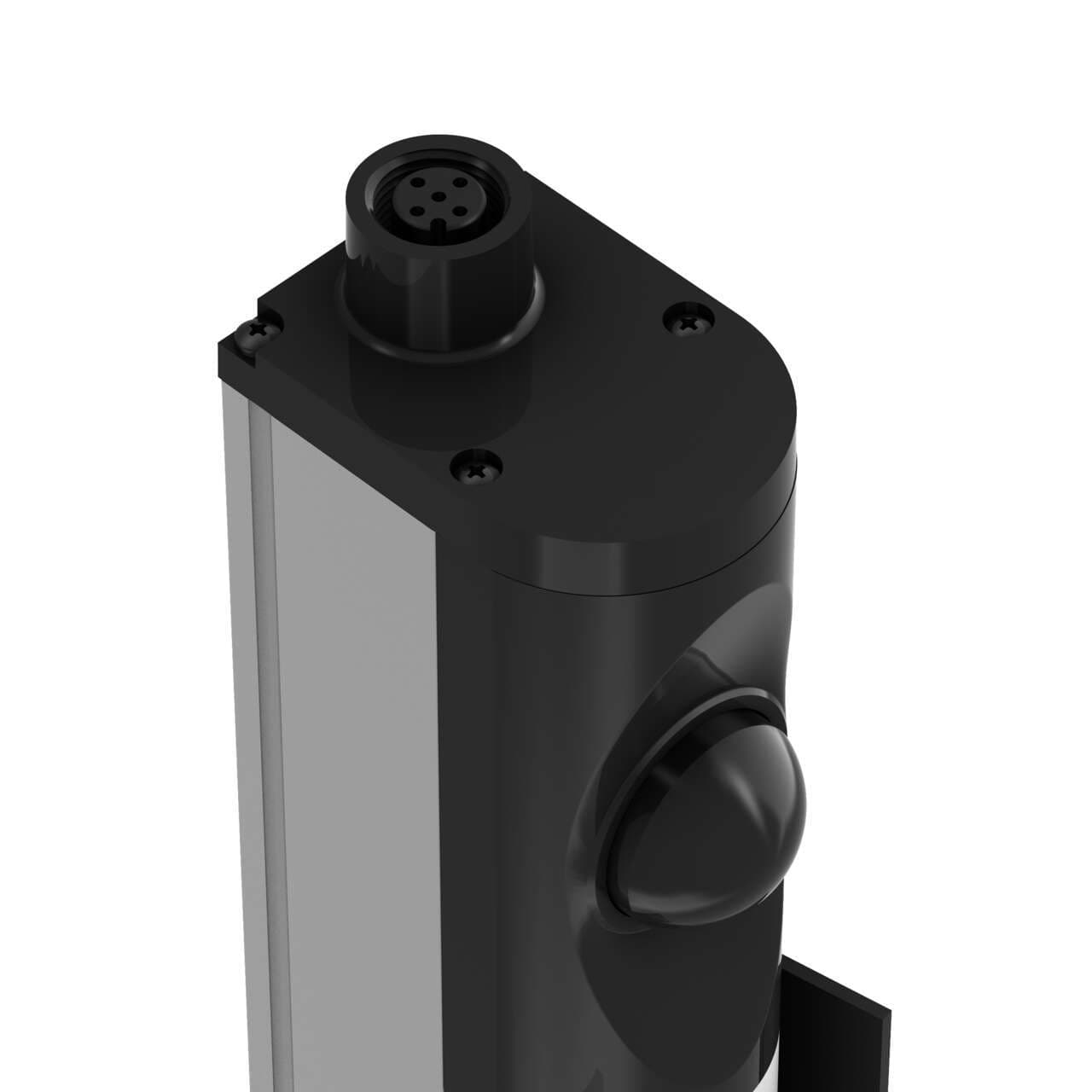

WLB32 Work Light Bar; Motion Sensor; Length: 850 mm; Voltage: 12-30 V dc; Environmental Rating: IP50; Color: White; Cascadable; Eye Shield; M12 Integral QD - No Power cord; Diffuse window

About the manufacturer: Banner is one of the manufacturers that offers Light Bars that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the WLB32C850EMQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    952.5432 g
  • Country Of Origin
    MX
  • Pro-Editor Compatible (Discrete)
    No
  • Modbus RTU
    No
  • IO Link
    No
  • Primary Window Material
    Polycarbonate Diffused
  • Illumination Switch Function
    Motion Activated
  • Physical Dimensions (LxWxH or DxH mm)
    954.0 x 38.3 x 50.2
  • Wireless
    No
  • Feature: Quick Disconnect
    Yes
  • Feature: Chemical Resistant
    No
  • Feature: Cascade
    Yes
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Storage Temp (°C)
    -40 to 70
  • Max Op. Temperature (°C)
    70
  • Min Op. Temperature (°C)
    -40
  • Eye Shield
    Yes
  • Illuminated Length (LxWxH mm)
    850.0
  • Environmental Rating
    IP50
  • Supply Voltage
    12-30 V dc
  • Number of Input Pins/Conductors
    4
  • Color 1 - Wavelength/Color Temp/Coordinates
    5000K (Daylight)
  • Quick Disconnect Type
    M12 (Euro)
  • Max Current Color (mA)
    2400
  • Lumens Color 1
    2250
  • Color Option 1
    White
  • Connection
    Integral QD
  • Animation Option 1
    Solid On
  • Color Technology
    Standard LED
  • Product Size (mm)
    32
  • Number of Colors / Segments
    1
  • Housing Style
    Linear Strip
  • Power Source
    DC
  • Mounting Thread
    No Thread
  • Primary Housing Material
    Aluminum
  • Power
    DC
  • Illumination
    Yes
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

WLB32C850EMQ Description

Banner Engineering WLB32C850EMQ is a cascadable industrial LED workstation light bar designed with a motion-sensing eye shield for 1-color Daylight White (DW) LED illumination. It operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. The dimensions of this task light are L850mm x W32mm, featuring a polycarbonate (PC) diffused window and an aluminium housing for durability. It comes pre-equipped with a 4-pin M12 Euro-style QD connector for easy connection. The linear lighting shape of the WLB32C850EMQ is designed to provide optimal illumination with a luminous flux of 2250 lm. It has a degree of protection of IP50, making it suitable for use in environments with an ambient air temperature range of -40°C to +70°C. Additionally, it includes 1 x digital input (12Vdc / 24Vdc) for color control and has a current consumption of 2.4A.

Related documents WLB32C850EMQ Specs

WLB32C850EMQ 176313.pdf
