Powermatic Associates Logo

WLB32C285EPB Banner Light Bars

WLB32C285EPB on Powermatic Associates
Banner

Part#:WLB32C285EPB

Manufacturer:Banner

Alt. Part#:97824

Product Lifecycle:Active

Get a quick Quote!

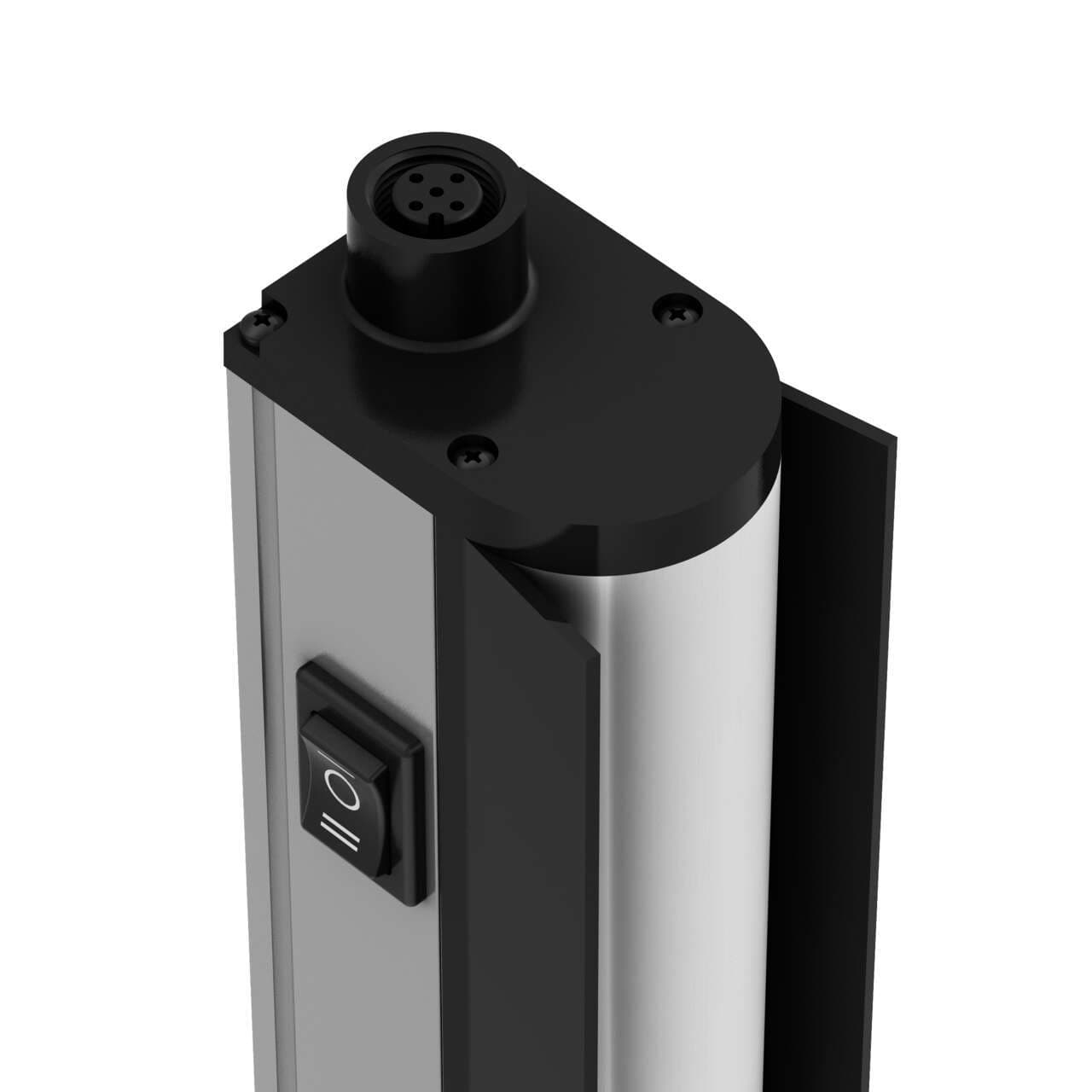

WLB32 Work Light Bar; Switched Hi/Low/Off; Length: 285 mm; Voltage: 12-30 V dc; Environmental Rating: IP40; Color: White; Cascadable; Eye Shield; 2 m (6.5 ft) Integral Cable; Diffuse window

About the manufacturer: Banner is one of the manufacturers that offers Light Bars that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the WLB32C285EPB Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    317.5144 g
  • Country Of Origin
    MX
  • Pro-Editor Compatible (Discrete)
    No
  • Wireless
    No
  • IO Link
    No
  • Modbus RTU
    No
  • Feature: Quick Disconnect
    No
  • Feature: Chemical Resistant
    No
  • Feature: Cascade
    Yes
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Environmental Rating
    IP50
  • Primary Window Material
    Polycarbonate Diffused
  • Storage Temp (°C)
    -40 to 70
  • Min Op. Temperature (°C)
    -40
  • Physical Dimensions (LxWxH or DxH mm)
    313.0 x 38.3 x 48.0
  • Max Op. Temperature (°C)
    70
  • Illuminated Length (LxWxH mm)
    285.0
  • Eye Shield
    Yes
  • Illumination Switch Function
    I=Low; O=OFF; II=High
  • Number of Input Pins/Conductors
    2
  • Supply Voltage
    12-30 V dc
  • Max Current Color (mA)
    800
  • Connection
    Cable
  • Dimming Option
    High-Low-Off
  • Color 1 - Wavelength/Color Temp/Coordinates
    5000K (Daylight)
  • Lumens Color 1
    750
  • Color Option 1
    White
  • Product Size (mm)
    32
  • Animation Option 1
    Solid On
  • Color Technology
    Standard LED
  • Illumination
    Yes
  • Power Source
    DC
  • Power
    DC
  • Number of Colors / Segments
    1
  • Primary Housing Material
    Aluminum
  • Mounting Thread
    No Thread
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Housing Style
    Linear Strip
  • Cable Length (m)
    2

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

WLB32C285EPB Description

Banner Engineering WLB32C285EPB is a cascadable industrial LED workstation task light bar designed for a variety of lighting needs. It features a high/low/off switch, an eye shield, and provides 1-color Daylight White (DW) LED illumination. This task light operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. It measures 285mm in length and 32mm in width, constructed with a polycarbonate (PC) diffused window and an aluminium housing for durability. The WLB32C285EPB is pre-wired with a 2-meter (approximately 6.5 feet) 2-wire cable that terminates with bare end flying leads for easy installation. Its linear shape is designed to fit a variety of spaces, and it offers a degree of protection rated at IP50, making it suitable for environments where dust protection is necessary. The task light can operate within an ambient air temperature range of -40°C to +70°C. It includes 1 digital input (12Vdc / 24Vdc) for color control, consumes 800mA of current, and delivers a luminous flux of 750 lumens.

Related documents WLB32C285EPB Specs

WLB32C285EPB 176313.pdf

Manufacturer warranty

$108.00

Request a quote, and we will send availability within minutes.

Select Qty:

$108.00

$108.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
