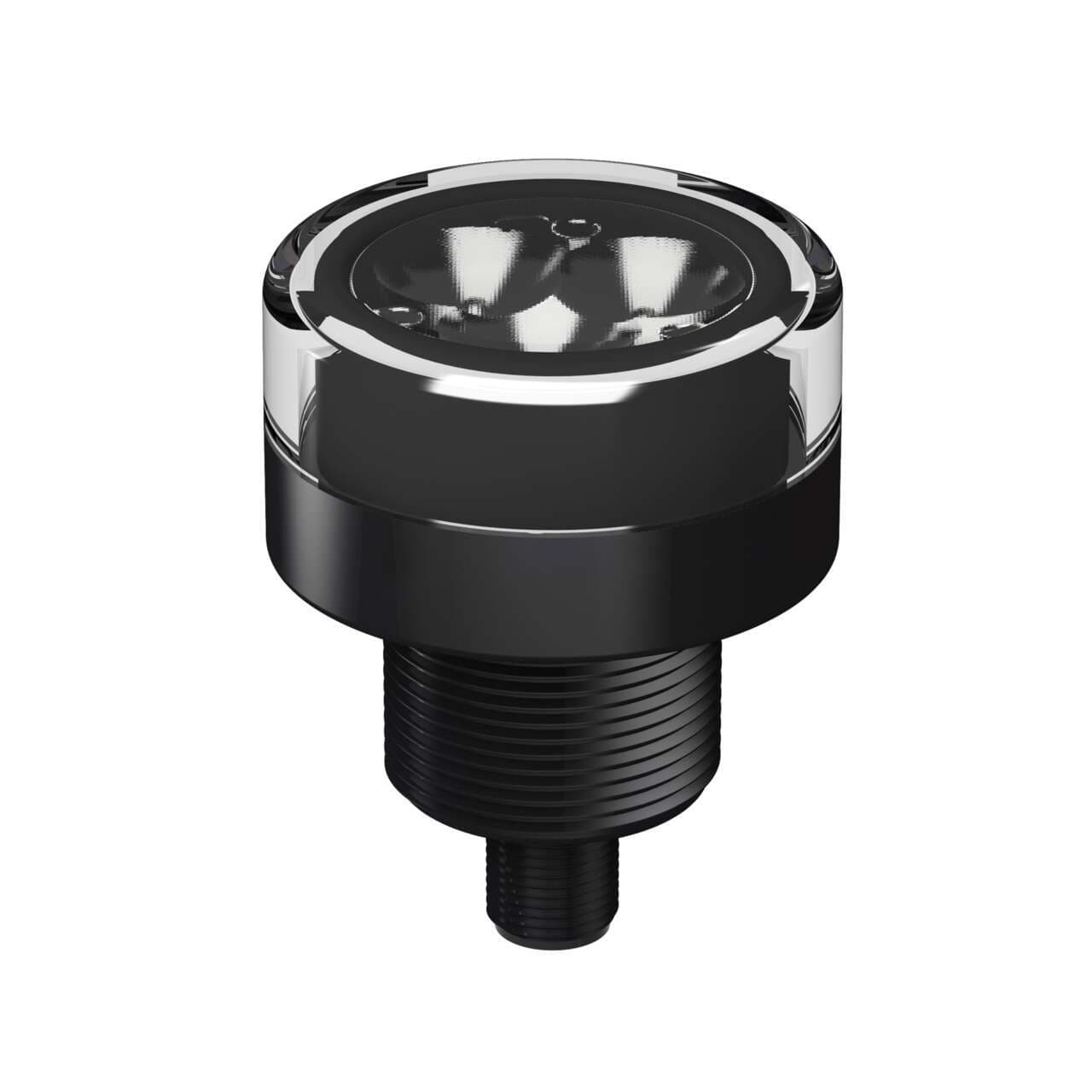

WL50SRL5Q Banner Light Bars

Product Details

• Weight
  161.02516 g
• Country Of Origin
  MX
• Pro-Editor Compatible (Discrete)
  No
• Wireless
  No
• IO Link
  No
• Modbus RTU
  No
• Feature: Chemical Resistant
  No
• Feature: Audible
  No
• Feature: Hazardous Area
  No
• Feature: Washdown Rated
  Yes
• Primary Window Material
  Polycarbonate Clear
• Lens Focusing Angle (°)/Field of View
  5
• Primary Housing Color
  Black
• Storage Temp (°C)
  -40 to 70
• Min Op. Temperature (°C)
  -20
• Max Op. Temperature (°C)
  50
• Environmental Rating
  IP67; IP69
• Max Op. Relative Humidity Non-Condensing (%)
  95% @ 50°C
• Physical Dimensions (LxWxH or DxH mm)
  50.0 x 65.8
• Supply Voltage
  12-30 V dc
Color 1 - Wavelength/Color Temp/Coordinates
625 nm
Number of Input Pins/Conductors
5
Quick Disconnect Type
M12 (Euro)
Lumens Color 1
110
Connection
Integral QD
Color Option 1
Red
Animation Option 1
Solid On
Color Technology
Standard LED
Number of Colors / Segments
1
Illumination
Yes
Color Input Control
Individual (One wire/color, same number of colors as input wires)
Power Source
DC
Primary Housing Material
Aluminum
Product Size (mm)
50
Mounting Thread
M30 x 1.5
Housing Style
Base Mount - Flat Window
Power
DC
