Powermatic Associates Logo

WL50-2Q Banner Electronic Components

WL50-2Q on Powermatic Associates
Banner

Part#:WL50-2Q

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

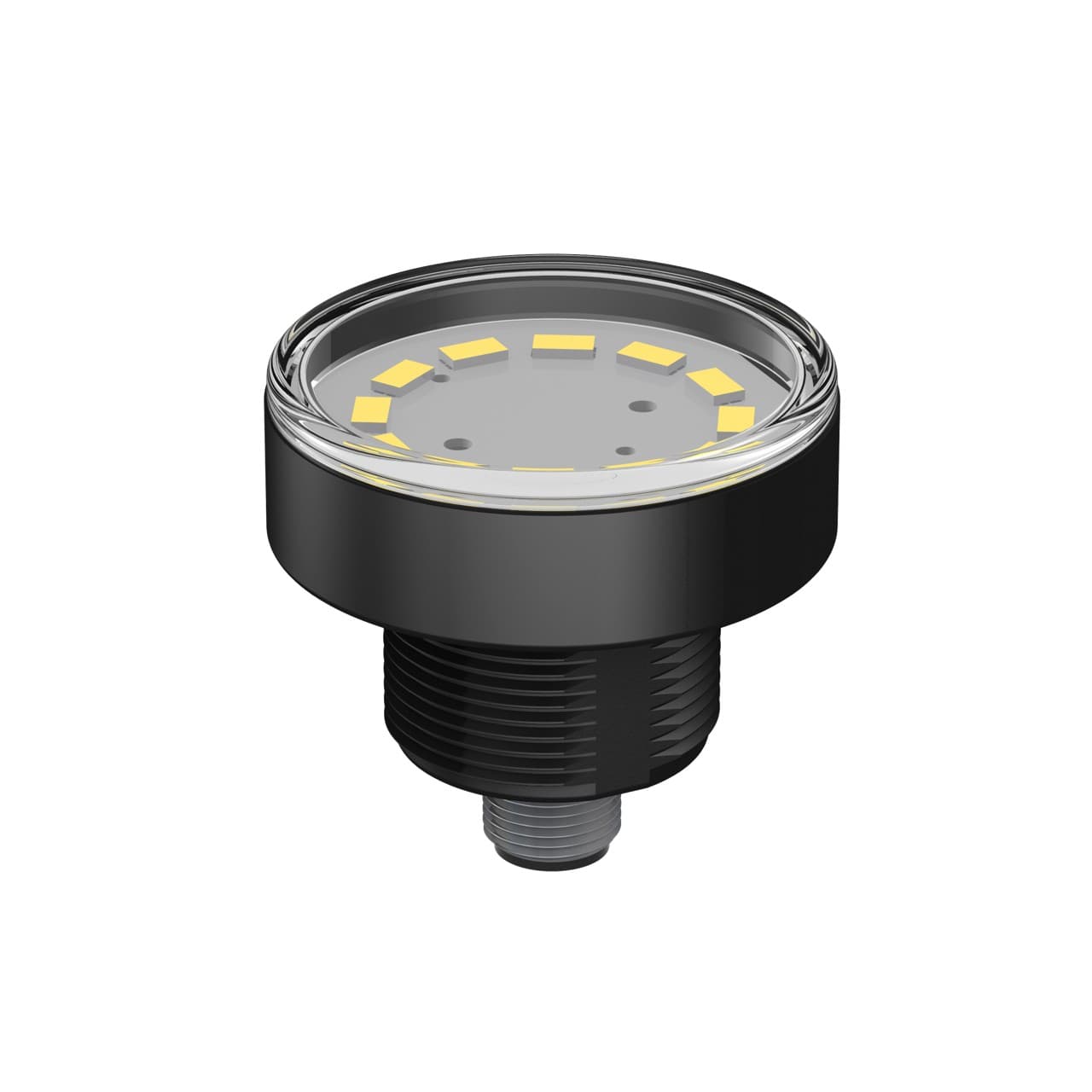

WL50-2 Work Light, Voltage: 12-30Vdc; Environmental Rating: IP69K, Color: White, K50 base, M30, Euro 4-Pin Integral Connector

Product Details

  • Pro-Editor Compatible (Discrete)
    No
  • Wireless
    No
  • Modbus RTU
    No
  • IO Link
    No
  • Feature: Washdown Rated
    Yes
  • Feature: Quick Disconnect
    Yes
  • Feature: Audible
    No
  • Feature: Chemical Resistant
    No
  • Feature: Hazardous Area
    No
  • Primary Window Material
    Polycarbonate Clear
  • Primary Housing Color
    Black
  • Storage Temp (°C)
    -40 to 70
  • Min Op. Temperature (°C)
    -40
  • Max Op. Temperature (°C)
    50
  • Supply Voltage
    12-30 V dc
  • Color 1 - Wavelength/Color Temp/Coordinates
    6500K (Cool)
  • Number of Input Pins/Conductors
    4
  • Environmental Rating
    IP67; IP69
  • Lumens Color 1
    185
  • Connection
    Integral QD
  • Quick Disconnect Type
    M12 (Euro)
  • Physical Dimensions (LxWxH or DxH mm)
    50.0 x 47.5
  • Animation Option 1
    Solid On
  • Color Option 1
    White
  • Color Technology
    Standard LED
  • Number of Colors / Segments
    1
  • Primary Housing Material
    Polycarbonate
  • Illumination
    Yes
  • Power Source
    DC
  • Product Size (mm)
    50
  • Housing Style
    Base Mount - Flat Window
  • Power
    DC
  • Cable Length (m)
    2
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Mounting Thread
    M30 x 1.5

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
