VE205G1A Banner Vision Sensors

Name: VE205G1A
Brand: Banner
Price: 5618 USD
Availability: BackOrder

Part#:VE205G1A

Manufacturer:Banner

Alt. Part#:803203

Product Lifecycle:Active

Get a quick Quote!

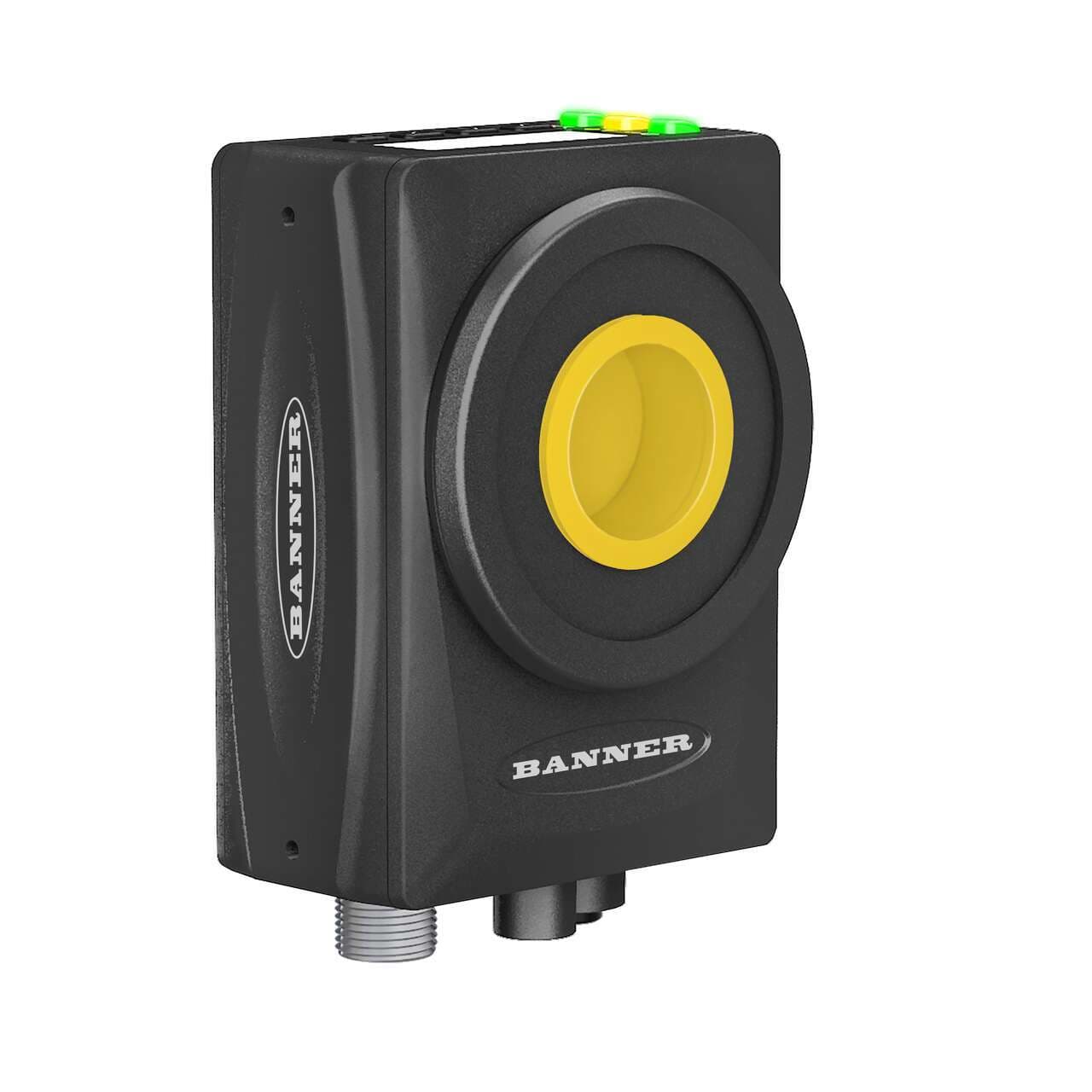

VE Series Smart Camera for Vision; Pixels: 2592 x 2048; I/O: 6 Optically Isolated; Requires 1 MQDC2S-12XX and 1 STP-M12-8XX Cable; and 1 C-mount Lens

About the manufacturer: Banner is one of the manufacturers that offers Vision Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the VE205G1A Banner price in the box on the right side or send a quick quote.

Product Details

Weight
589.6696 g
Country Of Origin
CN
RS-232
Yes
PROFINET
Yes
RS-422
No
FTP
Yes
Lens (mm)
C-Mount
Feature: Washdown Rated
Yes
Primary Housing Material
Aluminum
Common Ethernet Protocol
No
PCCC
Yes
Modbus/TCP
Yes
EtherNet/IP
Yes
Feature: PC Interface
Yes
Imager Type
Grayscale
IP Rating
IP67
USB
No
Image Resolution
2592 x 2048 pixels
Camera Housing Size (HxWxL mm)
88 x 67 x 41
Device Type
Vision

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

VE205G1A Description

Banner Engineering VE205G1A is a digital industrial vision camera with a 5Mpixel resolution, housed in an aluminium casing for durability. It offers a degree of protection rated at IP67, making it suitable for operation in environments with temperatures ranging from 0 to +50 °C. This camera is designed for C-mount installation and features 5 digital outputs (PNP/NPN transistor), along with 1 digital input (trigger input). It supports multiple communication protocols, including Ethernet/IP, Modbus TCP, RS-232, and PROFINET, ensuring versatile connectivity options. The VE205G1A is equipped with a 12-pin Euro-style M12 male connector for power supply, a 3-pin M8 female connector for light, and an 8-pin Euro-style M12 female connector (D-coded) for Ethernet connections. It operates with a refresh rate of 22fps and has dimensions of 67 mm in width, 41 mm in depth, and 66 mm in height. The camera's memory capacity is 500MB for program storage, and it requires a supply voltage of 12Vdc-30Vdc (24Vdc nom.). Its design incorporates FTP PCCC functionality.

$5,618.00

Request a quote, and we will send availability within minutes.

Select Qty:

$5,618.00

$5,618.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
