VE202G1A Banner Vision Sensors

VE202G1A on Powermatic Associates
Banner

Part#:VE202G1A

Manufacturer:Banner

Alt. Part#:94843

Product Lifecycle:Active

Get a quick Quote!

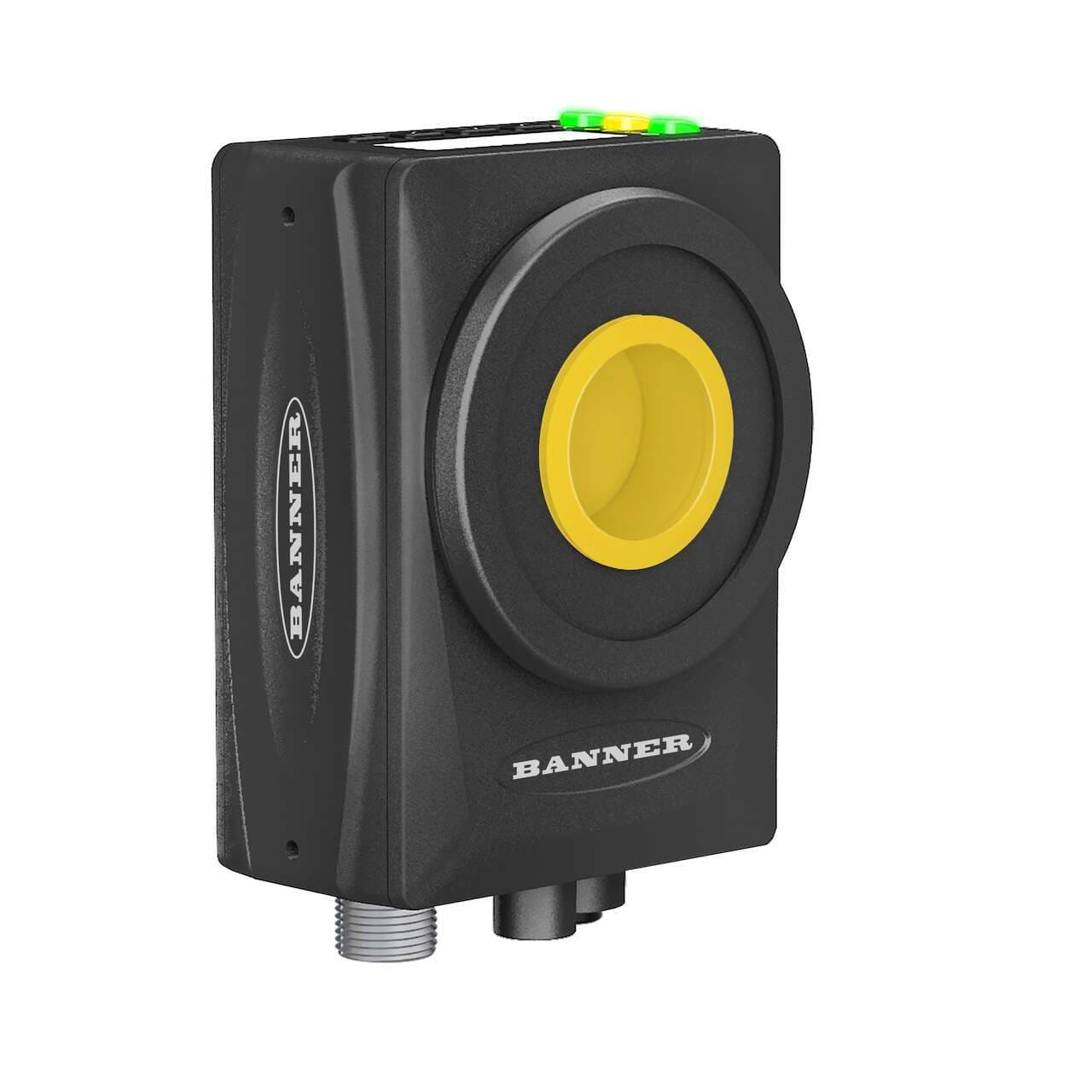

VE Series Smart Camera for Vision; Pixels: 1600 x 1200; I/O: 6 Optically Isolated; Requires 1 MQDC2S-12XX and 1 STP-M12-8XX Cable; and 1 C-mount Lens

About the manufacturer: Banner is one of the manufacturers that offers Vision Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the VE202G1A Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    571.52592 g
  • Country Of Origin
    CN
  • Imager Type
    Grayscale
  • Feature: Washdown Rated
    Yes
  • FTP
    Yes
  • USB
    No
  • RS-422
    No
  • RS-232
    Yes
  • PCCC
    Yes
  • Lens (mm)
    C-Mount
  • PROFINET
    Yes
  • Image Resolution
    1600 x 1200 pixels
  • Modbus/TCP
    Yes
  • EtherNet/IP
    Yes
  • Common Ethernet Protocol
    No
  • Camera Housing Size (HxWxL mm)
    88 x 67 x 41
  • IP Rating
    IP67
  • Primary Housing Material
    Aluminum
  • Device Type
    Vision
  • Feature: PC Interface
    Yes

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

VE202G1A Description

Banner Engineering VE202G1A is a digital industrial vision camera with a 2Mpixel resolution, housed in an aluminium casing for durability. It offers a degree of protection rated at IP67, making it suitable for operation in environments with temperatures ranging from 0 to +50°C. This camera is designed for C-mount installation and features 5 digital outputs (PNP/NPN transistor), along with 1 digital input (trigger input). It supports multiple communication protocols, including Ethernet/IP, Modbus TCP, RS-232, and PROFINET, ensuring versatile connectivity options. The VE202G1A is equipped with a 12-pin Euro-style M12 male connector for power supply, a 3-pin M8 female connector for light, and an 8-pin Euro-style M12 female connector (D-coded) for Ethernet connections. It boasts a refresh rate of 50fps and has a memory capacity of 500MB for program storage. The camera operates on a supply voltage of 12Vdc-30Vdc (24Vdc nom.) and has dimensions of 67mm in width, 41mm in depth, and 66mm in height.

Related documents VE202G1A Specs

VE202G1A 191667.pdf
