VE200G1A Banner Vision Sensors

VE200G1A on Powermatic Associates
Banner
  • VE200G1A
  • VE200G1A

Part#:VE200G1A

Alt. Part#:800974

Manufacturer:Banner

Category:Vision Sensors

Product Lifecycle:Active

Product description

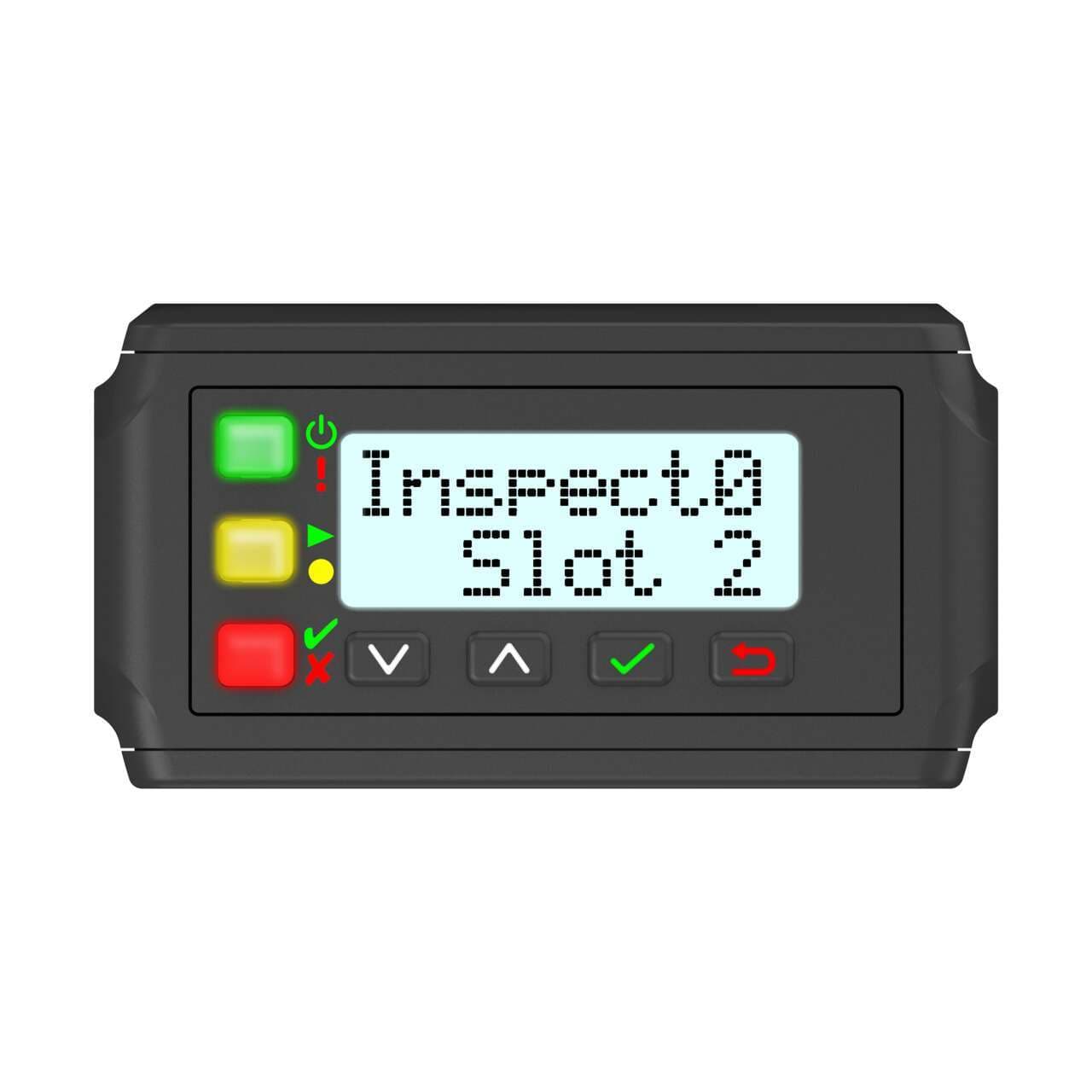

VE Series Smart Camera for Vision; Pixels: 752 x 480; I/O: 6 Optically Isolated; Requires 1 MQDC2S-12XX and 1 STP-M12-8XX Cable; and 1 C-mount Lens

Product Details

  • Weight
    571.52592 g
  • Country Of Origin
    US
  • RS-422
    No
  • Modbus/TCP
    Yes
  • FTP
    Yes
  • RS-232
    Yes
  • PROFINET
    Yes
  • PCCC
    Yes
  • Common Ethernet Protocol
    No
  • Feature: PC Interface
    Yes
  • Image Resolution
    752 x 480 pixels
  • Primary Housing Material
    Aluminum
  • Feature: Washdown Rated
    Yes
  • EtherNet/IP
    Yes
  • Device Type
    Vision
  • Lens (mm)
    C-Mount
  • IP Rating
    IP67
  • USB
    No
  • Camera Housing Size (HxWxL mm)
    88 x 67 x 41
  • Imager Type
    Grayscale

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of VE200G1A on Powermatic Associates is $2,610.00. Order now.

About the product

Banner Engineering VE200G1A is a digital industrial vision camera designed with an aluminium housing and offers a degree of protection rated at IP67, making it suitable for challenging environments. It operates within an ambient air temperature range of 0 to +50 °C and is mounted using a C-mount. This camera features 5 x digital outputs (PNP/NPN transistor), 1 x digital input (trigger input), and supports multiple communication protocols including Ethernet/IP, Modbus TCP, RS-232, and PROFINET. It is pre-equipped with a 12-pin Euro-style M12 male connector for power supply, a 3-pin M8 female connector for light, and an 8-pin Euro-style M12 female connector (D-coded) for Ethernet connections. The VE200G1A boasts a refresh rate of 60fps, dimensions of 67 mm in width, 41 mm in depth, and 66 mm in height, and a memory capacity of 500MB for program storage. It requires a supply voltage of 12Vdc-30Vdc (24Vdc nom.) and is designed following the FTP PCCC design. This camera offers a resolution of 0.36Mpixel / WVGA for industrial vision applications.

VE200G1A Related Documents

191667.pdf
