TL50PC1UQP Banner Signal Towers

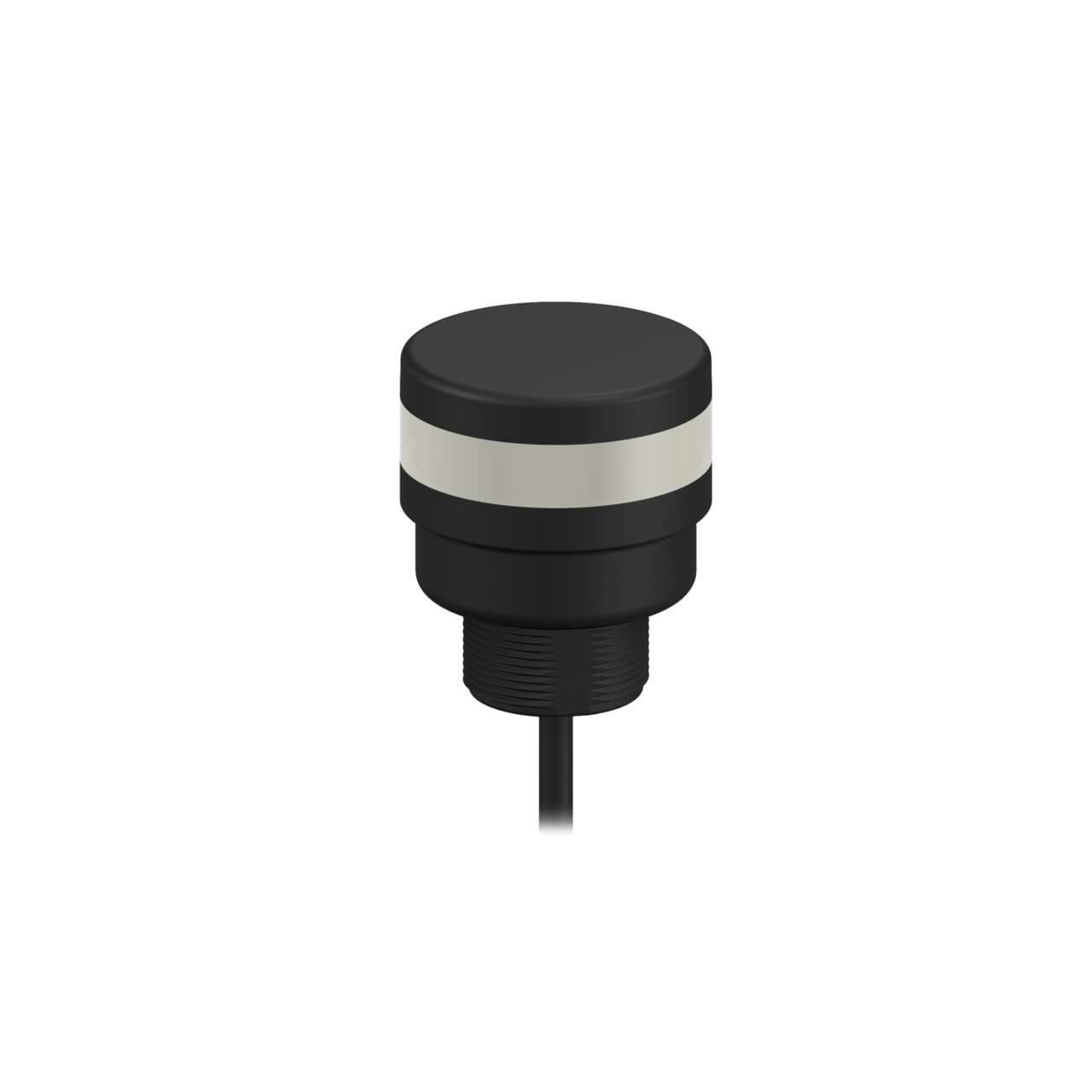

Banner TL50PC1UQP TL50 Pro Tower Light with USB; 1 Segment; Voltage: 5 V dc; Environ. Rating: IP67; Compact Black Housing; Colors: Multicolor; USB Type A 2 m (79 in) PVC Pigtail QD
Banner

Part#:TL50PC1UQP

Manufacturer:Banner

Alt. Part#:809982

Product Lifecycle:Active

Get a quick Quote!

TL50 Pro Tower Light with USB; 1 Segment; Voltage: 5 V dc; Environ. Rating: IP67; Compact Black Housing; Colors: Multicolor; USB Type A 2 m (79 in) PVC Pigtail QD

About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the TL50PC1UQP Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    183.70476 g
  • Country Of Origin
    US
  • Wireless
    No
  • Pro-Editor Compatible (Discrete)
    No
  • Modbus RTU
    No
  • IO Link
    No
  • Feature: Quick Disconnect
    Yes
  • Feature: Audible
    No
  • Min Op. Temperature (°C)
    -40
  • Feature: Hazardous Area
    No
  • Primary Window Material
    Polycarbonate Diffused
  • Primary Housing Color
    Black
  • Multi-Color Device
    Simultaneous Colors On
  • Feature: Chemical Resistant
    No
  • Max Op. Temperature (°C)
    50
  • Max Op. Relative Humidity Non-Condensing (%)
    95% @ 50°C
  • NEMA Type and UL Type Rating
    NEMA and UL 13
  • Environmental Rating
    IP67
  • Physical Dimensions (LxWxH or DxH mm)
    50.0 x 73.6
  • Input Type
    Communication Protocol
  • Max Input Response Time (ms)
    20
  • Supply Voltage
    5 V dc
  • Number of Input Pins/Conductors
    4
  • Color Option 1
    RGB
  • Dimming Option
    Programmable
  • Max Current Color (mA)
    100
  • USB
    Yes
  • Color Technology
    RGB Configurable
  • Number of Tower Light Segments
    1
  • Animation Option 1
    Programmable
  • Product Size (mm)
    50
  • Connection
    Pigtail QD
  • Mounting Thread
    M30 x 1.5
  • Housing Style
    Base Mount - Tower
  • Power Source
    DC
  • Number of Colors / Segments
    1
  • Color Input Control
    Communication Protocol
  • Primary Housing Material
    ABS
  • Power
    DC
  • Indication
    Yes
  • Cable Length (m)
    2

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

TL50PC1UQP Description

TL50 Pro Tower Light with USB; 1 Segment, Voltage: 5 V dc; Environ. Rating: IP67, Compact Black Housing; Colors: Multicolor, USB Type A 2 m (79in) PVC Pigtail Connector

Related documents TL50PC1UQP Specs

TL50PC1UQP 217569.pdf
