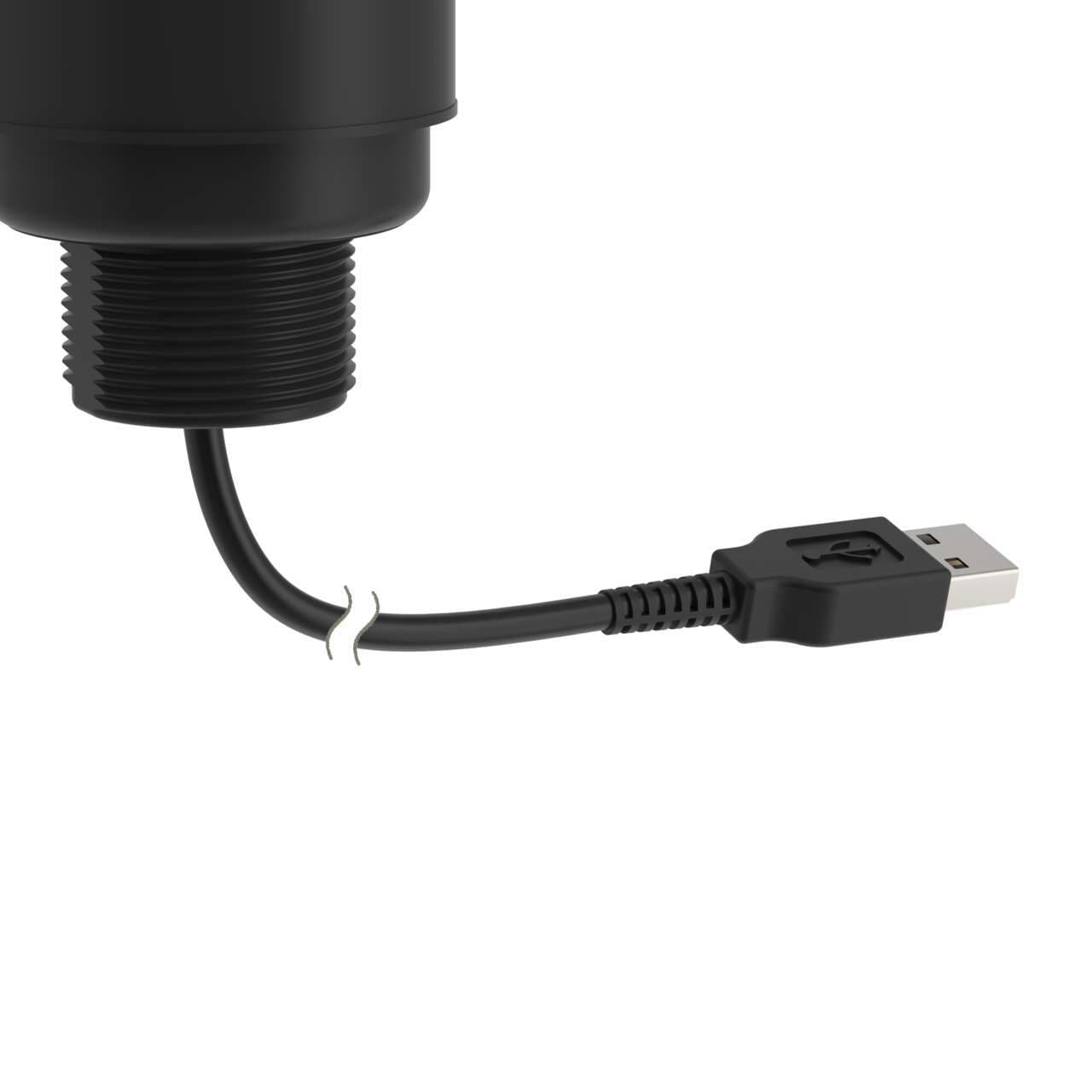

TL50PBL1UQP Banner Signal Towers

Product Details

• Weight
  183.251168 g
• Country Of Origin
  US
• Pro-Editor Compatible (Discrete)
  No
• Modbus RTU
  No
• Wireless
  No
• IO Link
  No
• Max Op. Relative Humidity Non-Condensing (%)
  95% @ 50°C
• Primary Housing Color
  Black
• Feature: Chemical Resistant
  No
• Feature: Audible
  No
• Feature: Quick Disconnect
  Yes
• Multi-Color Device
  Simultaneous Colors On
• Indication Intensity
  High Brightness & Daylight Visible
• Feature: Hazardous Area
  No
• Primary Window Material
  Polycarbonate Clear
• NEMA Type and UL Type Rating
  NEMA and UL 13
• Min Op. Temperature (°C)
  -40
• Max Op. Temperature (°C)
  50
• Input Type
  Communication Protocol
• Max Input Response Time (ms)
  20
Physical Dimensions (LxWxH or DxH mm)
50.0 x 73.6
Environmental Rating
IP67
USB
Yes
Connection
Pigtail QD
Dimming Option
Programmable
Supply Voltage
5 V dc
Animation Option 1
Programmable
Number of Input Pins/Conductors
4
Max Current Color (mA)
100
Product Size (mm)
50
Color Option 1
RGB
Number of Tower Light Segments
1
Color Technology
RGB Configurable
Power Source
DC
Primary Housing Material
ABS
Color Input Control
Communication Protocol
Number of Colors / Segments
1
Mounting Thread
M30 x 1.5
Indication
Yes
Cable Length (m)
2
Power
DC
Housing Style
Base Mount - Tower
