T30UINA W/30 Banner Ultrasonic Sensors
Part#:T30UINA W/30
Alt. Part#:55979
Manufacturer:Banner
Category:Ultrasonic Sensors
Product Lifecycle:Active
Product description
Analog/Discrete T30U Series: Proximity Mode; Range: 150 mm - 1 m; Input: 12-24 V dc; Outputs: Discrete: NPN; Analog: 4-20 mA; 9 m (30 ft) Cable
Product Details
- Weight 662.24432 g
- Country Of Origin CN
- Profibus No
- Wireless No
- 1-wire Serial Interface No
- SSI No
- RS-485 No
- RS-422 No
- RS-232 No
- PROFINET No
- IO Link No
- Common Ethernet Protocol No
- Application: Ultrasonic Yes
- Feature: Chemical Resistant No
- Feature: Timing (Hold/Delay) No
- Feature: Clear Object Detection Yes
- Feature: Remote Teach Yes
- Supply Protection Circuitry Protected against reverse polarity and transient overvoltages
- Power/Current Consumption (exclusive of load) 90 mA
- Ultrasonic Frequency (kHz) 228
- Max Off-state Leakage Current (µA) 10
- Discrete Output Hysteresis (mm) 2.5
- Remote Teach and Laser Control Input Impedence 55 kΩ
- Barrel Diameter (mm) 30
- Minimum Window Size (mm) 10
- Analog Linearity (mm) +/- 0.5% of full-scale span
- Minimum Response Time (ms) 48
- Warm-up Time (minutes) 15
- Min Operating Temperature (°C) -20
- Max Op. Relative Humidity Non-Condensing (%) 100
- Max Operating Temperature (°C) 70
- NEMA Rating NEMA 6P
- Discrete (Switched) Outputs 1 NPN
- IP Rating IP67
- Output Protection Protected against false pulse on power-up and continuous overload or short-circuit of outputs
- Max Discrete (Switched) Output (mA) 100
- Analog Current Output Rating 1 Ω to [(Vcc-7 V)/0.02 A] Ω
- Mechanical Shock IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
- Output Saturation Voltage NPN Outputs < 1.0 V at 10 mA ; < 1.5 V at 100 mA
- Vibration MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
- Adjustments Teach Button
- Temperature Effect (mm/°C) 0.2% of sensing distance/°C
- Number of Pins 5
- Power Supply 12-24 V dc
- Analog Output Configuration 4-20 mA
- Minimum Sensing Distance (mm) 150
- Analog Resolution/Discrete Repeatability +/- 0.25% of measured distance (0.5 min)
- Max Sensing Distance (mm) 1000
- Quick Disconnect Type No QD
- Connection Flying Leads
- Input/Output Analog & Discrete
- Indicator LED(s)
- Primary Housing Material PBT
- PC Configurable No
- Sensing Mode (Detailed) Time of Flight
- Device Type Sensor
- Housing Style Barrel
- Max Measurement Range >500 mm - <=1000 mm
- Sensing Mode (General) Proximity
- Sensing Beam Ultrasonic
- Cable Length (m) 9
- Power DC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T30UINA W/30 on Powermatic Associates is $599.00. Order now.
About the product

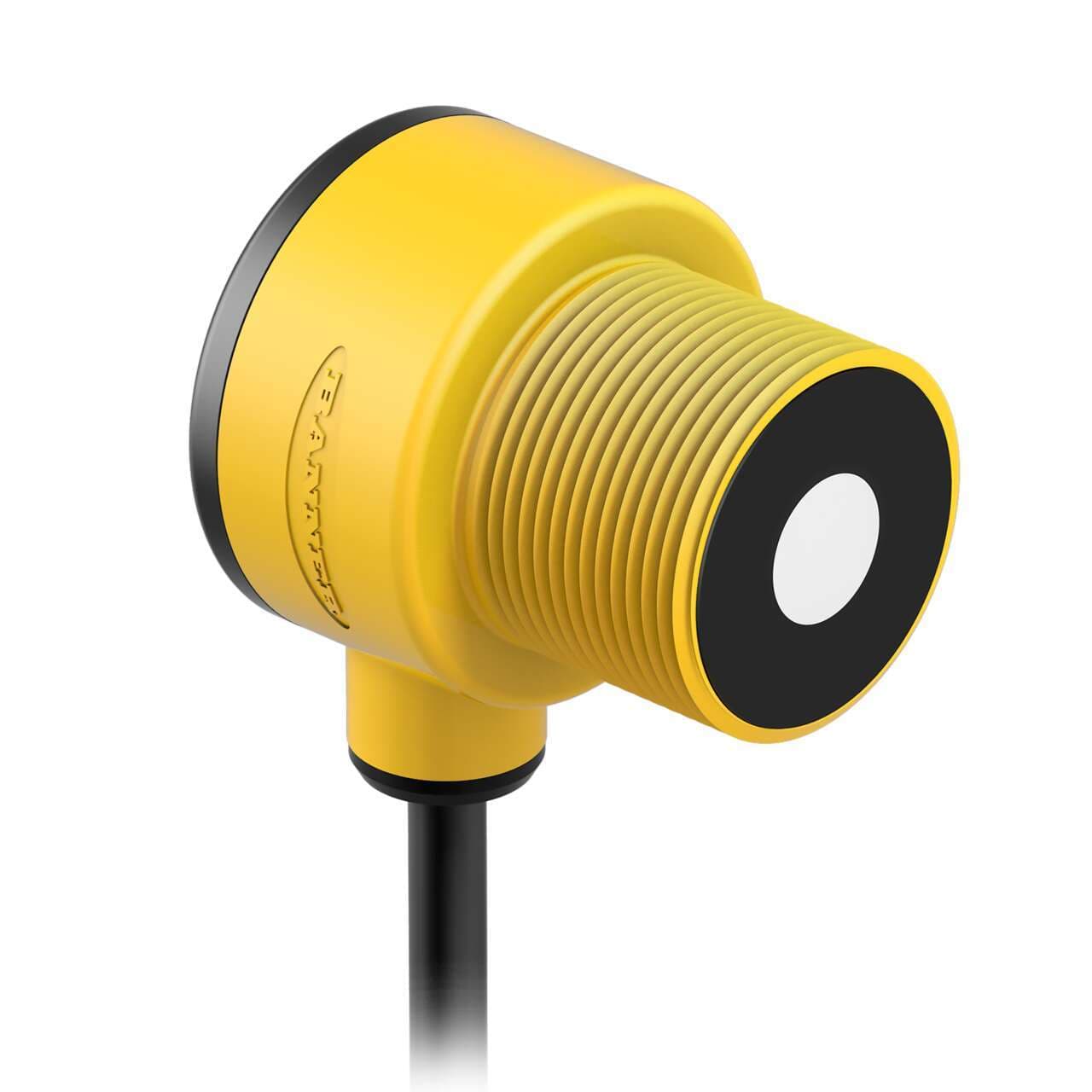

Banner Engineering T30UINA W/30 is an ultrasonic sensor belonging to the T30U analog and discrete output series, designed with a time-of-flight system and TEACH mode for short-range distance sensing and transmitting. This sensor features a thermoplastic housing and is pre-wired with a 30ft / 9m cable that terminates with bare end flying leads. It operates on a supply voltage of 12Vdc-24Vdc and is mounted via a threaded mount. The T30UINA W/30 can operate in ambient air temperatures ranging from -20 to +70°C and is rated with a degree of protection of IP67 NEMA 6P, making it suitable for harsh environments. Its shape is an M30 cylindrical threaded/barrel, and it includes 1 x digital output (NPN transistor) and 1 x analog output (4-20mA) for versatile connectivity. The sensing distance of this sensor ranges from 0.15cm to 1m, with a transmission frequency of 228kHz. It also features protection functions against overload and short-circuit, and has an M30 thread size for mounting.
