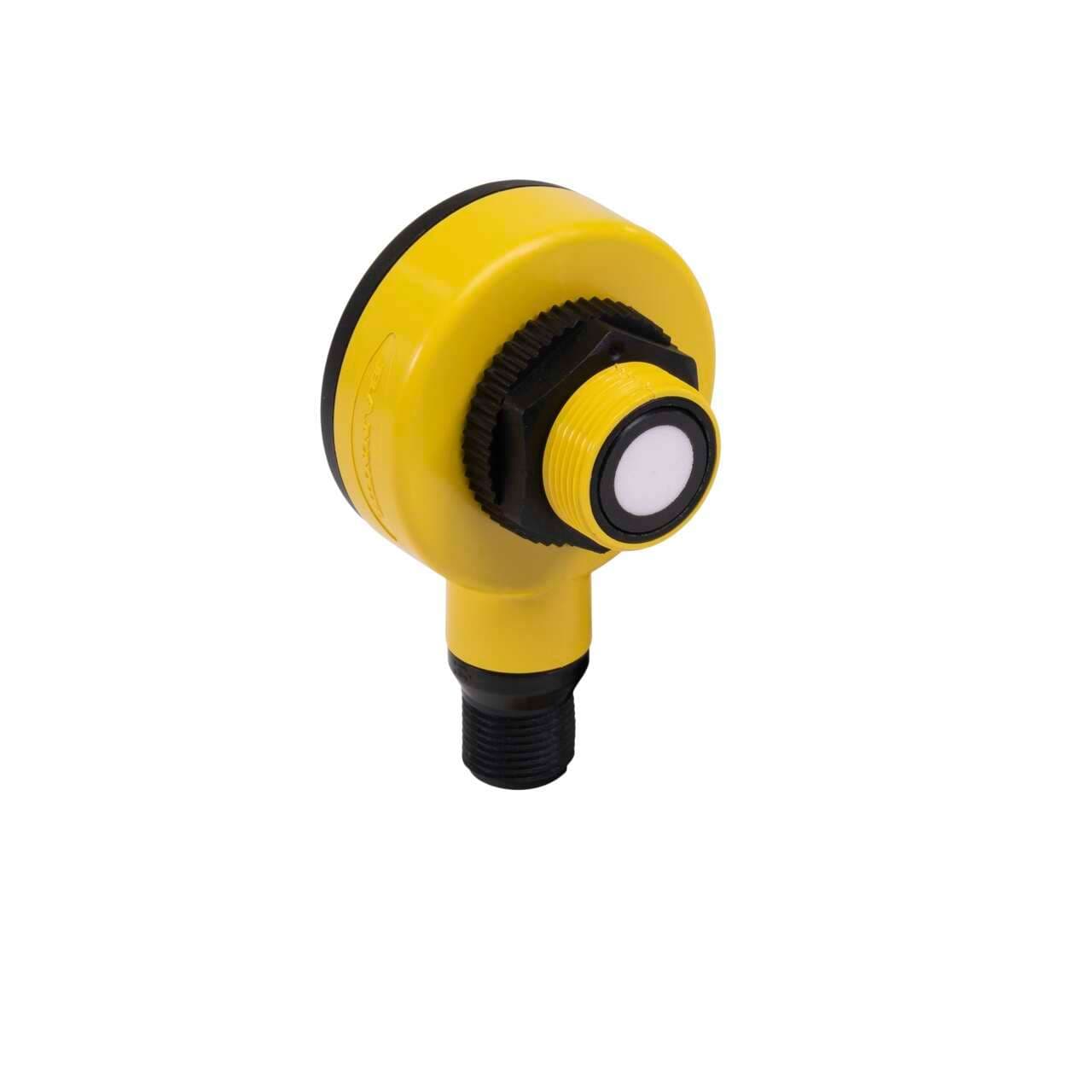

T18VP6UR Banner Ultrasonic Sensors

Product Details

• Weight
  154.22128 g
• Country Of Origin
  MX
• 1-wire Serial Interface
  No
• Power/Current Consumption (exclusive of load)
  35 mA
• Wireless
  No
• RS-485
  No
• Profibus
  No
• SSI
  No
• IO Link
  No
• RS-232
  No
• Application: Ultrasonic
  Yes
• Common Ethernet Protocol
  No
• RS-422
  No
• PROFINET
  No
• Feature: Chemical Resistant
  No
• Barrel Diameter (mm)
  18
• Feature: Timing (Hold/Delay)
  No
• Feature: Clear Object Detection
  Yes
• Minimum Response Time (ms)
  1
• Supply Protection Circuitry
  Protected against reverse polarity and transient overvoltages
Ultrasonic Frequency (kHz)
230
Rep Rate (ms)
Normal Resolution Mode: 8; High Resolution Mode: 5
Max Off-state Leakage Current (µA)
< 1 at 30 V dc
NEMA Rating
NEMA 6P
Min Operating Temperature (°C)
-40
Max Operating Temperature (°C)
70
IP Rating
IP67
Output Protection
Protected against overload and short circuit conditions. No false pulse upon receiver power-up
Mechanical Shock (Additional Comments)
MIL-STD-202G, Meth. 213B, conditions H&I (Shock: 75G with unit operation: 100G for non-operation).
Mechanical Shock
IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Output Saturation Voltage PNP Outputs
< 1.5 V at 10 mA; < 2.0 V at 150 mA
Output Saturation Voltage NPN Outputs
< 1.5 V at 10 mA; < 2.0 V at 150 mA
Discrete (Switched) Outputs
PNP Complementary
Max Discrete (Switched) Output (mA)
150 mA max. (each output) at 25°C, derated to 100 mA at 70°C (derate ≈ 1 mA per °C)
Number of Pins
4
Indicator
LED(s)
Minimum Sensing Distance (mm)
300
Vibration
MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Delay at Power-up (ms)
100
Power Supply
12-30 V dc
Connection
Flying Leads
Quick Disconnect Type
No QD
Max Sensing Distance (mm)
600
Input/Output
Discrete
Primary Housing Material
PBT
Sensing Mode (Detailed)
Receiver
Sensing Beam
Ultrasonic
PC Configurable
No
Power
DC
Housing Style
Rectangular w/M18 Mount
Device Type
Sensor
Max Measurement Range
>500 mm - <=1000 mm
Sensing Mode (General)
Opposed
Cable Length (m)
2
Main function
Sensor (Ultrasonic)
Sensing distance
300...600mm
Operating mode
Complementary outputs
Emission frequency
230kHz
Product series / family name
U-GAGE series
Connection type
Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
Sub-range name
T18U series
Thread size
M18
Digital outputs
1 x digital output (PNP transistor)
Protection functions
Overload Short-circuit
Design
through-beam system / opposed mode
Mounting mode
Threaded mount
Material
thermoplastic housing
Primary brand
Banner Engineering
Supply voltage (DC)
12Vdc-30Vdc (24Vdc nom.)
Functions
Ultrasonic sensor receiver green LED (power ON) yellow LED (signal)
Shape
Rectangular
Ambient air temperature for operation
-40...+70 °C
Degree of protection
IP67 NEMA 6P
Order code / Manufacturer SKU
38510
