SP250GRPQ Banner Signal Beacons
Part#:SP250GRPQ
Alt. Part#:11712
Manufacturer:Banner
Category:Signal Beacons
Product Lifecycle:Active
Product description
EZ-LIGHT Traffic Series: 2-Indicator Daylight Visible; Voltage: 15-30 V dc; Housing: Polycarbonate; IP65; Input: PNP; Colors: Green Red; M12 Integral QD
Product Details
- Weight 589.6696 g
- Country Of Origin US
- Pro-Editor Compatible (Discrete) No
- Application: Traffic Light Yes
- Feature: Quick Disconnect Yes
- Multi-Color Device Simultaneous Colors On
- Modbus RTU No
- Wireless No
- Max Op. Temperature (°C) 50
- IO Link No
- Indication Intensity High Brightness & Daylight Visible
- Feature: Chemical Resistant No
- Physical Dimensions (LxWxH or DxH mm) 192.8 x 87.6 x 109.6
- Min Op. Temperature (°C) -40
- Feature: Audible No
- Environmental Rating IP65
- Feature: Hazardous Area No
- Input Type PNP
- Max Input Response Time (ms) 10
- Supply Voltage 15-30 V dc
- Number of Input Pins/Conductors 4
- Max Current Color (mA) 120
- Lumens Color 2 20.0
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Color Option 2 Red
- Quick Disconnect Type M12 (Euro)
- Color 1 - Wavelength/Color Temp/Coordinates 528 nm
- Lumens Color 1 57.0
- Connection Integral QD
- Animation Option 1 Solid On
- Color Option 1 Green
- Product Size (mm) Other
- Color Technology Standard LED
- Number of Colors / Segments 2
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Mounting Thread No Thread
- Indication Yes
- Power Source DC
- Primary Housing Material Polycarbonate
- Housing Style Flat Mount - Signal Light
- Power DC
- Cable Length (m) 0.1
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SP250GRPQ on Powermatic Associates is $271.00. Order now.
About the product

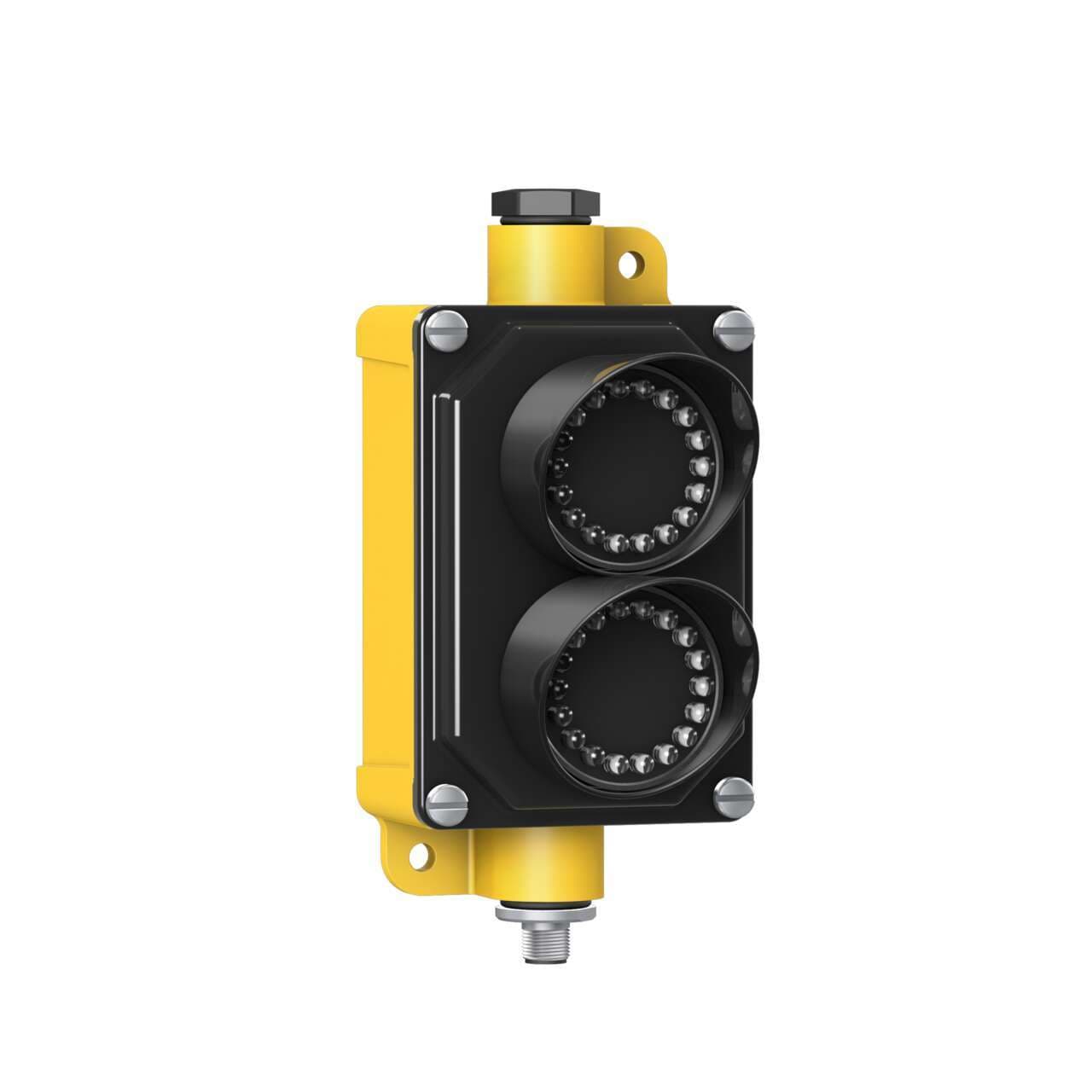

Banner Engineering SP250GRPQ, part of the EZ-LIGHT series, is a traffic light designed with a 2-tiers 2-color G+R color pattern LED illumination. This LED traffic signal light features a polycarbonate (PC) base and is pre-equipped with a 4-pin M12 Euro-style QD connector for connectivity. The housing is black/yellow, and it operates on a supply voltage of 15Vdc-30Vdc (24Vdc nom.). It can be mounted on surfaces or walls and is designed to operate in ambient air temperatures ranging from -40°C to +50°C. The SP250GRPQ offers an IP65 degree of protection, ensuring it is dust-tight and protected against jets of water. It consumes 120mA of current and includes 2 x digital inputs (15-30Vdc; PNP) for color control.
SP250GRPQ Related Documents
This item can ship within 0 day!
Manufacturer warranty
SP250GRPQ Banner
$271.00
Your price can be lower.
Log in or Create account to check your discount
Stock:
Select Qty:
$271.00
$271.00 each
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
About the manufacturer
Powermatic Associates is an authorized Banner distributor, proud to offer an extensive range of Banner's innovative products and solutions. Banner Engineering is a renowned manufacturer specializing in industrial automation, known for their cutting-edge sensor technology, machine safety solutions, wireless connectivity, and LED lighting systems. With a precision focus on delivering high-quality eq...
Recently viewed products
Relevant products
FAQ
What is the price of SP250GRPQ?
Purchase the SP250GRPQ from Powermatic Associates at the price of $271.00. Order today.
Out if stock but available for backorder.
EZ-LIGHT Traffic Series: 2-Indicator Daylight Visible; Voltage: 15-30 V dc; Housing: Polycarbonate; IP65; Input: PNP; Colors: Green Red; M12 Integral QD
