SLM20B6 W/30 Banner Retroreflective Sensors

SLM20B6 W/30 on Powermatic Associates
Banner

Part#:SLM20B6 W/30

Alt. Part#:79219

Manufacturer:Banner

Category:Retroreflective Sensors

Product Lifecycle:Active

Product description

SLM Series: Rugged Nickel-Plated Metal Fixed-Distance Slot Sensor; Slot Width: 20 mm; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 9 m (30 ft) Cable

Product Details

  • Weight
    320.235952 g
  • Country Of Origin
    CN
  • Max Op. Relative Humidity (%)
    95% @ 55°C
  • Minimum Object Detection [mm]
    0.3
  • NEMA Rating
    NEMA 6
  • Operation
    Light/Dark Operate
  • Min Op. Temperature (°C)
    -20
  • Max Op. Temperature (°C)
    60
  • Indicator
    LEDs
  • IP Rating
    IP67
  • Special Feature: Remote Teach
    No
  • Repeatability (µs)
    95
  • Adjustments
    Potentiometer
  • Output response time (ms)
    0.5
  • Lens Material
    Acrylic
  • Delay at Power-up (ms)
    100
  • Power Supply/Supply Voltage
    10-30 V dc
  • Number of Pins
    4
  • Slot Overall Depth (mm)
    52
  • Outputs
    Bipolar (NPN & PNP)
  • Minimum Object Detection (mm)
    .3
  • Primary Housing Material
    Zinc Die-Cast with Nickel-Plating
  • Max Sensing Range (mm)
    20
  • Quick Disconnect Type
    No QD
  • Slot Depth/Array Length (mm)
    60.8
  • Power
    DC
  • Housing Style
    Slot
  • Connection
    Cable
  • Sensing Mode (Detailed)
    Emitter/Receiver Pair
  • Cable Length (m)
    9

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLM20B6 W/30 on Powermatic Associates is $231.00. Order now.

About the product

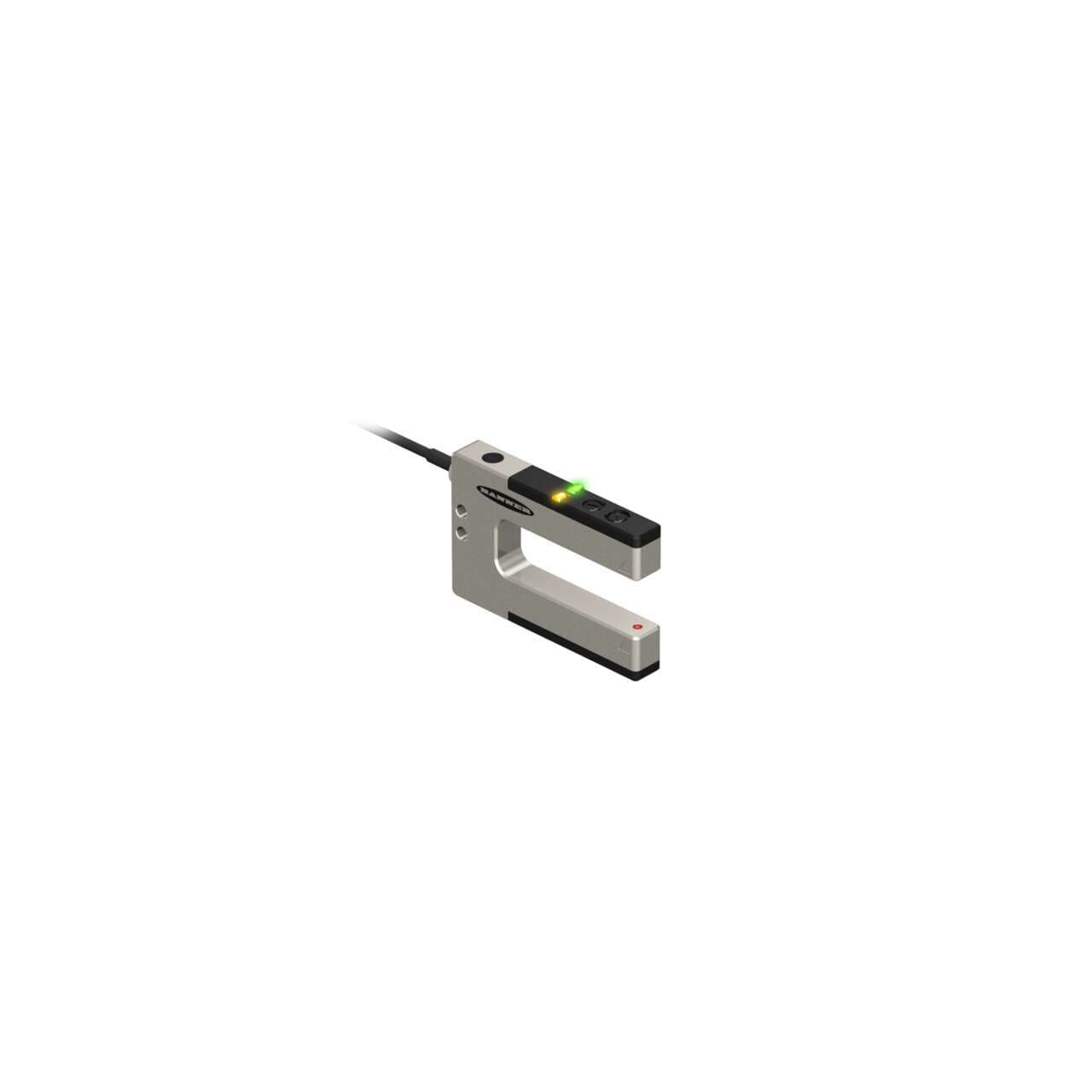

Banner Engineering SLM20B6 W/30 is a photo-electric rugged metal slot/optical fork sensor designed for a variety of detection applications. This sensor features a green LED to indicate power ON and a yellow LED to display the output state, along with a potentiometer for adjustment. It is constructed from nickel-plated die-cast zinc with an acrylic lens, ensuring durability. The sensor is pre-wired with a 30ft / 9m cable that terminates with bare end flying leads for easy installation. It operates on a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. The SLM20B6 W/30 can function within an ambient air temperature range of -20 to +60°C and offers a degree of protection rated at IP67 NEMA 6, making it suitable for harsh environments. Its slot shape has a passageway width of 20 mm and an overall width of 52 mm, with a height of 80 mm and a depth of 12 mm. This sensor includes one digital output (PNP/NPN transistor) and boasts a quick response time of 0.5ms / 0.0005 s. It supports both Light-ON and Dark-ON operating modes for versatile application.

SLM20B6 W/30 Related Documents
