SL30VB6V Banner Retroreflective Sensors

SL30VB6V on Powermatic Associates
Banner

Part#:SL30VB6V

Alt. Part#:56565

Manufacturer:Banner

Category:Retroreflective Sensors

Product Lifecycle:Active

Product description

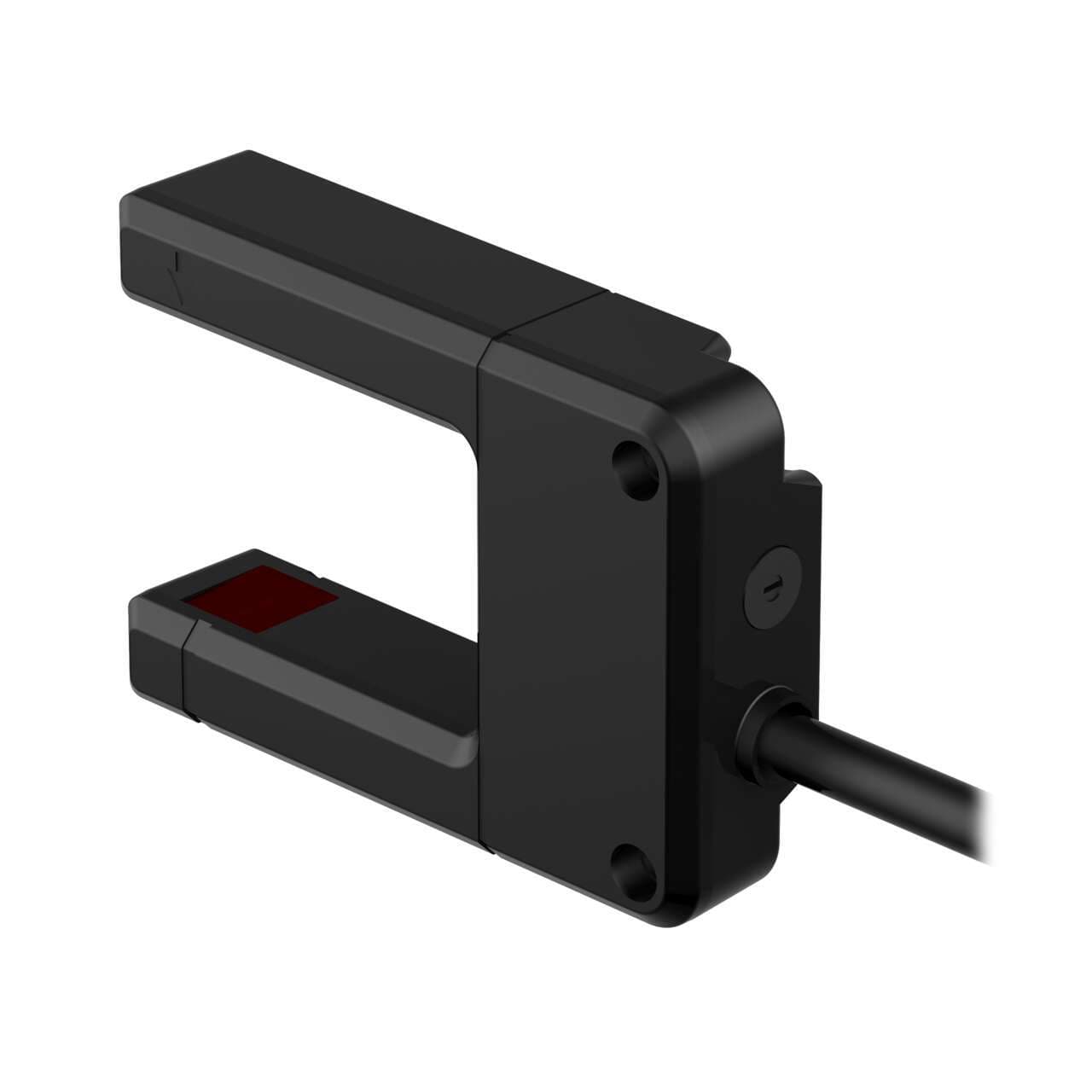

SL Series: Slot Sensor; Slot width: 30 mm; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 2 m (6.5 ft) cable

Product Details

  • Weight
    172.36496 g
  • Country Of Origin
    CN
  • Minimum Object Detection [mm]
    2
  • IP Rating
    IP67
  • NEMA Rating
    NEMA 6
  • Lens Material
    Acrylic
  • Max Op. Relative Humidity (%)
    90% @ 50°C
  • Special Feature: Remote Teach
    No
  • Min Op. Temperature (°C)
    -40
  • Max Op. Temperature (°C)
    70
  • Operation
    Light/Dark Operate
  • Indicator
    LEDs
  • Adjustments
    Potentiometer
  • Repeatability (µs)
    250
  • Output response time (ms)
    1
  • Number of Pins
    5
  • Power Supply/Supply Voltage
    10-30 V dc
  • Slot Overall Depth (mm)
    72
  • Outputs
    Bipolar (NPN & PNP)
  • Power
    DC
  • Quick Disconnect Type
    No QD
  • Primary Housing Material
    Thermoplastic
  • Connection
    Cable
  • Minimum Object Detection (mm)
    2
  • Slot Depth/Array Length (mm)
    45
  • Max Sensing Range (mm)
    30
  • Sensing Mode (Detailed)
    Emitter/Receiver Pair
  • Housing Style
    Slot
  • Cable Length (m)
    2
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Wavelength
    680 nm
  • Net Depth (mm)
    18.8 mm
  • Light Color
    Visible red
  • Main function
    Sensor (Photo-electric)
  • Shape
    Slot
  • Sub-range name
    SL30 series
  • Material
    thermoplastic housing Acrylic lns.
  • Net Height (mm)
    72 mm
  • Primary brand
    Banner Engineering
  • Response time
    1ms / 0.001 s
  • Net Width (mm)
    (passageway) 30 mm52 mm
  • Connection type
    Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
  • Ambient air temperature for operation
    -40...+70 °C
  • Functions
    Photo-electric slot / optical fork sensor green LED (power ON) yellow LED (output state) potentiometer adjustment
  • Digital outputs
    1 x digital output (PNP/NPN transistor)
  • Operating mode
    Light-ON Dark-ON
  • Order code / Manufacturer SKU
    56565
  • Degree of protection
    IP67 NEMA 6

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SL30VB6V on Powermatic Associates is $149.00. Order now.

About the product

Banner Engineering SL30VB6V is a photo-electric slot / optical fork sensor from the SL30 series, featuring a potentiometer adjustment design. This sensor is housed in thermoplastic with an acrylic lens and is pre-wired with a 6.5ft / 2m cable terminated with bare end flying leads. It operates on a supply voltage of 10Vdc-30Vdc, with nominal values of 12Vdc / 24Vdc, and can function within an ambient air temperature range of -40 to +70°C. The SL30VB6V offers a degree of protection rated at IP67 NEMA 6, making it suitable for various environments. Its U-shaped slot has a passageway width of 30mm and a net width of 52mm, with a net height of 72mm and a net depth of 19mm. This sensor features a single digital output (PNP/NPN transistor), a sensing distance of 30mm, and a visible red light with a wavelength of 680 nm. It has a quick response time of 1ms / 0.001 s and supports both Light-ON and Dark-ON operating modes.
