SI-RFSL-LP8 Banner Safety Switches

SI-RFSL-LP8 on Powermatic Associates
Banner
  • SI-RFSL-LP8
  • SI-RFSL-LP8

Part#:SI-RFSL-LP8

Alt. Part#:806395

Manufacturer:Banner

Category:Safety Switches

Product Lifecycle:Active

Product description

SI-RF Safety Switch; Coding: Low; Diagnostics: Series PNP; Reset: Manual; Connector: 250 mm 8-pin M12 Pigtail QD; Used With: SI-RF-A

Product Details

  • Weight
    113.398 g
  • Country Of Origin
    HU
  • Rated Operating Current
    50 mA + output loads
  • Trip Latch Output
    Latch
  • Response Time (ms)
    100
  • Auxilliary Output
    Yes
  • Operating Voltage
    24 V dc +25%, -20%
  • Number of Pins
    8
  • Sao Minimum (mm)
    10
  • Feature: Lockable
    No
  • In-Series Diagnostics
    No
  • Monitor (Locked) Contacts
    N/A
  • Actuator (Safety) Contacts
    2 NC
  • SISTEMA
    PFHd of 1 x 10-9
  • Min Op. Temperature (°C)
    -25
  • Relative Humidity
    93% @ 50 °C
  • Device Shape
    Rectangular
  • Actuation
    Standard
  • Coding Level/Tamper Resistance
    Low
  • Sn Typical
    13
  • Sar Maximum (mm)
    25
  • Feature: Cascade
    Yes
  • H Typical (mm)
    2
  • Connection Type
    M12 Pigtail
  • OSSD Rating
    24 VDC @ 0.1 A each
  • Output Type
    OSSD
  • SIL Rating
    SIL CL 3
  • Safety Category
    Cat 4
  • IP Rating
    IP69
  • PL Rating
    PL e
  • Max Op. Temperature (°C)
    70
  • Device Type
    RFID - Sensor
  • Device Size
    36 x 26 x 15
  • Primary Housing Material
    Thermoplastic
  • Switch Style
    Non-Contact

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SI-RFSL-LP8 on Powermatic Associates is $158.00. Order now.

About the product

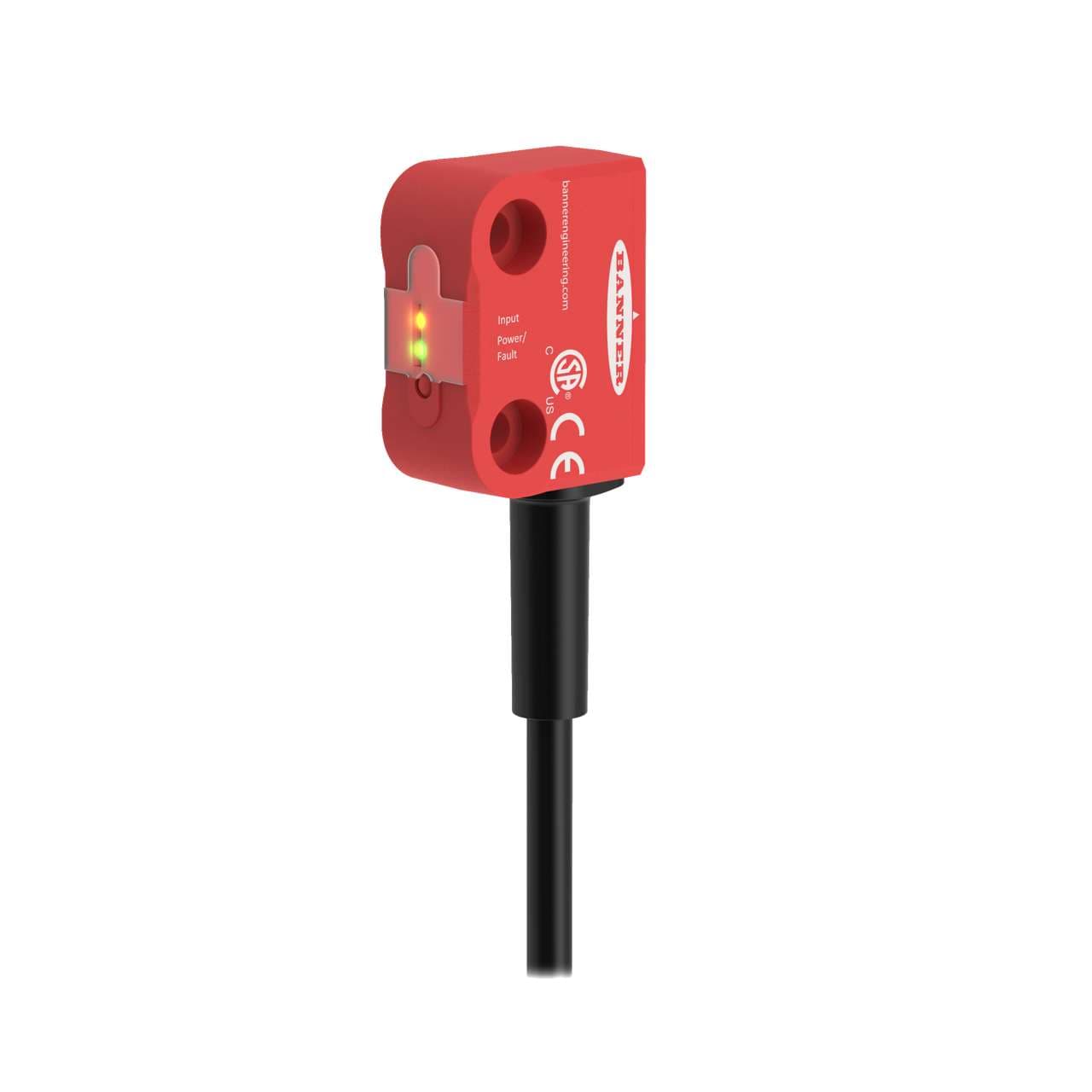

Banner Engineering SI-RFSL-LP8 is a non-contact RFID safety door/hood/gate switch from the SI-RF series, featuring a low-coding switch series with PNP diagnostics and manual reset. It is designed with a thermoplastic housing and is pre-wired with a 250mm pigtail that terminates with an 8-pin Euro-style M12 connector. This part has 2NC contacts and operates with a supply voltage of 24Vdc. It is suitable for ambient air temperatures ranging from -25 to +70°C and offers a degree of protection of IP69K. The switch has a rectangular shape with dimensions of 15mm in width, 32mm in height, and 26mm in depth. It provides a sensing distance of 10mm (Sao) to 25mm (Sar) and includes 2 NC auxiliary contacts, with no NO (Normally Open) auxiliary contacts.
