SI-RFPT-L2M Banner Safety Switches

SI-RFPT-L2M on Powermatic Associates
Banner
  • SI-RFPT-L2M
  • SI-RFPT-L2M

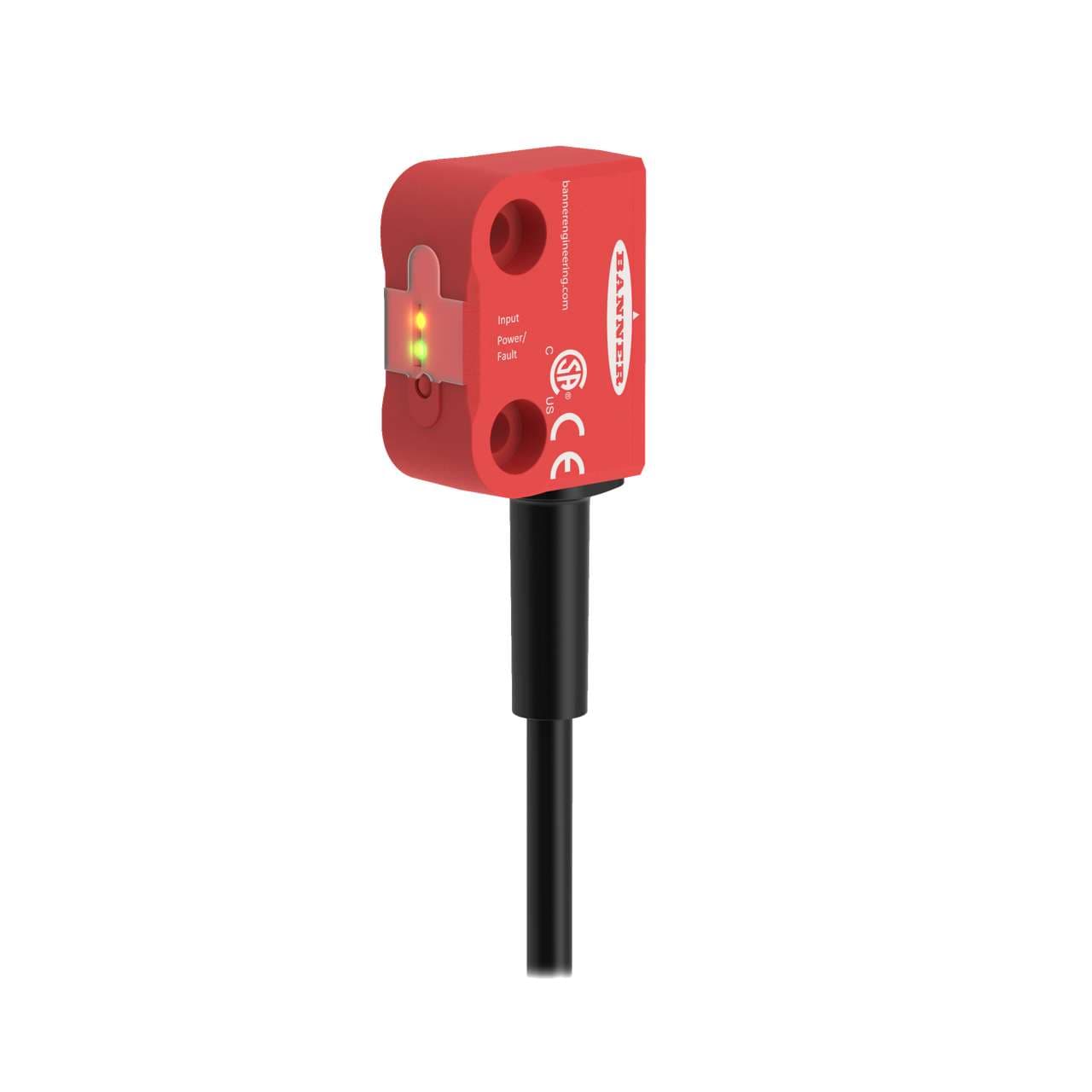

Part#:SI-RFPT-L2M

Alt. Part#:806404

Manufacturer:Banner

Category:Safety Switches

Product Lifecycle:Active

Product description

SI-RF Safety Switch; Coding: Low; Diagnostics: Single PNP; Reset: Automatic; Connector: 2 m cable; Used With: SI-RF-A

Product Details

  • Weight
    113.398 g
  • Country Of Origin
    HU
  • Coding Level/Tamper Resistance
    Low
  • Trip Latch Output
    Trip
  • Connection Type
    Cabled
  • Response Time (ms)
    100
  • Rated Operating Current
    50 mA + output loads
  • Auxilliary Output
    Yes
  • Sao Minimum (mm)
    10
  • H Typical (mm)
    2
  • Sar Maximum (mm)
    25
  • Operating Voltage
    24 V dc +25%, -20%
  • Number of Pins
    5
  • Sn Typical
    13
  • In-Series Diagnostics
    No
  • OSSD Rating
    24 VDC @ 0.1 A each
  • Feature: Lockable
    No
  • SIL Rating
    SIL CL 3
  • SISTEMA
    PFHd of 1 x 10-9
  • IP Rating
    IP69
  • Actuator (Safety) Contacts
    2 NC
  • Output Type
    OSSD
  • Monitor (Locked) Contacts
    N/A
  • Safety Category
    Cat 4
  • PL Rating
    PL e
  • Relative Humidity
    93% @ 50 °C
  • Max Op. Temperature (°C)
    70
  • Min Op. Temperature (°C)
    -25
  • Device Shape
    Rectangular
  • Device Size
    36 x 26 x 15
  • Switch Style
    Non-Contact
  • Actuation
    Standard
  • Primary Housing Material
    Thermoplastic
  • Device Type
    RFID - Sensor

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SI-RFPT-L2M on Powermatic Associates is $162.00. Order now.

About the product

Banner Engineering SI-RFPT-L2M is a non-contact RFID safety door/hood/gate switch from the SI-RF series, designed with low-coding switch, single PNP diagnostics, and auto reset functionality. It features a thermoplastic housing and is pre-wired with a 6.5ft / 2m cable terminated with bare end flying leads. This part has 2NC contacts for its main function and includes 2 NC auxiliary contacts, with no NO auxiliary contacts. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of -25 to +70°C. The SI-RFPT-L2M offers an IP69K degree of protection, making it suitable for environments requiring high levels of dust and water resistance. Its rectangular shape measures 15 mm in width, 32 mm in height, and 26 mm in depth, with sensing distances of 10mm (Sao) to 25mm (Sar).
