Part#:SI-RFPT-U2M

Alt. Part#:806402

Manufacturer:Banner

Category:Safety Switches

Product Lifecycle:Active

Product description

SI-RF Safety Switch; Coding: Unique; Diagnostics: Single PNP; Reset: Automatic; Connector: 2 m cable; Used With: SI-RF-A

Product Details

  • Weight
    113.398 g
  • Country Of Origin
    HU
  • Auxilliary Output
    Yes
  • Rated Operating Current
    50 mA + output loads
  • Coding Level/Tamper Resistance
    Unique
  • Trip Latch Output
    Trip
  • Response Time (ms)
    100
  • Operating Voltage
    24 V dc +25%, -20%
  • H Typical (mm)
    2
  • Sn Typical
    13
  • Sar Maximum (mm)
    25
  • In-Series Diagnostics
    No
  • Number of Pins
    5
  • Sao Minimum (mm)
    10
  • Connection Type
    Cabled
  • Feature: Lockable
    No
  • Monitor (Locked) Contacts
    N/A
  • OSSD Rating
    24 VDC @ 0.1 A each
  • Output Type
    OSSD
  • Actuator (Safety) Contacts
    2 NC
  • SIL Rating
    SIL CL 3
  • PL Rating
    PL e
  • SISTEMA
    PFHd of 1 x 10-9
  • Relative Humidity
    93% @ 50 °C
  • Safety Category
    Cat 4
  • Max Op. Temperature (°C)
    70
  • IP Rating
    IP69
  • Min Op. Temperature (°C)
    -25
  • Device Shape
    Rectangular
  • Device Size
    36 x 26 x 15
  • Actuation
    Standard
  • Primary Housing Material
    Thermoplastic
  • Device Type
    RFID - Sensor
  • Switch Style
    Non-Contact

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SI-RFPT-U2M on Powermatic Associates is $162.00. Order now.

About the product

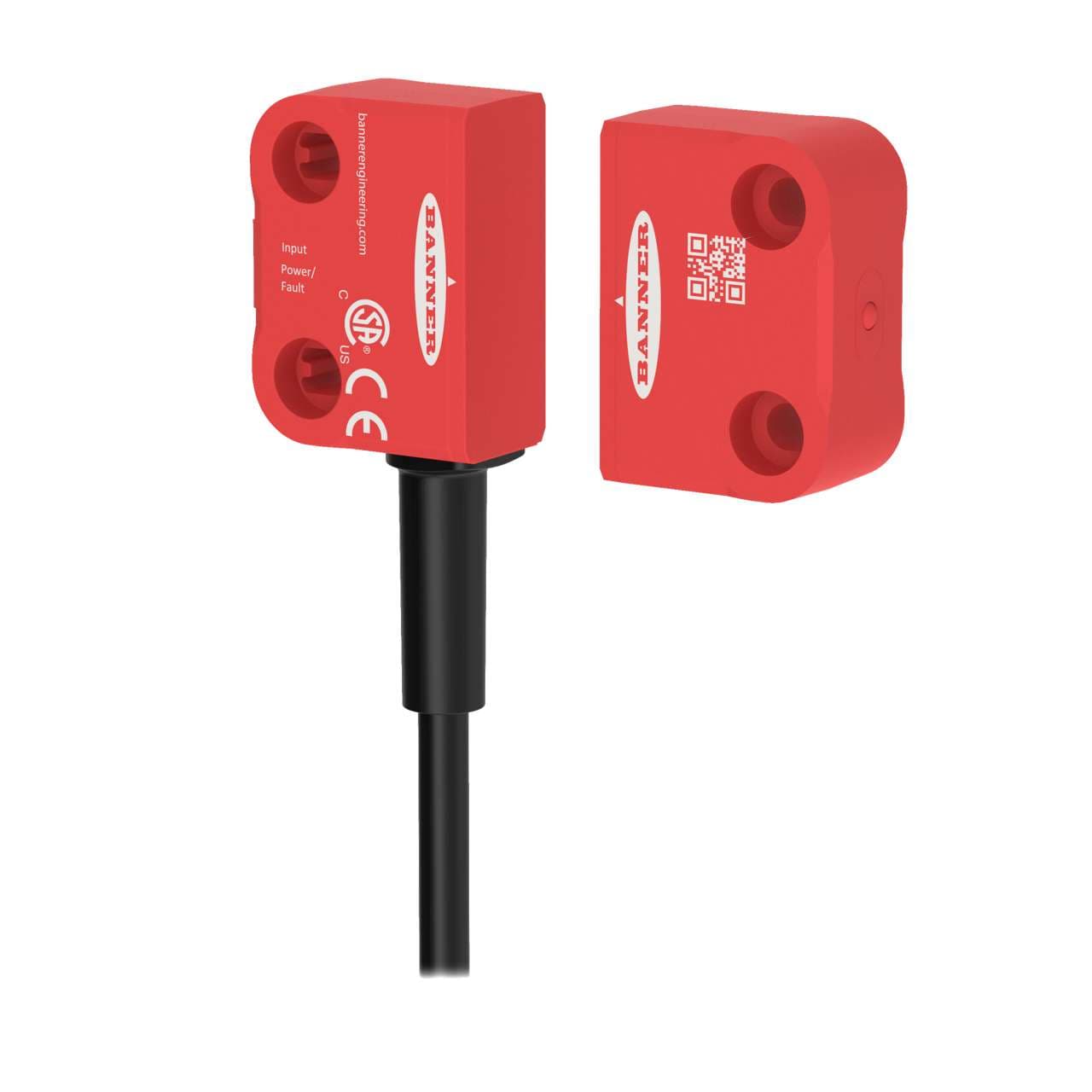

Banner Engineering SI-RFPT-U2M is a non-contact RFID safety door/hood/gate switch from the SI-RF series, featuring a unique coding switch with single PNP diagnostics and auto reset. It is designed with a thermoplastic housing and is pre-wired with a 6.5ft / 2m cable terminated with bare end flying leads. This part has 2NC contacts and operates with a supply voltage of 24Vdc. It is suitable for use in ambient air temperatures ranging from -25 to +70°C and offers a degree of protection of IP69K. The SI-RFPT-U2M has a rectangular shape with dimensions of 15 mm in width, 32 mm in height, and 26 mm in depth. It provides a sensing distance of 10mm (Sao) to 25mm (Sar) and includes 2 NC auxiliary contacts, with no NO auxiliary contacts.
