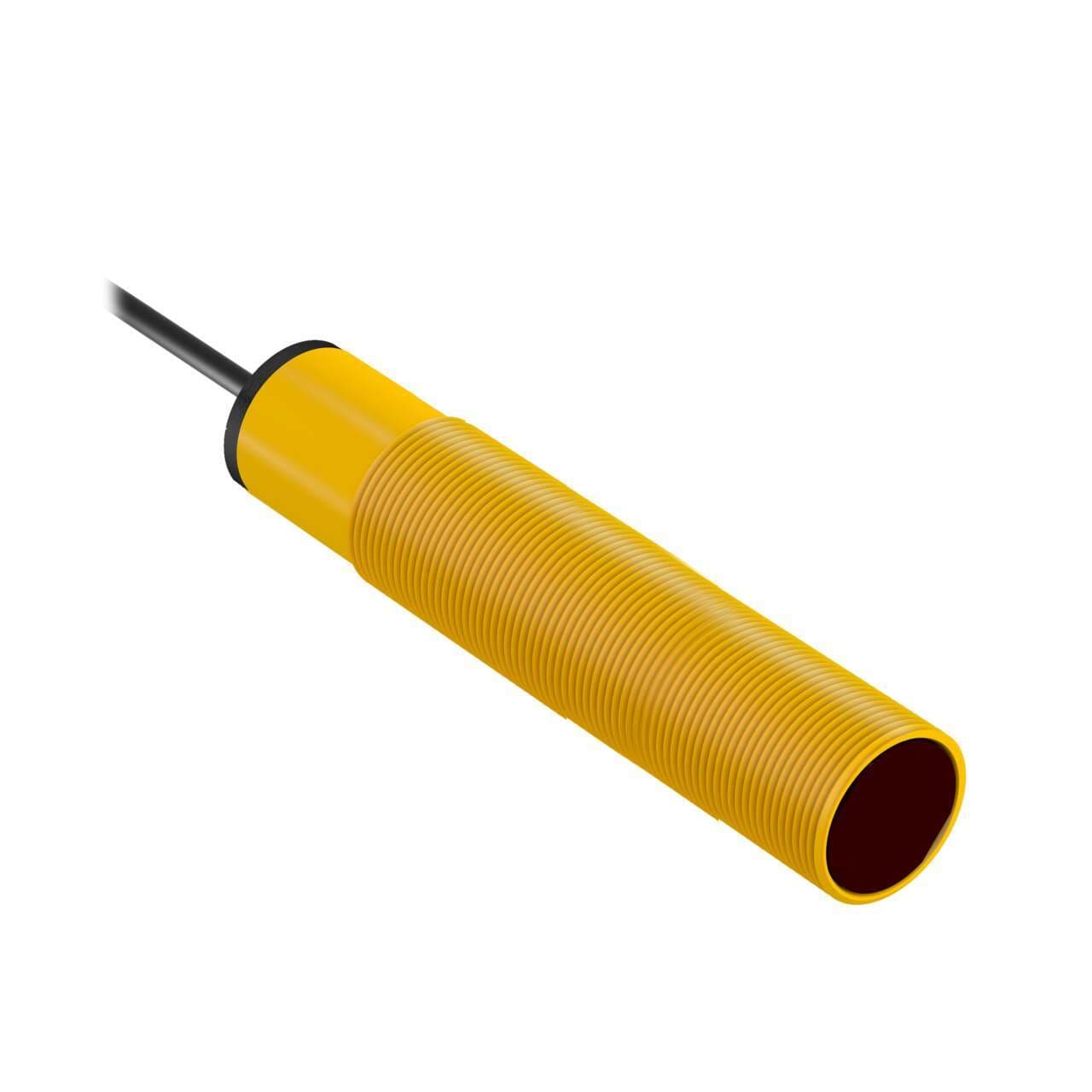

S18RW3D W/30 Banner Retroreflective Sensors

S18RW3D W/30 on Powermatic Associates
Banner

Part#:S18RW3D W/30

Alt. Part#:30823

Manufacturer:Banner

Category:Retroreflective Sensors

Product Lifecycle:Active

Product description

EZ-BEAM S18 Series: Diffuse; Range: 100 mm; Input: 20-250 V ac; Output: SPST Solid-state Dark Operate; 9 m (30 ft) Cable

Product Details

  • Weight
    607.81328 g
  • Country Of Origin
    MX
  • IO Link
    No
  • Feature: Chemical Resistant
    No
  • DeviceNet
    No
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Feature: Ecolab Certified
    Yes
  • Feature: Encapsulated
    Yes
  • Feature: Timing (Hold/Delay)
    No
  • Feature: Washdown Rated
    Yes
  • Opposed Mode Emitter/Receiver
    N/A
  • Adjustments
    N/A
  • Barrel Diameter (mm)
    18
  • Indicator
    LEDs
  • Lens Material
    Acrylic
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • NEMA Rating
    NEMA 6P
  • IP Rating
    IP67, IP69
  • Repeatability (µs)
    4000
  • Number of Pins
    3
  • Delay at Power-up (ms)
    100
  • Special Feature: Water Detection
    No
  • Special Feature: Remote Teach
    No
  • Operation
    Dark Operate
  • Special Feature: Intrinsically Safe
    No
  • Output response time (ms)
    16
  • Max Op. Temp. (°C)
    70
  • Min Op. Temp. (°C)
    -40
  • Outputs
    Solid-State AC Switch
  • Connection
    Cable
  • Power Supply/Supply Voltage
    20-250 V ac
  • Quick Disconnect Type
    No QD
  • Max Sensing Distance (mm)
    100
  • Sensing Mode (General)
    Proximity
  • Housing Style
    Barrel
  • Sensing Beam
    Infrared LED
  • Primary Housing Material
    Thermoplastic
  • Input/Output
    Solid-State AC Switch
  • Sensing Mode (Detailed)
    Diffuse
  • Power
    AC
  • Cable Length (m)
    9

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of S18RW3D W/30 on Powermatic Associates is $122.00. Order now.

About the product

Banner Engineering S18RW3D W/30 is a photo-electric sensor from the S18 AC series, designed in a diffuse mode with a thermoplastic housing and an acrylic lens. It features a pre-wired connection with a 30ft / 9m cable terminated with bare end flying leads. The sensor operates within a supply voltage range of 20Vac-250Vac (200Vac / 220Vac / 240Vac nom.) and can function in ambient air temperatures ranging from -40 to +70°C. It offers a degree of protection rated at IP67, IP69K, and NEMA 6P, ensuring durability in various environmental conditions. The sensor has an M18 cylindrical threaded/barrel shape, includes 1 x digital output (Solid-state AC output; SPST contact type), and provides a sensing distance of 100mm. It utilizes infrared (IR) light with a wavelength of 880 nm and has a response time of 16ms / 0.016 s. The operating mode is Dark-ON, and it features an M18 thread size.
