S18LRXXPT Banner Signal Beacons

Name: S18LRXXPT
Brand: Banner
Price: 49 USD
Availability: BackOrder

Part#:S18LRXXPT

Manufacturer:Banner

Alt. Part#:31603

Product Lifecycle:Active

Get a quick Quote!

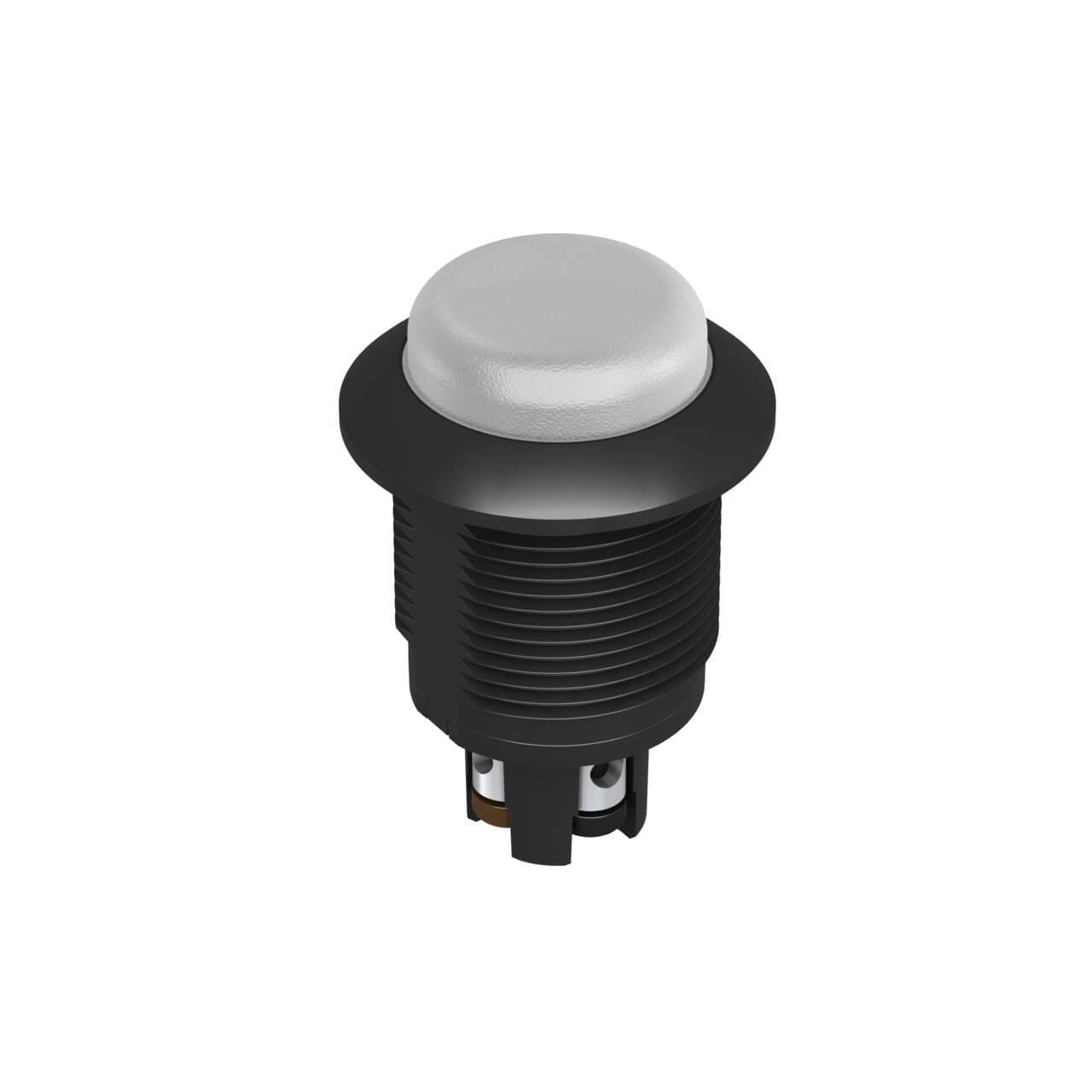

S18 EZ Light - 18 mm - IP67; Single Color: Red; 10-30 V dc PNP Input; 4-screw Terminal Wiring

About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the S18LRXXPT Banner price in the box on the right side or send a quick quote.

Product Details

Weight
63.50288 g
Country Of Origin
CN
Pro-Editor Compatible (Discrete)
No
Wireless
No
Multi-Color Device
Single Color On
Modbus RTU
No
IO Link
No
Feature: Chemical Resistant
No
Feature: Audible
No
Feature: Hazardous Area
No
Feature: Washdown Rated
Yes
Primary Window Material
Polycarbonate Diffused
Min Op. Temperature (°C)
-40
Primary Housing Color
Black
Max Op. Temperature (°C)
50
NEMA Type and UL Type Rating
NEMA and UL 4X, 13
Environmental Rating
IP67; IP69
Max Input Response Time (ms)
1
Physical Dimensions (LxWxH or DxH mm)
23.5 x 34.6
Input Type
PNP

Number of Input Pins/Conductors

Supply Voltage

10-30 V dc

Max Current Color (mA)

Color 1 - Wavelength/Color Temp/Coordinates

625 nm

Connection

Terminal

Lumens Color 1

1.1

Animation Option 1

Solid On

Color Option 1

Red

Color Technology

Standard LED

Housing Style

Barrel Mount - Flat Window

Mounting Thread

M18 x 1.0

Indication

Yes

Power

Product Size (mm)

Number of Colors / Segments

Color Input Control

Individual (One wire/color, same number of colors as input wires)

Primary Housing Material

Polycarbonate

Power Source

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

S18LRXXPT Description

Banner Engineering S18LRXXPT, part of the EZ-LIGHT series, is a pilot light designed with a 1-color Red LED illumination. This LED pilot light indicator features a polycarbonate (PC) diffused window and base, with a diameter of 18mm for the indicator. It offers a screw-clamp terminal connection and comes in a black housing. The supply voltage required ranges from 10Vdc to 30Vdc, with a nominal range of 12Vdc to 24Vdc. It is designed for flush mounting in an 18mm hole with an M18 thread. The S18LRXXPT can operate in ambient air temperatures from -40°C to +50°C and boasts a degree of protection rated at IP67, IP69K, NEMA 4X, NEMA 13, UL type 4X, and UL type 13, ensuring its durability in various environments. The shape is characterized by a round protruding window and a threaded cylindrical barrel. It has a current consumption of 25mA and includes 1 x digital input (10-30Vdc; PNP) for color control.
