S18LGRXN Banner Signal Beacons

S18LGRXN on Powermatic Associates
Banner

Part#:S18LGRXN

Manufacturer:Banner

Alt. Part#:25026

Product Lifecycle:Active

Get a quick Quote!

S18 EZ-LIGHT - 18 mm - IP67; Two Color: Green Red; 10-30 V dc NPN Input; 4-Wire 2 m Cable

About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the S18LGRXN Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    40.6418432 g
  • Country Of Origin
    CN
  • Wireless
    No
  • Pro-Editor Compatible (Discrete)
    No
  • Modbus RTU
    No
  • Feature: Hazardous Area
    No
  • Feature: Chemical Resistant
    No
  • IO Link
    No
  • Feature: Quick Disconnect
    No
  • Multi-Color Device
    Single Color On
  • Feature: Audible
    No
  • Min Op. Temperature (°C)
    -40
  • Primary Housing Color
    Black
  • Feature: Washdown Rated
    Yes
  • Primary Window Material
    Polycarbonate Diffused
  • Environmental Rating
    IP67; IP69
  • Max Op. Temperature (°C)
    50
  • NEMA Type and UL Type Rating
    NEMA and UL 4X, 13
  • Max Input Response Time (ms)
    1
  • Physical Dimensions (LxWxH or DxH mm)
    23.5 x 35.7
  • Input Type
    NPN
  • Number of Input Pins/Conductors
    4
  • Supply Voltage
    10-30 V dc
  • Max Current Color (mA)
    25
  • Color 2 - Wavelength/Color Temp/Coordinates
    625 nm
  • Lumens Color 2
    1.1
  • Color 1 - Wavelength/Color Temp/Coordinates
    525 nm
  • Lumens Color 1
    4.1
  • Color Option 2
    Red
  • Connection
    Cable
  • Animation Option 1
    Solid On
  • Color Option 1
    Green
  • Color Technology
    Standard LED
  • Product Size (mm)
    18
  • Power
    DC
  • Number of Colors / Segments
    2
  • Mounting Thread
    M18 x 1.0
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Primary Housing Material
    Polycarbonate
  • Indication
    Yes
  • Power Source
    DC
  • Housing Style
    Barrel Mount - Flat Window

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

S18LGRXN Description

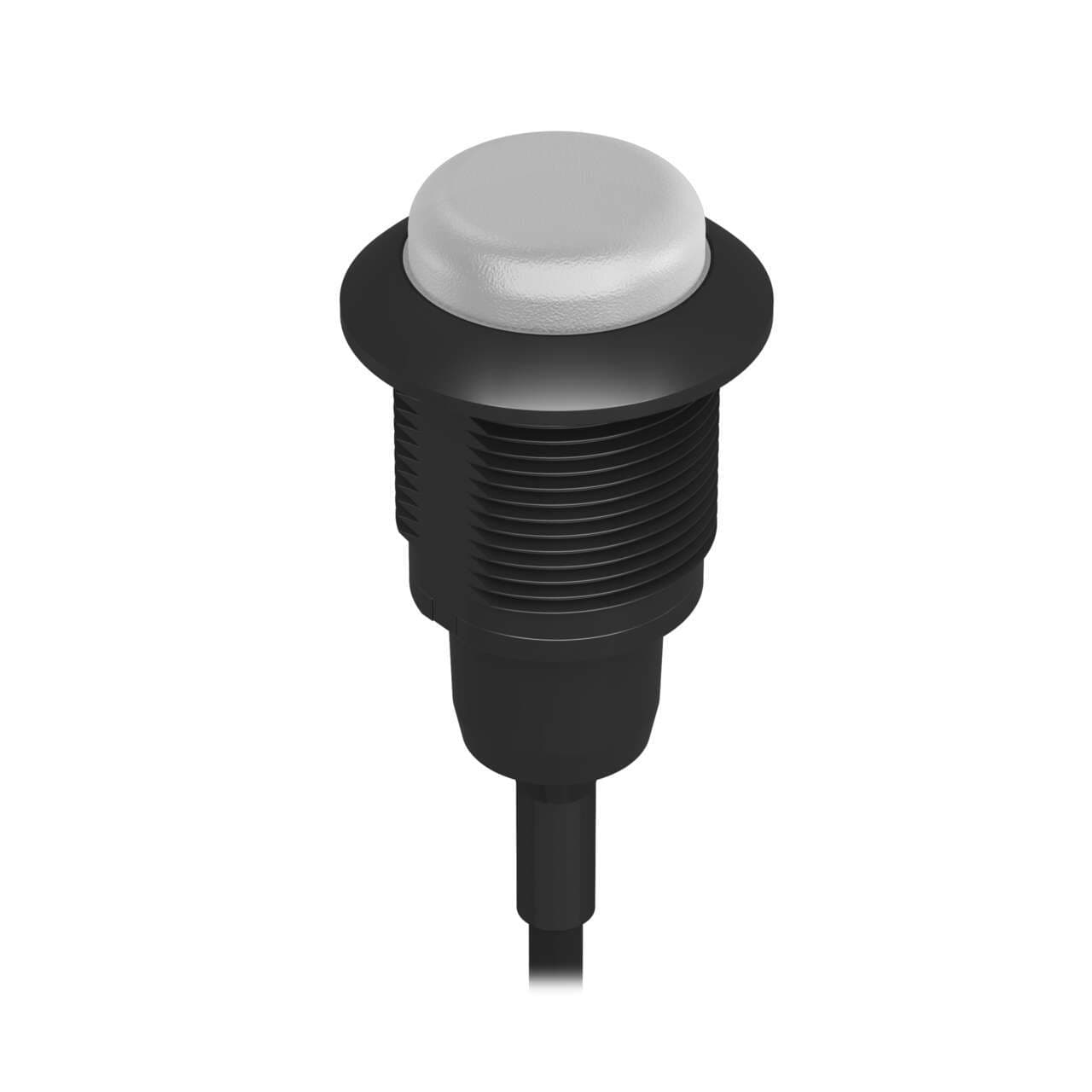

Banner Engineering S18LGRXN, part of the EZ-LIGHT series, is a pilot light designed with a 2-color G/R color pattern LED illumination. This LED pilot light indicator features a polycarbonate (PC) diffused window and base, with a diameter of 18mm. It comes pre-wired with a 2m / 6.5ft 4-wire cable terminated with bare end flying leads. The housing is black, and it operates on a supply voltage of 10Vdc-30Vdc (12Vdc-24Vdc nom.). The S18LGRXN is designed for flush mounting in an 18mm hole with an M18 thread. It can operate in ambient air temperatures ranging from -40°C to +50°C. This part boasts a degree of protection rated at IP67, IP69K, NEMA 4X, NEMA 13, UL type 4X, and UL type 13. Its shape is characterized by a round protruding window and a threaded cylindrical barrel. The current consumption is 25mA, and it includes 2 x digital inputs (10-30Vdc; NPN) for color control.

Related documents S18LGRXN Specs

S18LGRXN 160690.pdf
