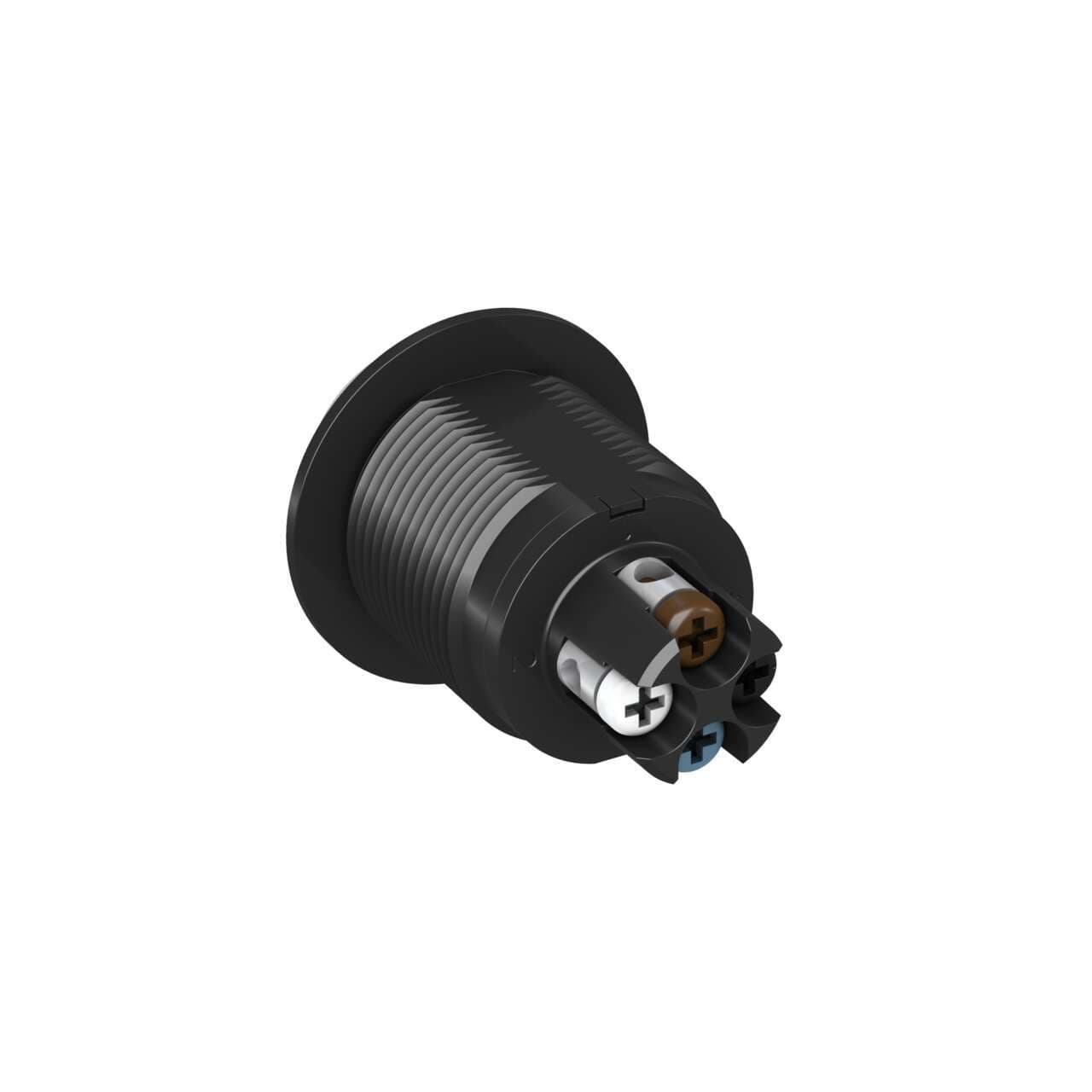

S18DLHWT Banner Signal Beacons

Name: S18DLHWT
Brand: Banner

Banner S18DLHWT S18 EZ-LIGHT Daylight Visible High Intensity 18 mm 1-Color; Voltage: 9-30 V dc; Environmental Rating: IP67; Color: White; Input: PNP; 4-screw Terminal Wiring

Part#:S18DLHWT

Manufacturer:Banner

Alt. Part#:87932

Product Lifecycle:Active

Get a quick Quote!

S18 EZ-LIGHT Daylight Visible High Intensity 18 mm 1-Color; Voltage: 9-30 V dc; Environmental Rating: IP67; Color: White; Input: PNP; 4-screw Terminal Wiring

About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the S18DLHWT Banner price in the box on the right side or send a quick quote.

Product Details

Weight
63.50288 g
Country Of Origin
CN
Pro-Editor Compatible (Discrete)
No
Modbus RTU
No
Multi-Color Device
Single Color On
Indication Intensity
High Brightness & Daylight Visible
Feature: Chemical Resistant
No
Wireless
No
Feature: Audible
No
IO Link
No
Feature: Quick Disconnect
No
Feature: Hazardous Area
No
Feature: Washdown Rated
Yes
Min Op. Temperature (°C)
-40
Primary Housing Color
Black
Max Op. Temperature (°C)
60
NEMA Type and UL Type Rating
NEMA and UL 4X, 13
Environmental Rating
IP67; IP69
Supply Voltage
9-30 V dc
Physical Dimensions (LxWxH or DxH mm)
23.5 x 34.6

Primary Window Material

Polycarbonate Clear

Input Type

Bimodal (PNP/NPN)

Max Input Response Time (ms)

Color 1 - Wavelength/Color Temp/Coordinates

7500K

Max Current Color (mA)

Number of Input Pins/Conductors

Color Option 1

White

Connection

Terminal

Color Technology

Standard LED

Lumens Color 1

20.0

Animation Option 1

Solid On

Product Size (mm)

Primary Housing Material

Polycarbonate

Number of Colors / Segments

Power

Power Source

Color Input Control

Individual (One wire/color, same number of colors as input wires)

Housing Style

Barrel Mount - Flat Window

Mounting Thread

M18 x 1.0

Indication

Yes

Cable Length (m)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

S18DLHWT Description

Banner Engineering S18DLHWT is a pilot light from the EZ-LIGHT series featuring daylight-visible 1-color white LED illumination. This high-intensity LED pilot light indicator is designed with a clear Polycarbonate (PC) window and a Polycarbonate (PC) base. It has an 18mm indicator diameter and utilizes a screw-clamp terminal connection. The housing is black, and it operates on a supply voltage of 9Vdc-30Vdc (12Vdc-24Vdc nominal). The S18DLHWT is designed for flush mounting in an 18mm hole with an M18 thread. It can operate in ambient air temperatures ranging from -40°C to +60°C. This part offers a degree of protection rated at IP67, IP69K, NEMA 4X, NEMA 13, UL type 4X, and UL type 13. It features a round protruding window and a threaded cylindrical barrel shape. The current consumption is 60mA, and it includes 1 x digital input (9-30Vdc; PNP) for color control.
