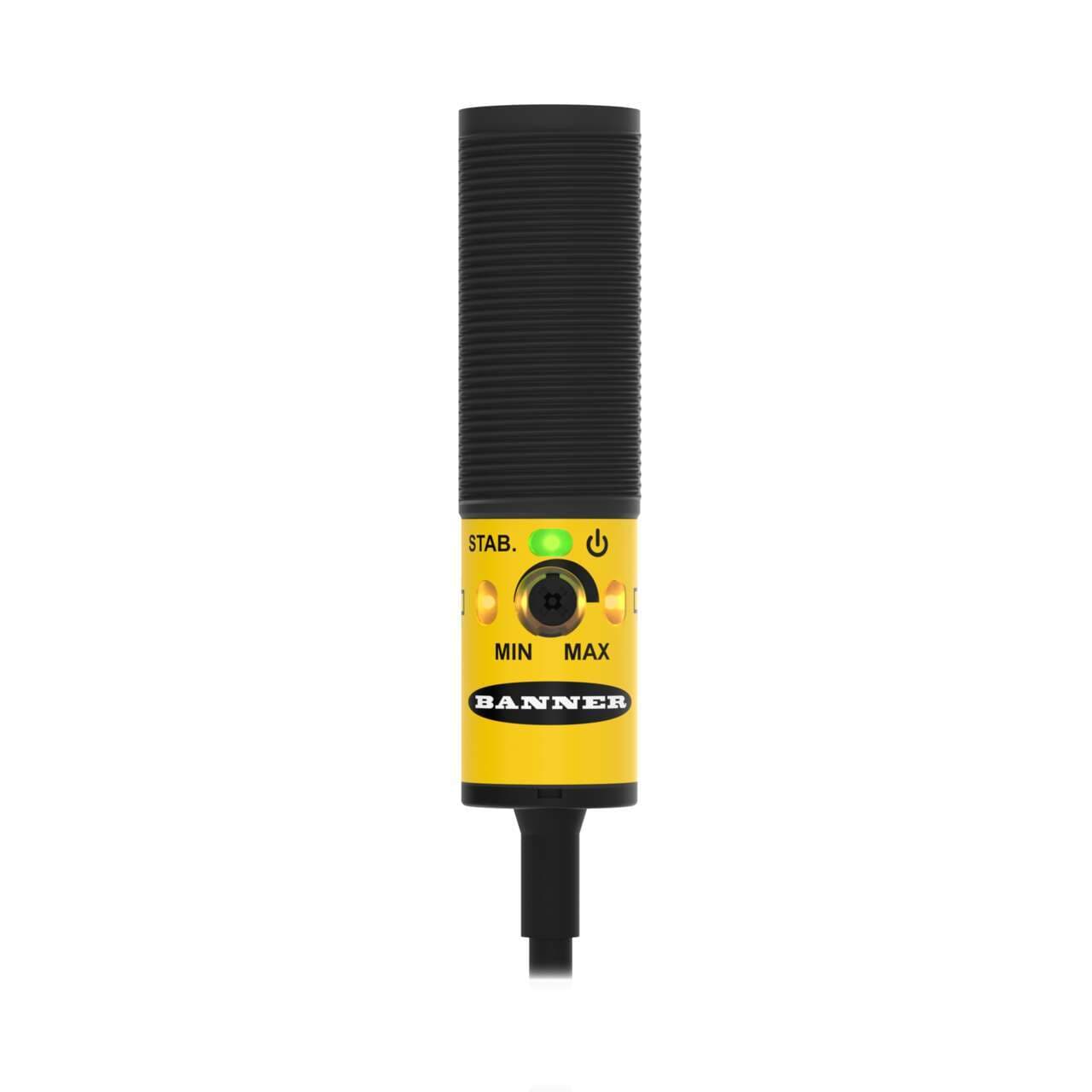

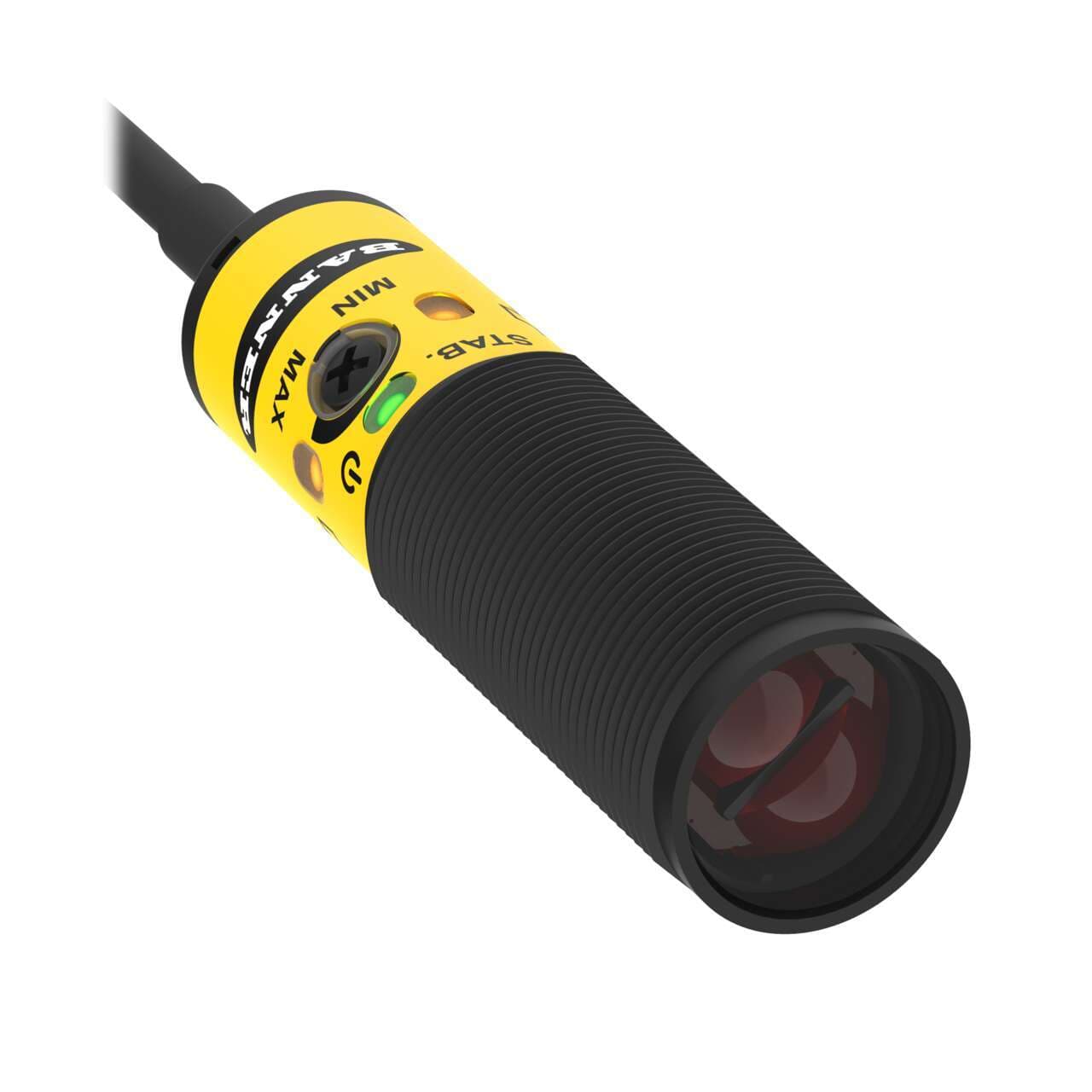

S18-2VPLPC-Q3 Banner Optical Sensors
Part#:S18-2VPLPC-Q3
Alt. Part#:86565
Manufacturer:Banner
Category:Optical Sensors
Product Lifecycle:Active
Product description
S18-2 Series: Polarized Retroreflective with pot; Range: variable to 6 m; Input: 10-30 V dc; Outputs: Complementary PNP; 150 mm (6 in) 4-pin M8 PVC Pigtail QD
Product Details
- Weight 40.82328 g
- Country Of Origin CN
- Primary brand Banner Engineering
- Wavelength 624 nm
- Connection type Pre-wired with 6" / 150mm pigtail terminated with 4-pin Pico-style M8 connector
- Ambient air temperature for operation -40...+70 °C
- Order code / Manufacturer SKU 86565
- Main function Sensor (Photo-electric)
- Design retro-reflective mode
- Sensing distance 6m
- Digital outputs 1 x digital output (PNP transistor)
- Operating mode Light-ON Dark-ON
- Equivalent to S182VPLPCQ3
- Product series / family name M18 barrel series
- Light Color Visible red
- Response time 1.5ms / 0.0015 s
- Sub-range name S18-2 series
- Degree of protection IP67
- Compliant with standard(s) CE
- Functions Polarized photo-electric sensor green LED (power ON) 2 x yellow LED (output conducting) potentiometer adjustment
- Shape Cylindrical threaded/barrel
- Thread size M18
- Material thermoplastic housing Acrylic lns. PVC (connector)
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Max Sensing Distance (mm) 6000
- Power DC
- Adjustments Potentiometer
- Feature: Hazardous Area No
- Primary Housing Material Thermoplastic
- Housing Style Barrel
- Power Supply/Supply Voltage 10-30 V dc
- Outputs PNP
- Input/Output Discrete
- Min Op. Temp. (°C) -40
- Sensing Beam Visible Red LED
- Sensing Mode (Detailed) Polarized
- IO Link No
- Feature: Encapsulated No
- Repeatability (µs) 100
- Operation Light/Dark Operate
- Quick Disconnect Type M8 (Pico)
- Number of Pins 4
- Barrel Diameter (mm) 18
- DeviceNet No
- Sensing Mode (General) Retroreflective
- Output response time (ms) 1.5
- Special Feature: Water Detection No
- Feature: Timing (Hold/Delay) No
- Special Feature: Intrinsically Safe No
- Indicator LEDs
- NEMA Rating N/A
- Delay at Power-up (ms) 100
- Feature: Chemical Resistant No
- Connection Pigtail QD
- Sensing Beam Wavelength 624
- Feature: Ecolab Certified Yes
- Special Feature: Remote Teach No
- Max Op. Temp. (°C) 70
- IP Rating IP67
- Opposed Mode Emitter/Receiver N/A
- Max Op. Relative Humidity [%] 95% @ 50°C
- Lens Material Acrylic
- Feature: Audible No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of S18-2VPLPC-Q3 on Powermatic Associates is $85.00. Order now.
About the product
Banner Engineering S18-2VPLPC-Q3 is a polarized photo-electric sensor from the S18-2 series, designed in a retro-reflective mode with potentiometer adjustment for precise control. It features a thermoplastic housing and an acrylic lens with a PVC connector for durability. This sensor is pre-wired with a 6" / 150mm pigtail that terminates with a 4-pin Pico-style M8 connector, ensuring easy installation. It operates on a supply voltage of 10Vdc-30Vdc, with nominal values of 12Vdc / 24Vdc, and can function within an ambient air temperature range of -40 to +70°C. With an IP67 degree of protection, it is well-suited for challenging environments. The S18-2VPLPC-Q3 has a cylindrical threaded/barrel shape with an M18 thread size, and it offers a single digital output (PNP transistor). It boasts a sensing distance of up to 6m and features visible red light with a wavelength of 624 nm for easy alignment. The sensor's response time is quick at 1.5ms / 0.0015 s, and it supports both Light-ON and Dark-ON operating modes, making it versatile for various applications.
