S18-2VPLP-5M Banner Optical Sensors
Part#:S18-2VPLP-5M
Alt. Part#:90593
Manufacturer:Banner
Category:Optical Sensors
Product Lifecycle:Active
Product description
S18-2 Series: Polarized Retroreflective; Range: 6 m; Input: 10-30 V dc; Outputs: complementary PNP; 5 m 4-conductor PVC Cable
Product Details
- Weight 130.2716224 g
- Country Of Origin CN
- IO Link No
- DeviceNet No
- Feature: Audible No
- Feature: Chemical Resistant No
- Feature: Hazardous Area No
- Feature: Ecolab Certified Yes
- Feature: Encapsulated No
- Opposed Mode Emitter/Receiver N/A
- Feature: Timing (Hold/Delay) No
- Indicator LEDs
- Barrel Diameter (mm) 18
- Adjustments N/A
- Lens Material Acrylic
- Max Op. Relative Humidity [%] 90% @ 50°C
- NEMA Rating N/A
- IP Rating IP67
- Number of Pins 4
- Repeatability (µs) 300
- Delay at Power-up (ms) 100
- Sensing Beam Wavelength 624
- Special Feature: Water Detection No
- Special Feature: Remote Teach No
- Special Feature: Intrinsically Safe No
- Output response time (ms) 1.5
- Max Op. Temp. (°C) 70
- Operation Light/Dark Operate
- Min Op. Temp. (°C) -40
- Quick Disconnect Type No QD
- Connection Cable
- Outputs PNP
- Power Supply/Supply Voltage 10-30 V dc
- Sensing Beam Visible Red LED
- Sensing Mode (Detailed) Polarized
- Primary Housing Material Thermoplastic
- Max Sensing Distance (mm) 6000
- Input/Output Discrete
- Sensing Mode (General) Retroreflective
- Power DC
- Housing Style Barrel
- Cable Length (m) 5
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of S18-2VPLP-5M on Powermatic Associates is $84.00. Order now.
About the product

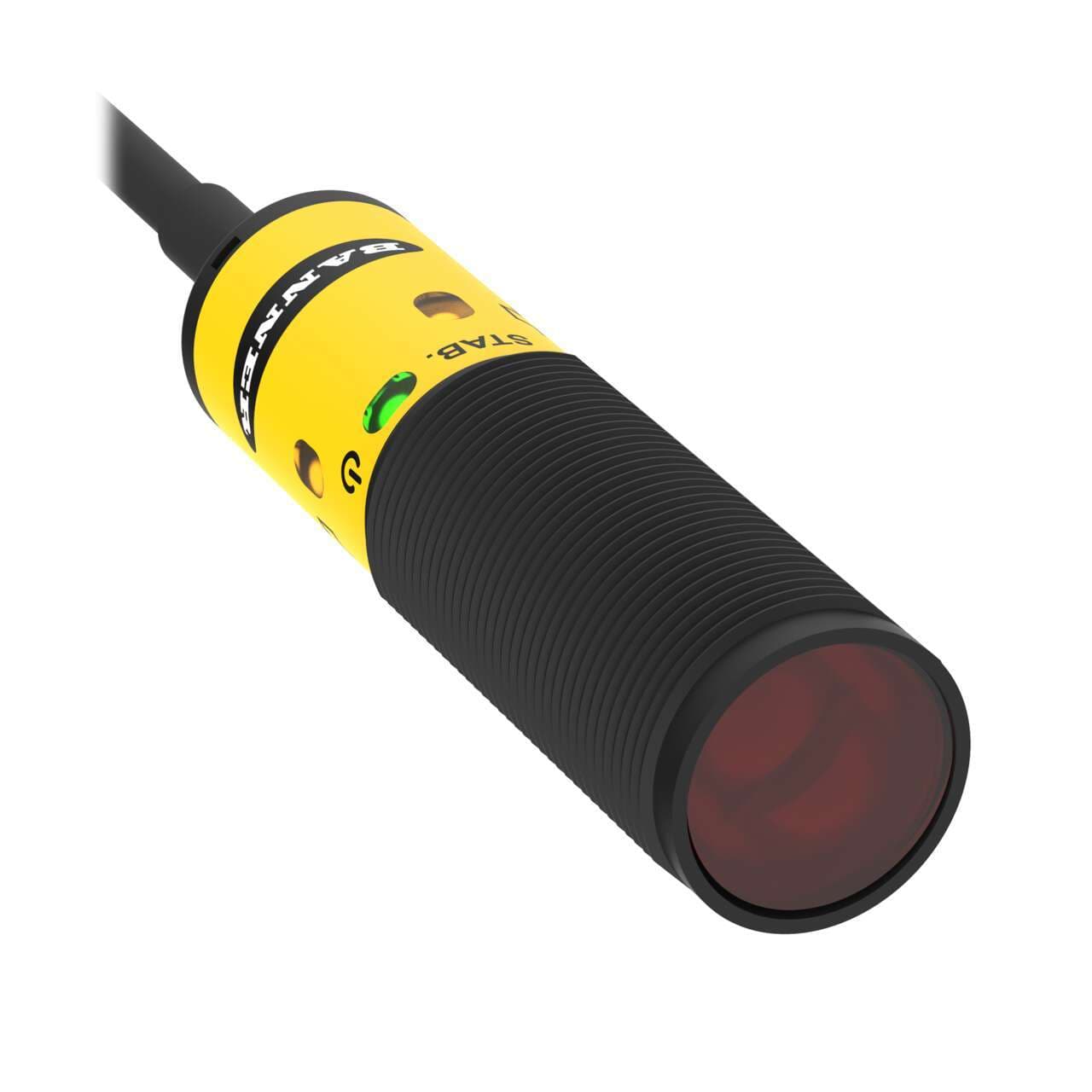

Banner Engineering S18-2VPLP-5M is a polarized photo-electric sensor from the S18-2 series, designed in a retro-reflective mode. This sensor features a thermoplastic housing with an acrylic lens and is pre-wired with a 5m cable that terminates with bare end flying leads. It operates on a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. The sensor can function within an ambient air temperature range of -40 to +70°C and is rated with a degree of protection of IP67. Its shape is an M18 cylindrical threaded/barrel, and it includes 1 x digital output (PNP transistor). The sensing distance of the sensor is 6m, and it emits visible red light with a wavelength of 624 nm. The response time is 1.5ms (0.0015 s), and it supports both Light-ON and Dark-ON operating modes. The thread size for installation is M18.
