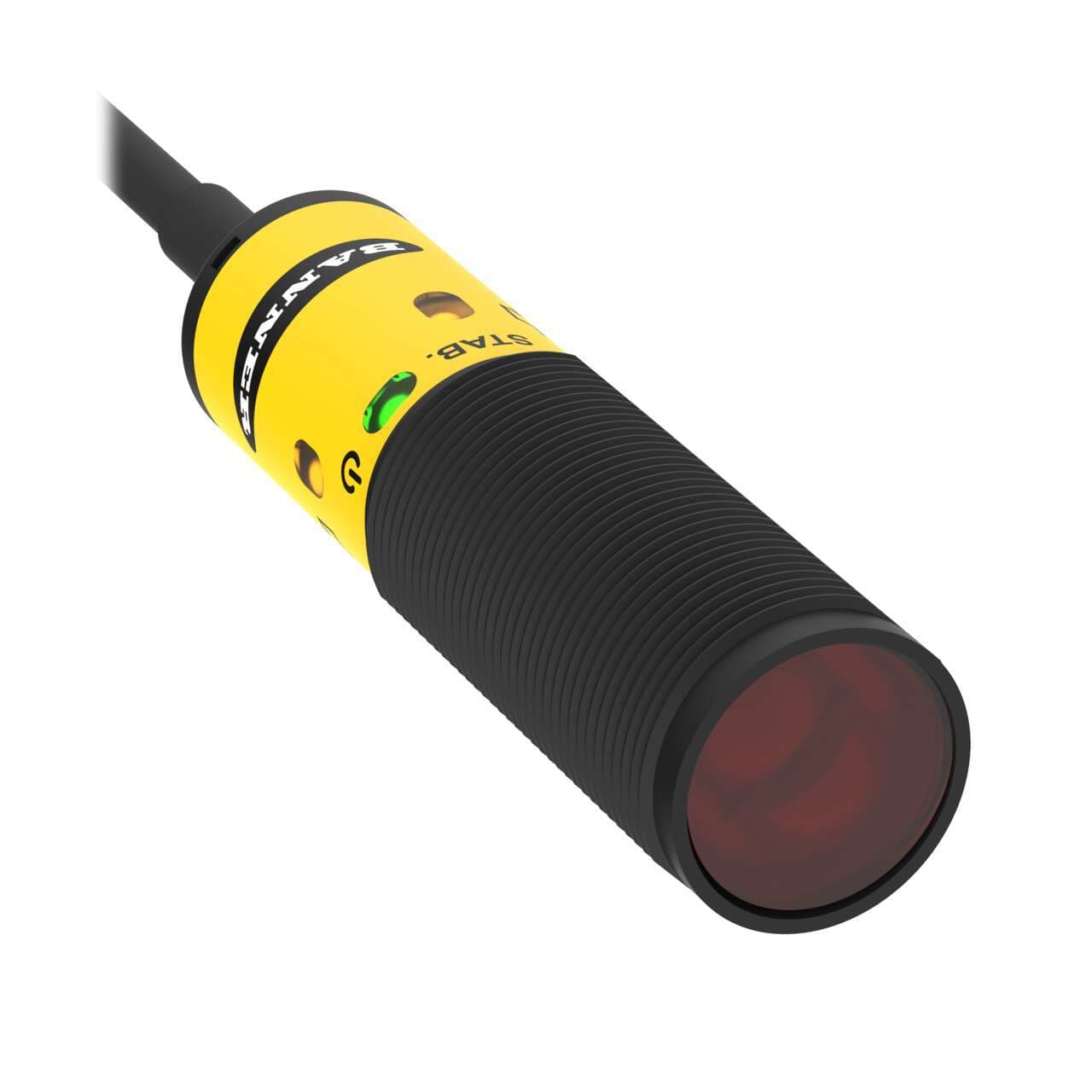

S18-2VNRL-Q5 Banner Optical Sensors
Part#:S18-2VNRL-Q5
Alt. Part#:42183
Manufacturer:Banner
Category:Optical Sensors
Product Lifecycle:Active
Product description
S18-2 Series: Receiver; Range: 25 m; Input: 10-30 V dc; Outputs: Complementary NPN; 150 mm (6 in) 4-pin M12 PVC Pigtail QD
Product Details
- Weight 40.82328 g
- Country Of Origin CN
- Feature: Chemical Resistant No
- Feature: Hazardous Area No
- IO Link No
- Feature: Audible No
- DeviceNet No
- Feature: Encapsulated No
- Feature: Ecolab Certified Yes
- Feature: Timing (Hold/Delay) No
- Opposed Mode Emitter/Receiver Receiver
- Indicator LEDs
- Barrel Diameter (mm) 18
- Adjustments N/A
- Lens Material Acrylic
- Max Op. Relative Humidity [%] 95% @ 50°C
- NEMA Rating N/A
- IP Rating IP67
- Number of Pins 4
- Repeatability (µs) 170
- Delay at Power-up (ms) 100
- Special Feature: Water Detection No
- Special Feature: Remote Teach No
- Output response time (ms) 1.5
- Special Feature: Intrinsically Safe No
- Max Op. Temp. (°C) 70
- Min Op. Temp. (°C) -40
- Operation Light/Dark Operate
- Quick Disconnect Type M12 (Euro)
- Connection Pigtail QD
- Power Supply/Supply Voltage 10-30 V dc
- Outputs NPN
- Primary Housing Material Thermoplastic
- Max Sensing Distance (mm) 25000
- Sensing Mode (General) Opposed
- Power DC
- Input/Output Discrete
- Housing Style Barrel
- Sensing Mode (Detailed) Receiver
- Sensing Beam Visible Red LED
- Main function Sensor (Photo-electric)
- Design through-beam system / opposed mode
- Response time 1.5ms / 0.0015 s
- Equivalent to S182VNRLQ5
- Functions Photo-electric sensor receiver green LED (power ON) 2 x yellow LED (output conducting)
- Operating mode Light-ON Dark-ON
- Ambient air temperature for operation -40...+70 °C
- Product series / family name M18 barrel series
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Digital outputs 1 x digital output (NPN transistor)
- Compliant with standard(s) CE
- Primary brand Banner Engineering
- Sensing distance 25m
- Connection type Pre-wired with 6" / 150mm pigtail terminated with 4-pin Euro-style M12 connector
- Material thermoplastic housing Acrylic lns. PVC (connector)
- Sub-range name S18-2 series
- Shape Cylindrical threaded/barrel
- Thread size M18
- Degree of protection IP67
- Order code / Manufacturer SKU 42183
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of S18-2VNRL-Q5 on Powermatic Associates is $59.00. Order now.
About the product
Banner Engineering S18-2VNRL-Q5 is a photo-electric sensor designed as part of the S18-2 series, featuring a through-beam system in an opposed mode configuration. This sensor functions as a receiver alone, housed in a thermoplastic body with an acrylic lens and a PVC connector. It is pre-wired with a 6-inch (150mm) pigtail that terminates with a 4-pin Euro-style M12 connector. The sensor operates on a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. It is designed to work within an ambient air temperature range of -40 to +70 degrees Celsius and offers a degree of protection rated at IP67. The S18-2VNRL-Q5 has a cylindrical M18 threaded/barrel shape, includes 1 x digital output (NPN transistor), and provides a sensing distance of up to 25 meters. Its response time is 1.5ms (0.0015 seconds), and it supports both Light-ON and Dark-ON operating modes, with a thread size of M18.
