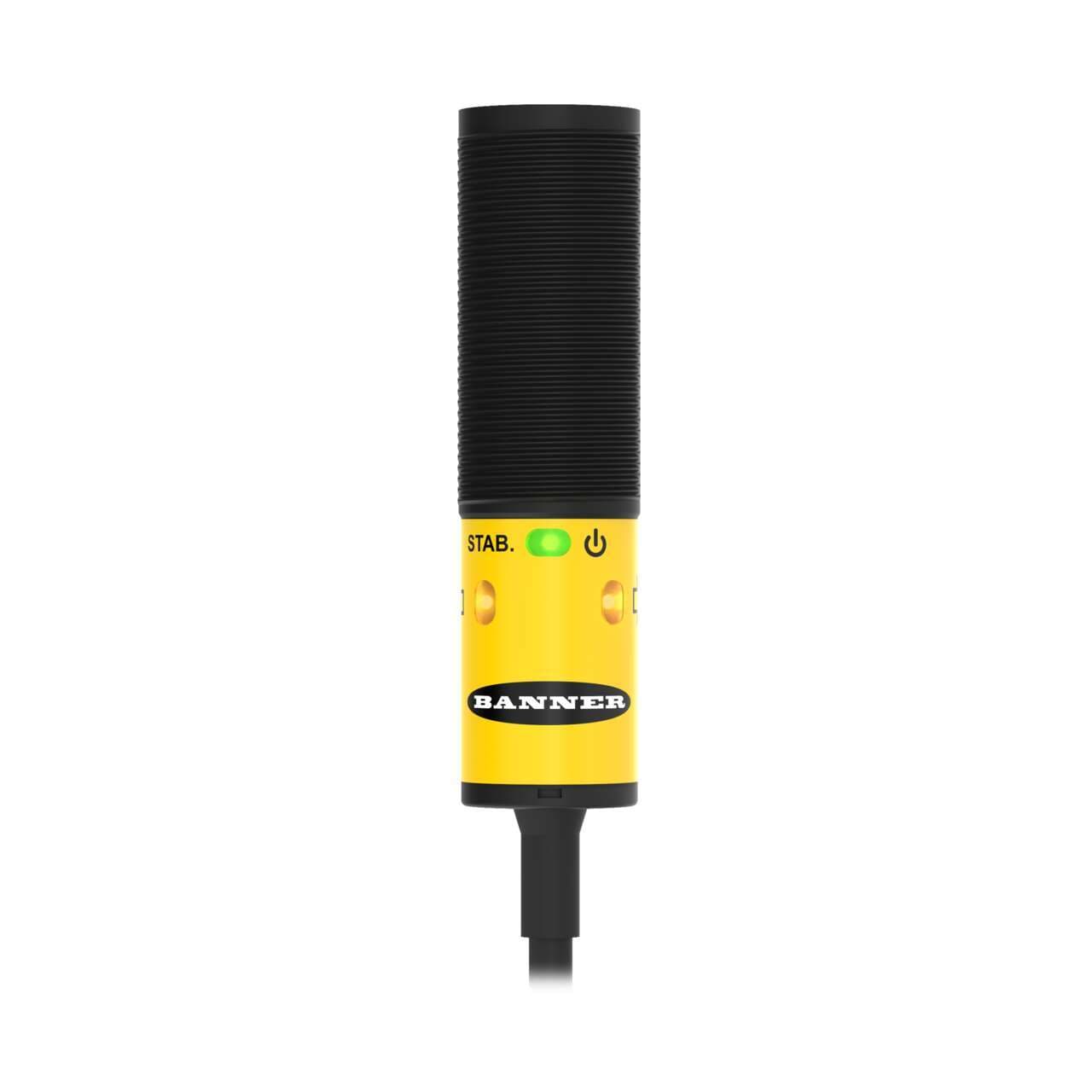

S18-2VNFF30-Q5 Banner Optical Sensors
Part#:S18-2VNFF30-Q5
Alt. Part#:91062
Manufacturer:Banner
Category:Optical Sensors
Product Lifecycle:Active
Product description
S18-2 Series: Fixed Field; Range: 30 mm; Input: 10-30 V dc; Outputs: Complementary NPN; 150 mm (6 in) 4-pin M12 PVC Pigtail QD
Product Details
- Weight 36.28736 g
- Country Of Origin CN
- IO Link No
- Feature: Chemical Resistant No
- DeviceNet No
- Feature: Hazardous Area No
- Feature: Ecolab Certified Yes
- Feature: Timing (Hold/Delay) No
- Feature: Encapsulated No
- Feature: Audible No
- Indicator LEDs
- Barrel Diameter (mm) 18
- Opposed Mode Emitter/Receiver N/A
- Lens Material Acrylic
- Adjustments N/A
- IP Rating IP67
- Number of Pins 4
- NEMA Rating N/A
- Max Op. Relative Humidity [%] 95% @ 50°C
- Special Feature: Water Detection No
- Delay at Power-up (ms) 100
- Repeatability (µs) 100
- Sensing Beam Wavelength 624
- Special Feature: Remote Teach No
- Special Feature: Intrinsically Safe No
- Power Supply/Supply Voltage 10-30 V dc
- Output response time (ms) 1.5
- Min Op. Temp. (°C) -40
- Outputs NPN
- Max Op. Temp. (°C) 70
- Operation Light/Dark Operate
- Connection Pigtail QD
- Sensing Beam Visible Red LED
- Quick Disconnect Type M12 (Euro)
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Sensing Mode (General) Proximity
- Small Visible Spot LED
- Housing Style Barrel
- Input/Output Discrete
- Max Sensing Distance (mm) 30
- Primary Housing Material Thermoplastic
- Power DC
- Main function Sensor (Photo-electric)
- Sensing distance 30mm
- Compliant with standard(s) CE
- Sub-range name S18-2 series
- Light Color Visible red
- Shape Cylindrical threaded/barrel
- Response time 1.5ms / 0.0015 s
- Material thermoplastic housing Acrylic lns. PVC (connector)
- Primary brand Banner Engineering
- Digital outputs 1 x digital output (NPN transistor)
- Wavelength 624 nm
- Operating mode Light-ON Dark-ON
- Degree of protection IP67
- Thread size M18
- Ambient air temperature for operation -40...+70 °C
- Product series / family name M18 barrel series
- Equivalent to S182VNFF30Q5
- Functions Fixed-field photo-electric sensor green LED (power ON) 2 x yellow LED (output conducting)
- Order code / Manufacturer SKU 91062
- Design background suppression system
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Connection type Pre-wired with 6" / 150mm pigtail terminated with 4-pin Euro-style M12 connector
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of S18-2VNFF30-Q5 on Powermatic Associates is $104.00. Order now.
About the product
Banner Engineering S18-2VNFF30-Q5 is a fixed-field photo-electric sensor from the S18-2 series, designed with a background suppression system. This sensor features a thermoplastic housing, acrylic lens, and a PVC connector, ensuring durability and longevity. It is pre-wired with a 6" / 150mm pigtail that terminates with a 4-pin Euro-style M12 connector for easy installation. The sensor operates on a supply voltage range of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values, and can function within an ambient air temperature range of -40 to +70°C. It boasts an IP67 degree of protection, making it suitable for harsh environments. The S18-2VNFF30-Q5 has a cylindrical threaded/barrel shape with an M18 thread size, and it is equipped with one digital output (NPN transistor). It offers a sensing distance of 30mm and uses visible red light with a wavelength of 624 nm for detection. The sensor's response time is quick at 1.5ms / 0.0015 s, and it supports both Light-ON and Dark-ON operating modes, providing flexibility for various applications.
