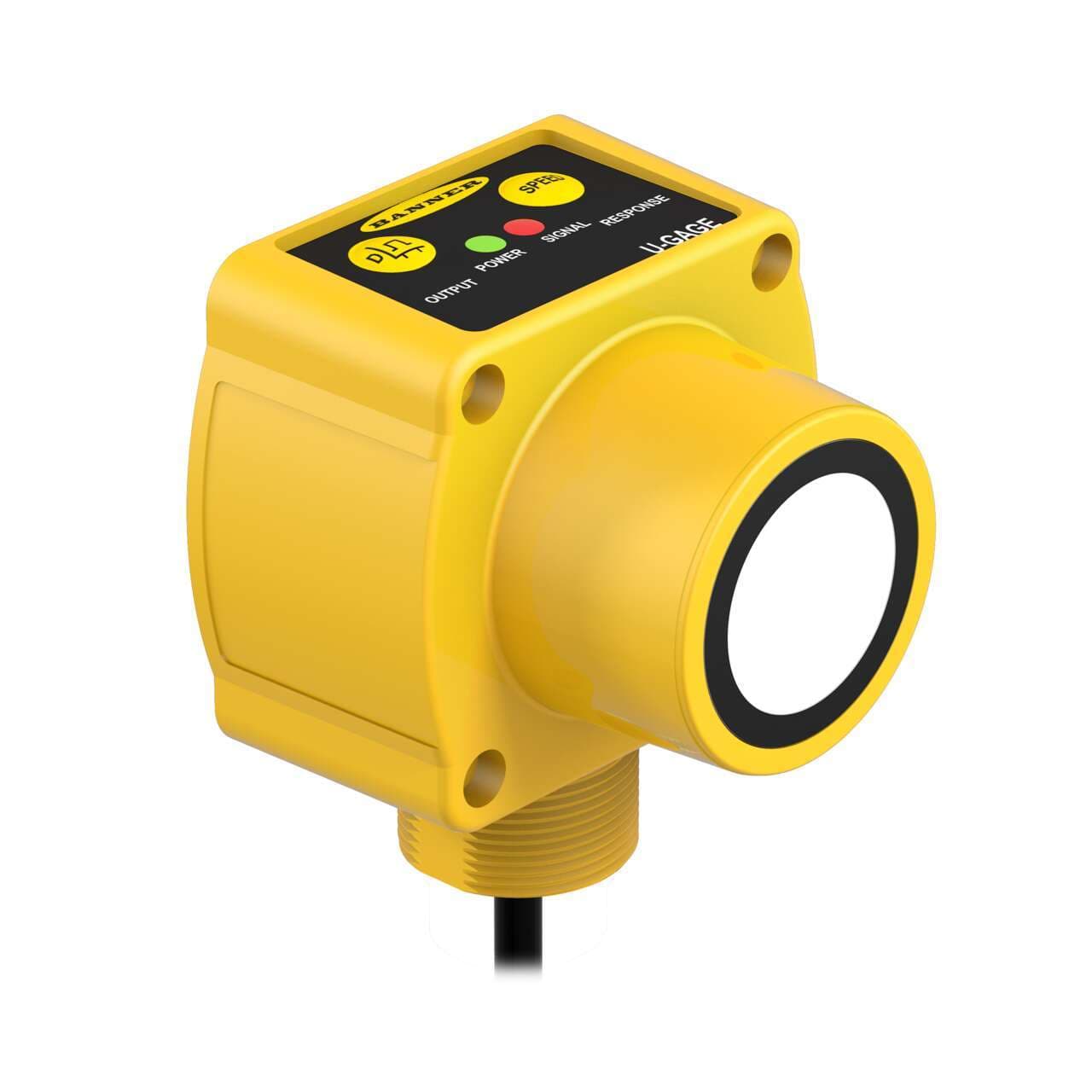

QT50UVR3W Banner Ultrasonic Sensors

Product Details

• Weight
  471.73568 g
• Country Of Origin
  US
• 1-wire Serial Interface
  No
• Profibus
  No
• SSI
  No
• Wireless
  No
• RS-485
  No
• RS-422
  No
• RS-232
  No
• PROFINET
  No
• Common Ethernet Protocol
  No
• Application: Ultrasonic
  Yes
• IO Link
  No
• Feature: Remote Teach
  Yes
• Feature: Chemical Resistant
  No
• Feature: Timing (Hold/Delay)
  No
• Feature: Clear Object Detection
  Yes
• Supply Protection Circuitry
  Protected against reverse polarity and transient overvoltages
• Power/Current Consumption (exclusive of load)
  1.5 W max
• Ultrasonic Frequency (kHz)
  75
Minimum Window Size (mm)
20
Discrete Output Hysteresis (mm)
5
Rep Rate (ms)
96
Minimum Response Time (ms)
100
Temp. Warm-up Drift (Notes 2)
After 25 min, the sensing position will be stable.
Temp. Warm-up Drift (Notes 1)
After 5 min, the apparent switchpoint is < 0.6% of the actual position.
Temperature Warm-up Drift upon Power-up
< 7% of the sensing distance upon power-up.
Warm-up Time (minutes)
30
Max Op. Relative Humidity Non-Condensing (%)
100
Min Operating Temperature (°C)
-20
Max Operating Temperature (°C)
70
Storage Temperature (°C)
-40 to 90
NEMA Rating
NEMA 6P
Output Protection
Protected against short circuit conditions
IP Rating
IP67
Discrete (Switched) Outputs
SPDT e/m Relay
Max Discrete (Switched) Output (mA)
8000
Mechanical Shock
IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Vibration
MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Number of Pins
5
Temperature Effect (mm/°C)
Uncompensated: 0.2% of distance/°C; Compensated: 0.02% of distance/°C
Adjustments
Push Button (s)
Analog Resolution/Discrete Repeatability
1
Quick Disconnect Type
No QD
Max Sensing Distance (mm)
8000
Power Supply
85-264 V ac / 48-250 V dc
Minimum Sensing Distance (mm)
200
Connection
Flying Leads
Delay at Power-up (ms)
1500
Input/Output
E/M Relay
Indicator
LED(s)
Primary Housing Material
PBT
Sensing Mode (General)
Proximity
Sensing Mode (Detailed)
Time of Flight
Cable Length (m)
2
Sensing Beam
Ultrasonic
Max Measurement Range
>1 m - <=20 m
PC Configurable
No
Power
AC/DC Universal
Device Type
Sensor
Housing Style
Rectangular
Primary brand
Banner Engineering
Supply voltage (DC)
48Vdc-250Vdc (120Vdc nom.)
Thread size
M30
Supply voltage (AC)
85Vac-264Vac (200Vac / 220Vac / 240Vac nom.)
Shape
Rectangular
Degree of protection
IP67 NEMA 6P
Product series / family name
U-GAGE series
Main function
Sensor (Distance)
Functions

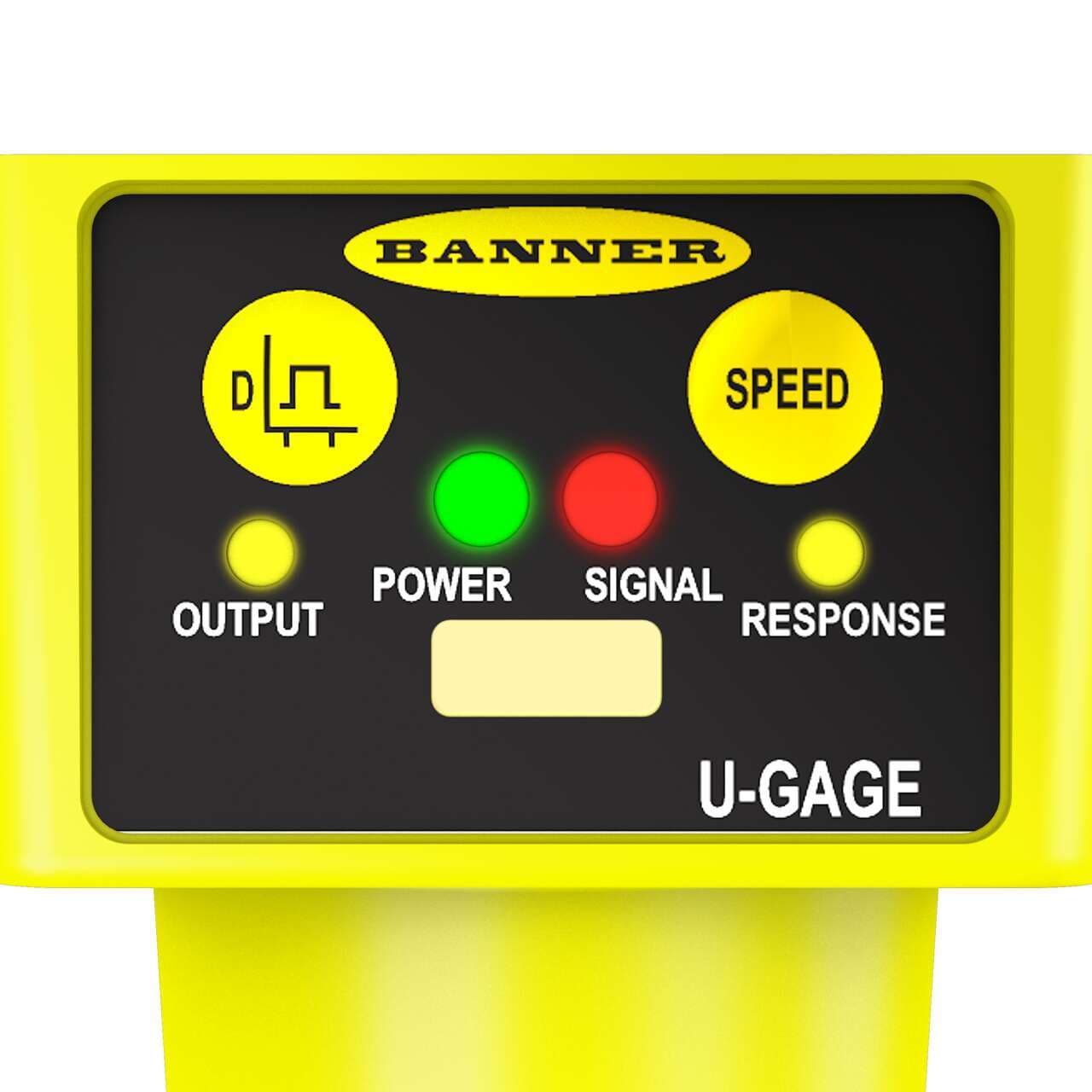

Ultrasonic distance sensor green LED (power ON) amber LED (output state) red LED (signal)
Connection type
Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
Ambient air temperature for operation
-20...+70 °C
Compliant with standard(s)
CE
Sub-range name
QT50UVR series
Sensing distance
20cm...8m
Digital outputs
1 x digital output (SPDT contact type)
Order code / Manufacturer SKU
72477
Design
time-of-flight system
Mounting mode
Threaded mount
Protection functions
Short-circuit
Material
thermoplastic housing
Emission frequency
75kHz
