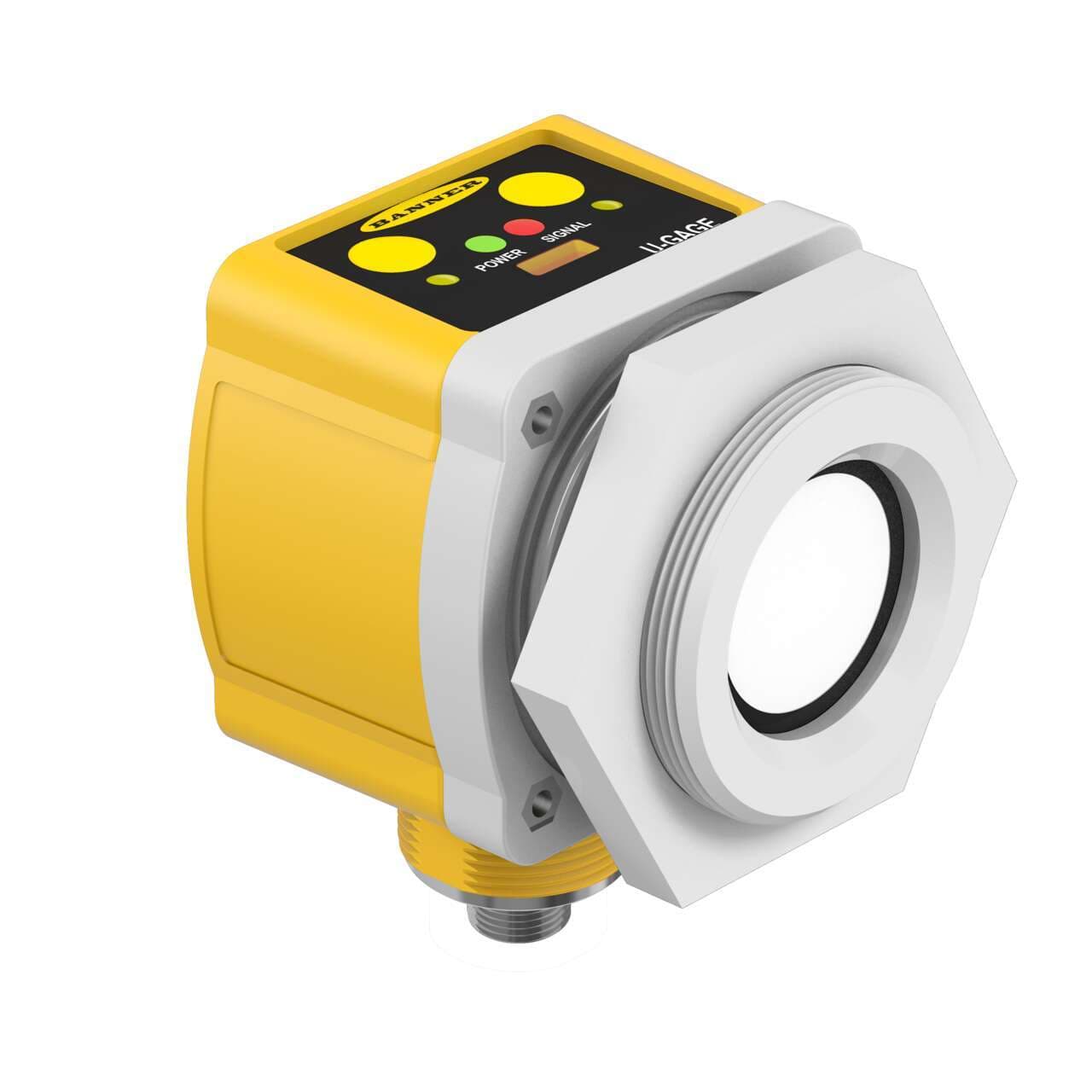

QT50UDBQ6-CRFV Banner Ultrasonic Sensors

Product Details

• Weight
  544.3104 g
• Country Of Origin
  US
• 1-wire Serial Interface
  No
• IO Link
  No
• Profibus
  No
• Wireless
  No
• SSI
  No
• RS-232
  No
• PROFINET
  No
• RS-485
  No
• RS-422
  No
• Common Ethernet Protocol
  No
• Application: Ultrasonic
  Yes
• Feature: Pump-in/ Pump-out
  Yes
• Feature: Chemical Resistant
  Yes
• Feature: Timing (Hold/Delay)
  No
• Feature: Clear Object Detection
  Yes
• Feature: Remote Teach
  Yes
• Supply Protection Circuitry
  Protected against reverse polarity and transient overvoltages
• Power/Current Consumption (exclusive of load)
  100 mA max @ 10 V dc; 40 mA max @ 30 V dc
Max Off-state Leakage Current (µA)
5
Ultrasonic Frequency (kHz)
75
Discrete Output Hysteresis (mm)
5
Minimum Window Size (mm)
20
Barrel Diameter (mm)
56
Rep Rate (ms)
96
Minimum Response Time (ms)
100
Max Op. Relative Humidity Non-Condensing (%)
100
Warm-up Time (minutes)
15
Min Operating Temperature (°C)
-20
Max Operating Temperature (°C)
70
Storage Temperature (°C)
-40 to 90
NEMA Rating
NEMA 6P
IP Rating
IP67
Output Protection
Protected against short circuit conditions
Max Discrete (Switched) Output (mA)
150
Discrete (Switched) Outputs
2 NPN/PNP Configurable
Output Saturation Voltage NPN Outputs
< 0.2 V at 10 mA; < 0.65 V at 150 mA
Output Saturation Voltage PNP Outputs
< 1.2 V at 10 mA; < 1.65 V at 100 mA
Mechanical Shock
IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Vibration
MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Number of Pins
5
Temperature Effect (mm/°C)
Uncompensated: 0.2% of distance/°C; Compensated: 0.02% of distance/°C
Adjustments
Push Button (s)
Delay at Power-up (ms)
1500
Minimum Sensing Distance (mm)
200
Power Supply
10-30 V dc
Max Sensing Distance (mm)
6000
Analog Resolution/Discrete Repeatability
1
Quick Disconnect Type
M12 (Euro)
Connection
Integral QD
Indicator
LED(s)
Input/Output
Discrete
Device Type
Sensor
Primary Housing Material
PBT
Housing Style
Rectangular
Power
DC
Sensing Mode (Detailed)
Time of Flight
PC Configurable
No
Max Measurement Range
>1 m - <=20 m
Sensing Mode (General)
Proximity
Sensing Beam
Ultrasonic
Main function
Sensor (Distance)
Shape
Rectangular
Protection functions
Short-circuit
Design
time-of-flight system
Mounting mode
Threaded mount
Equivalent to
QT50UDBQ6CRFV
Primary brand
Banner Engineering
Supply voltage (DC)
10Vdc-30Vdc (12Vdc / 24Vdc nom.)
Connection type
Pre-equipped with 5-pin Euro-style M12 connector
Digital outputs
2 x digital outputs (PNP/NPN transistors)
Order code / Manufacturer SKU
77351
Product series / family name
U-GAGE series
Functions
Ultrasonic distance sensor green LED (power ON) amber LED (output state) red LED (signal)
Thread size
M30
Material
thermoplastic housing
Compliant with standard(s)
CE
Ambient air temperature for operation
-20...+70 °C
Emission frequency
75kHz
Chemical resistance
chemical-resistant
Sensing distance
20cm...6m
Sub-range name
QT50UDB series
Degree of protection
IP67 NEMA 6P
