QS30LLPC W/30

Banner

Product Lifecycle: Active

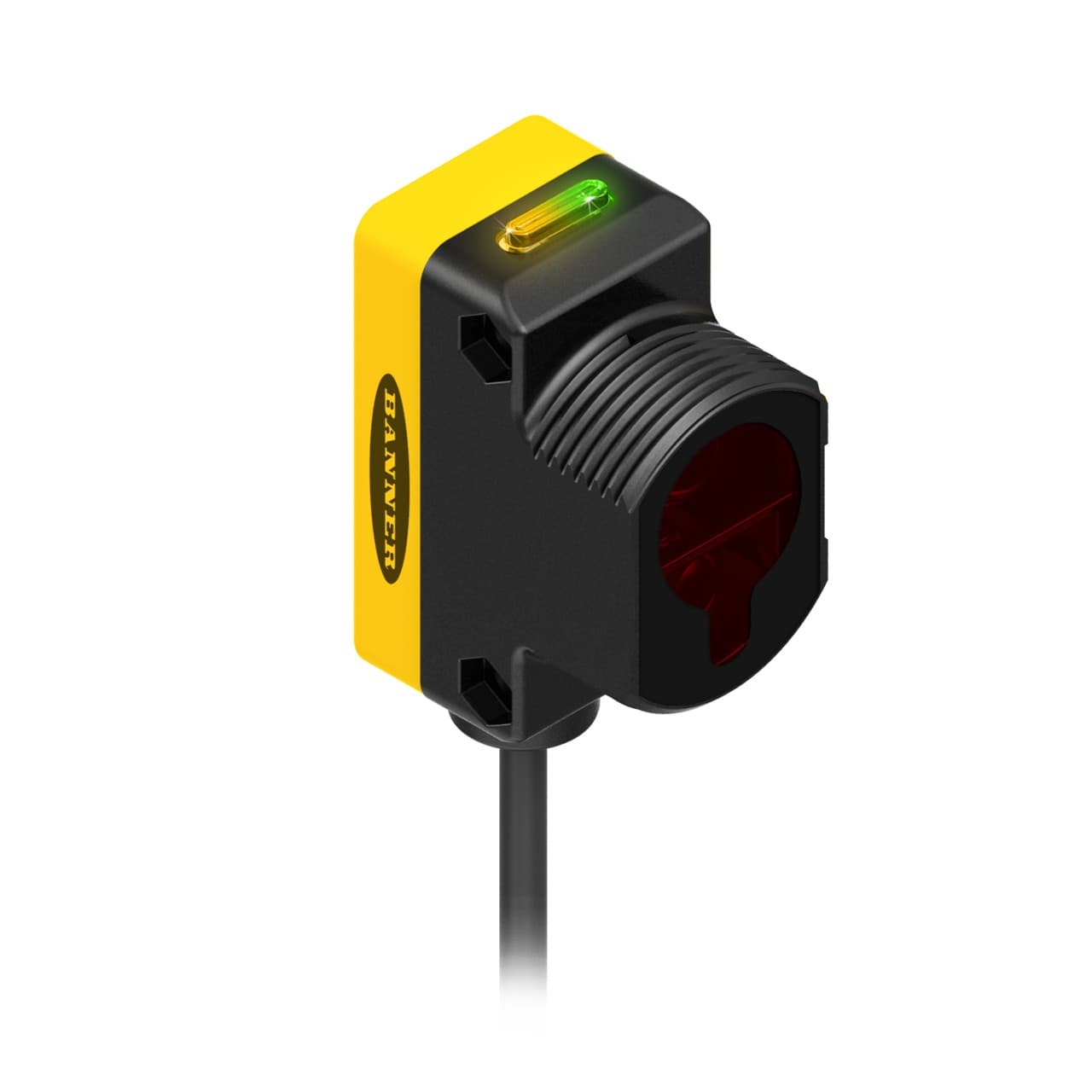

Banner Engineering QS30LLPC W/30 is a polarized Class 1 laser photo-electric sensor designed for retro-reflective mode operation with TEACH mode functionality. It features an M30 threaded mount for secure installation and is equipped with a pre-wired 30ft / 9m cable that terminates with bare end flying leads for easy connection. This sensor operates within an ambient air temperature range of -20 to +60°C and is housed in a thermoplastic casing with an acrylic lens, ensuring durability. The QS30LLPC series sensor offers a sensing distance of 20cm to 18m and utilizes visible red light for detection. It supports both Light-ON and Dark-ON operating modes and provides a single digital output (PNP/NPN transistor) for signal processing. With a rapid response time of 0.5ms, this sensor is designed to meet various detection needs. It operates on a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values, and is protected to IP67 and NEMA 6 standards, ensuring resilience in challenging environments.

QS30LLPC W/30

Banner Engineering QS30LLPC W/30 is a polarized Class 1 laser photo-electric sensor designed for retro-reflective mode operation with TEACH mode functionality. It features an M30 threaded mount for secure installation and is equipped with a pre-wired 30ft / 9m cable that terminates with bare end flying leads for easy connection. This sensor operates within an ambient air temperature range of -20 to +60°C and is housed in a thermoplastic casing with an acrylic lens, ensuring durability. The QS30LLPC series sensor offers a sensing distance of 20cm to 18m and utilizes visible red light for detection. It supports both Light-ON and Dark-ON operating modes and provides a single digital output (PNP/NPN transistor) for signal processing. With a rapid response time of 0.5ms, this sensor is designed to meet various detection needs. It operates on a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values, and is protected to IP67 and NEMA 6 standards, ensuring resilience in challenging environments.

QS30LLP CABLE.stp

QS30LLP CABLE.pdf

WORLD-BEAM QS30 Laser Retroreflective Series -- Datasheet.pdf

Product details

QS30LLP CABLE.stp

QS30LLP CABLE.pdf

WORLD-BEAM QS30 Laser Retroreflective Series -- Datasheet.pdf

Power Supply/Supply Voltage10-30 V dc
Laser ClassificationClass 1
Max Sensing Distance (mm)18000
Cable Length (m)9
Small Visible SpotLaser
Primary Housing MaterialThermoplastic

Housing StyleRectangular w/M30 Mount

Sensing Mode (Detailed)Polarized

IO LinkNo

DeviceNetNo

Feature: Chemical ResistantNo

Feature: AudibleNo

Feature: Hazardous AreaNo

Feature: EncapsulatedNo

Feature: Timing (Hold/Delay)No

IndicatorBargraph

Opposed Mode Emitter/ReceiverN/A

Barrel Diameter (mm)30

AdjustmentsTeach Button

Lens MaterialAcrylic

Max Op. Relative Humidity [%]95% @ 50°C

IP RatingIP67

NEMA RatingNEMA 6

Repeatability (µs)70

Number of Pins5

Delay at Power-up (ms)1000

Sensing Beam Wavelength650

Special Feature: Water DetectionNo

Special Feature: Remote TeachYes

Special Feature: Intrinsically SafeNo

Max Op. Temp. (°C)50

Output response time (ms)0.5

OperationLight/Dark Operate

Min Op. Temp. (°C)-10

Quick Disconnect TypeNo QD

ConnectionCable

OutputsBipolar (NPN & PNP)

Input/OutputDiscrete

Sensing Mode (General)Retroreflective

PowerDC

Sensing BeamVisible Red Laser
