QS30FF400 W/30

Banner

Product Lifecycle: Active

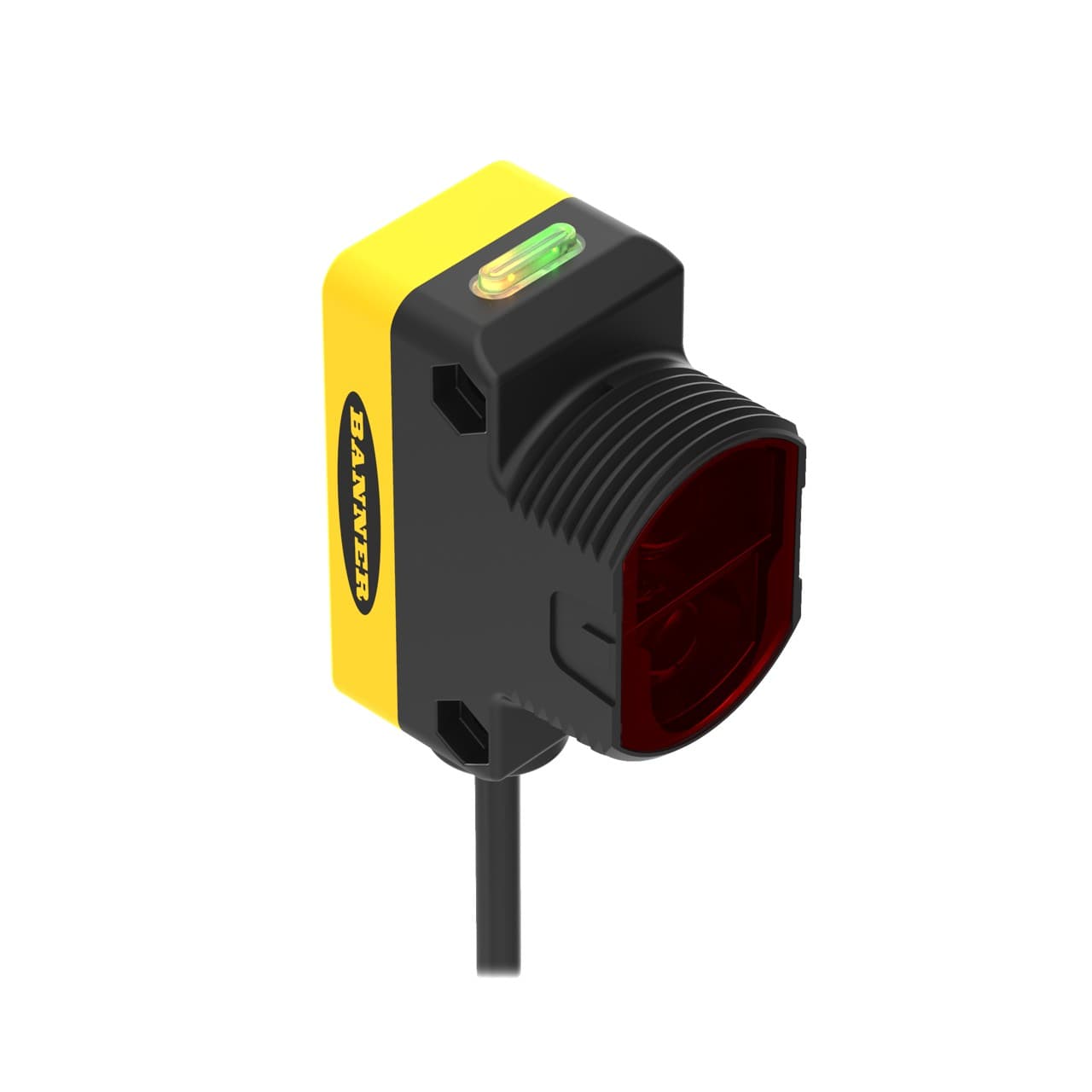

Banner Engineering QS30FF400 W/30 is a fixed-field photo-electric sensor designed for precise detection tasks. It features an M30 threaded mount for secure installation and operates within an ambient air temperature range of -20 to +70°C. This sensor is equipped with a background suppression system and comes pre-wired with a 30ft / 9m cable that terminates with bare end flying leads, facilitating easy integration into various setups. Part of the QS30 DC voltage series, it offers a degree of protection rated at IP67 NEMA 6, ensuring durability in harsh environments. The sensor operates on a supply voltage of 10Vdc-30Vdc, with 12Vdc / 24Vdc as nominal values. Its rectangular shape is constructed from a thermoplastic housing with an acrylic lens, and it can detect objects up to 400mm away. The QS30FF400 W/30 emits visible red light and supports both Light-ON and Dark-ON operating modes. It features a single digital output (PNP/NPN transistor) and boasts a quick response time of 2ms / 0.002 s.

QS30FF400 W/30

Banner Engineering QS30FF400 W/30 is a fixed-field photo-electric sensor designed for precise detection tasks. It features an M30 threaded mount for secure installation and operates within an ambient air temperature range of -20 to +70°C. This sensor is equipped with a background suppression system and comes pre-wired with a 30ft / 9m cable that terminates with bare end flying leads, facilitating easy integration into various setups. Part of the QS30 DC voltage series, it offers a degree of protection rated at IP67 NEMA 6, ensuring durability in harsh environments. The sensor operates on a supply voltage of 10Vdc-30Vdc, with 12Vdc / 24Vdc as nominal values. Its rectangular shape is constructed from a thermoplastic housing with an acrylic lens, and it can detect objects up to 400mm away. The QS30FF400 W/30 emits visible red light and supports both Light-ON and Dark-ON operating modes. It features a single digital output (PNP/NPN transistor) and boasts a quick response time of 2ms / 0.002 s.

WORLD-BEAM QS30 Standard Series, DC Models -- Datasheet.pdf

QS30FF CABLE.stp

QS30FF CABLE.pdf

Product details

WORLD-BEAM QS30 Standard Series, DC Models -- Datasheet.pdf

QS30FF CABLE.stp

QS30FF CABLE.pdf

IO LinkNo
DeviceNetNo
Feature: EncapsulatedNo
Feature: Timing (Hold/Delay)No
Feature: Chemical ResistantNo
Feature: Hazardous AreaNo

Feature: AudibleNo

Opposed Mode Emitter/ReceiverN/A

IndicatorLEDs

Barrel Diameter (mm)30

AdjustmentsN/A

Lens MaterialAcrylic

Max Op. Relative Humidity [%]95% @ 50°C

Number of Pins5

NEMA RatingNEMA 6

Repeatability (µs)500

Sensing Beam Wavelength680

Delay at Power-up (ms)100

Special Feature: Remote TeachNo

Special Feature: Water DetectionNo

Special Feature: Intrinsically SafeNo

Output response time (ms)2

Min Op. Temp. (°C)-20

OperationLight/Dark Operate

ConnectionCable

Power Supply/Supply Voltage10-30 V dc

Max Op. Temp. (°C)70

OutputsBipolar (NPN & PNP)

Housing StyleRectangular w/M30 Mount

Sensing BeamVisible Red LED

PowerDC

Sensing Mode (General)Proximity

Input/OutputDiscrete

IP RatingIP67

Quick Disconnect TypeNo QD

Max Sensing Distance (mm)400

Sensing Mode (Detailed)Background Suppression (Fixed)

Primary Housing MaterialThermoplastic

Cable Length (m)9
