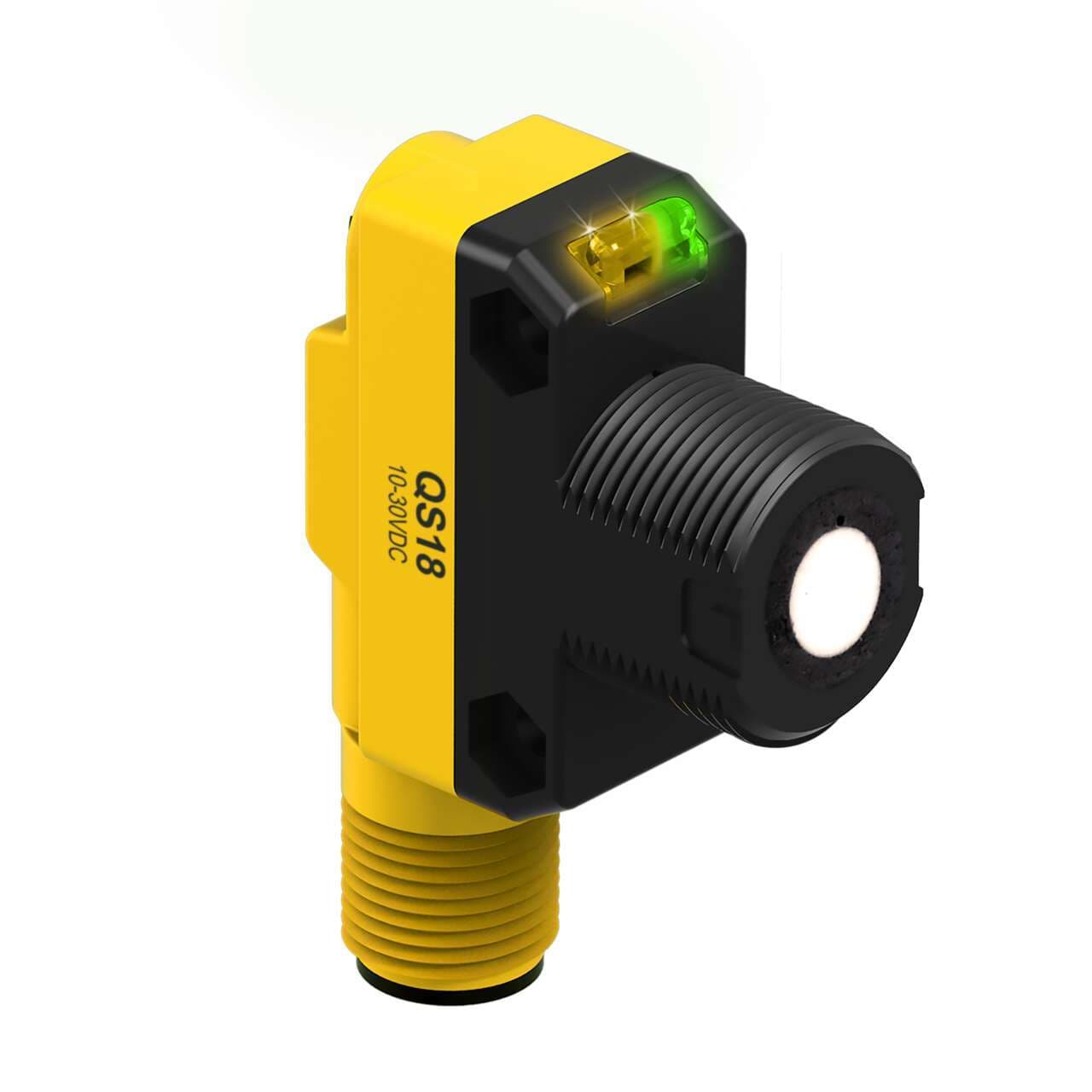

QS18UPAEQ8 Banner Ultrasonic Sensors
Part#:QS18UPAEQ8
Manufacturer:Banner
Alt. Part#:73166
Product Lifecycle:Active
Get a quick Quote!
WORLD-BEAM QS18U: Ultrasonic remote TEACH; Range: 50-500 mm; Input: 12-30 V dc; Output: PNP; Epoxy-encapsulated; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Ultrasonic Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the QS18UPAEQ8 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight 22.6796 g
- Country Of Origin CN
- Wireless No
- 1-wire Serial Interface No
- RS-232 No
- Feature: Timing (Hold/Delay) No
- RS-485 No
- Profibus No
- SSI No
- PROFINET No
- RS-422 No
- IO Link No
- Common Ethernet Protocol No
- Feature: Chemical Resistant No
- Application: Ultrasonic Yes
- Feature: Clear Object Detection Yes
- Feature: Remote Teach Yes
- Max Off-state Leakage Current (µA) PNP: < 5
- Discrete Output Hysteresis (mm) 1.4
- Supply Protection Circuitry Protected against reverse polarity and transient overvoltages
- Ultrasonic Frequency (kHz) 300
- Power/Current Consumption (exclusive of load) 25 mA max
- Minimum Window Size (mm) 5
- Barrel Diameter (mm) 18
- Minimum Response Time (ms) 15
- Rep Rate (ms) 7.5
- Warm-up Time (minutes) 5
- Max Op. Relative Humidity Non-Condensing (%) 100
- Min Operating Temperature (°C) -20
- Max Operating Temperature (°C) 60
- Storage Temperature (°C) -40 to 85
- NEMA Rating NEMA 6P
- IP Rating IP68
- Output Protection Protected against short circuit conditions
- Discrete (Switched) Outputs 1 PNP
- Max Discrete (Switched) Output (mA) 100
- Output Saturation Voltage PNP Outputs < 2.0 V at 100 mA
- Output Saturation Voltage NPN Outputs < 1.6 V at 100 mA
- Number of Pins 4
- Mechanical Shock IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
- Adjustments Remote Teach
- Temperature Effect (mm/°C) +/- 0.05% of sensing distance/°C from 0 °C to +60 °C, +/- 1% of sensing distance/°C from -20 °C to 0 °C
- Vibration MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
- Delay at Power-up (ms) 300
- Power Supply 12-30 V dc
- Minimum Sensing Distance (mm) 50
- Max Sensing Distance (mm) 500
- Connection Integral QD
- Analog Resolution/Discrete Repeatability 0.7
- Quick Disconnect Type M12 (Euro)
- Indicator LED(s)
- Input/Output Discrete
- Housing Style Rectangular w/M18 Mount
- Primary Housing Material ABS
- Sensing Beam Ultrasonic
- Device Type Sensor
- Sensing Mode (Detailed) Time of Flight
- PC Configurable No
- Max Measurement Range >100 mm - <=500 mm
- Sensing Mode (General) Proximity
- Power DC
- Main function Sensor (Distance)
- Primary brand Banner Engineering
- Supply voltage (DC) 12Vdc-30Vdc (24Vdc nom.)
- Design time-of-flight system
- Thread size M18
- Degree of protection IP68 NEMA 6P
- Product series / family name WORLD-BEAM series
- Sensing distance 50...500mm
- Digital outputs 1 x digital output (PNP transistor)
- Protection functions Short-circuit
- Sub-range name QS18U series
- Shape Rectangular
- Ambient air temperature for operation -20...+60 °C
- Order code / Manufacturer SKU 73166
- Functions Ultrasonic distance sensor green LED (power ON) yellow LED (output state) remote IP68 / NEMA 6 TEACH btn.
- Mounting mode Threaded mount
- Connection type Pre-equipped with 4-pin Euro-style M12 connector
- Material ABS housing
- Emission frequency 300kHz
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
QS18UPAEQ8 Description
Banner Engineering QS18UPAEQ8 is an ultrasonic distance sensor belonging to the QS18U series. It features a time-of-flight system with a remote IP68 / NEMA 6 TEACH button for easy setup. This sensor is designed with an M18 threaded mount for secure installation and operates within an ambient air temperature range of -20 to +60°C. It comes pre-equipped with a 4-pin Euro-style M12 connector for straightforward connectivity. The QS18UPAEQ8 operates on a supply voltage of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc, and is housed in an ABS material for durability. It has a rectangular shape and offers a sensing distance of 50 to 500mm, utilizing a 300kHz transmission frequency. This model includes 1 x digital output (PNP transistor) and is equipped with protection functions against short-circuit, ensuring its integrity during operation. The degree of protection provided is rated at IP68 and NEMA 6P, signifying its high resistance to dust and water ingress.
