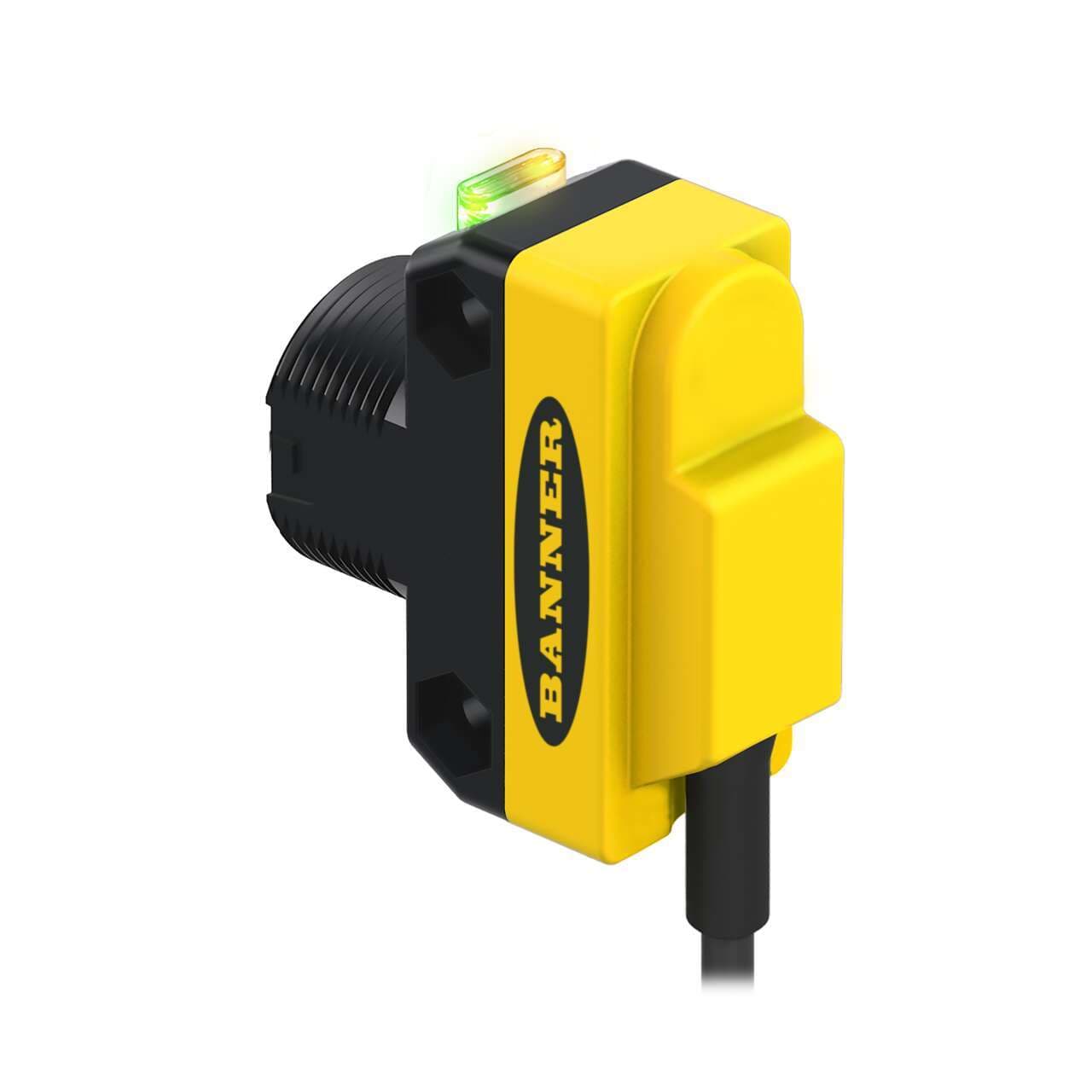

QS18UPAEQ5 Banner Ultrasonic Sensors

Product Details

• Weight
  81.64656 g
• Country Of Origin
  CN
• Profibus
  No
• SSI
  No
• 1-wire Serial Interface
  No
• Wireless
  No
• RS-485
  No
• RS-422
  No
• RS-232
  No
• PROFINET
  No
• IO Link
  No
• Common Ethernet Protocol
  No
• Application: Ultrasonic
  Yes
• Feature: Chemical Resistant
  No
• Feature: Timing (Hold/Delay)
  No
• Feature: Clear Object Detection
  Yes
• Feature: Remote Teach
  Yes
• Supply Protection Circuitry
  Protected against reverse polarity and transient overvoltages
• Power/Current Consumption (exclusive of load)
  25 mA max
• Max Off-state Leakage Current (µA)
  PNP: < 5
Minimum Window Size (mm)
5
Ultrasonic Frequency (kHz)
300
Rep Rate (ms)
7.5
Barrel Diameter (mm)
18
Max Op. Relative Humidity Non-Condensing (%)
100
Discrete Output Hysteresis (mm)
1.4
Minimum Response Time (ms)
15
Storage Temperature (°C)
-40 to 85
Max Operating Temperature (°C)
60
Warm-up Time (minutes)
5
Min Operating Temperature (°C)
-20
NEMA Rating
NEMA 6P
IP Rating
IP68
Output Protection
Protected against short circuit conditions
Discrete (Switched) Outputs
1 PNP
Adjustments
Remote Teach
Max Discrete (Switched) Output (mA)
100
Mechanical Shock
IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Output Saturation Voltage NPN Outputs
< 1.6 V at 100 mA
Output Saturation Voltage PNP Outputs
< 2.0 V at 100 mA
Vibration
MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Number of Pins
4
Temperature Effect (mm/°C)
+/- 0.05% of sensing distance/°C from 0 °C to +60 °C, +/- 1% of sensing distance/°C from -20 °C to 0 °C
Delay at Power-up (ms)
300
Analog Resolution/Discrete Repeatability
0.7
Power Supply
12-30 V dc
Max Sensing Distance (mm)
500
Connection
Pigtail QD
Minimum Sensing Distance (mm)
50
Quick Disconnect Type
M12 (Euro)
Indicator
LED(s)
Input/Output
Discrete
Primary Housing Material
ABS
Device Type
Sensor
Power
DC
Sensing Beam
Ultrasonic
Housing Style
Rectangular w/M18 Mount
Cable Length (m)
0.15
Sensing Mode (General)
Proximity
Sensing Mode (Detailed)
Time of Flight
Max Measurement Range
>100 mm - <=500 mm
PC Configurable
No
