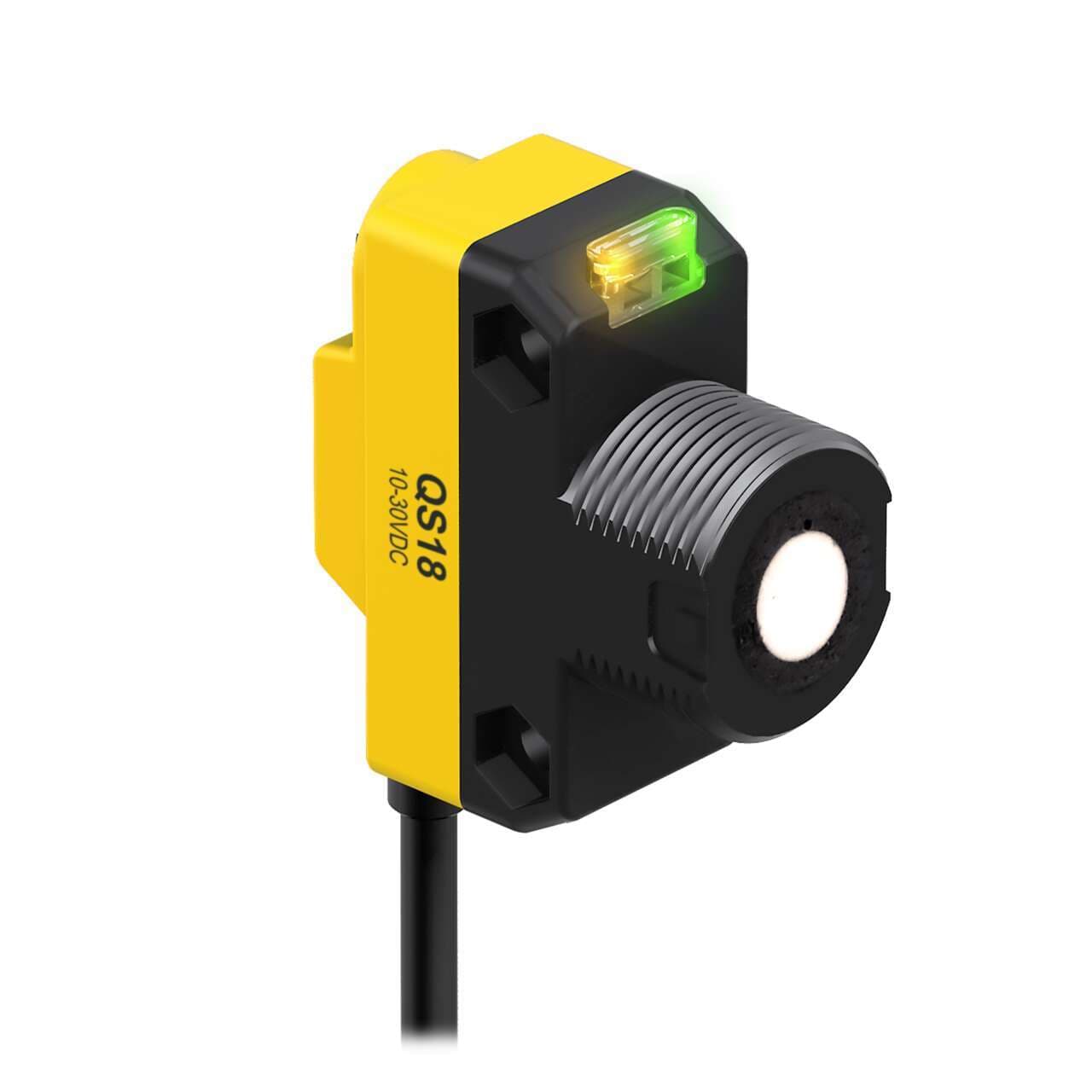

QS18UPAEQ Banner Ultrasonic Sensors
Part#:QS18UPAEQ
Manufacturer:Banner
Alt. Part#:73169
Product Lifecycle:Active
Get a quick Quote!
WORLD-BEAM QS18U: Ultrasonic remote TEACH; Range: 50-500 mm; Input: 12-30 V dc; Output: PNP; Epoxy-encapsulated; 150 mm (6 in) 4-pin M8 Pigtail QD
About the manufacturer: Banner is one of the manufacturers that offers Ultrasonic Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the QS18UPAEQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight 72.57472 g
- Country Of Origin CN
- Wireless No
- 1-wire Serial Interface No
- RS-485 No
- SSI No
- RS-232 No
- RS-422 No
- Common Ethernet Protocol No
- Feature: Chemical Resistant No
- Application: Ultrasonic Yes
- Supply Protection Circuitry Protected against reverse polarity and transient overvoltages
- Feature: Clear Object Detection Yes
- Power/Current Consumption (exclusive of load) 25 mA max
- Ultrasonic Frequency (kHz) 300
- Max Off-state Leakage Current (µA) PNP: < 5
- Minimum Window Size (mm) 5
- Minimum Response Time (ms) 15
- Warm-up Time (minutes) 5
- Min Operating Temperature (°C) -20
- Max Operating Temperature (°C) 60
- IP Rating IP68
- Discrete (Switched) Outputs 1 PNP
- Output Saturation Voltage NPN Outputs < 1.6 V at 100 mA
- Max Discrete (Switched) Output (mA) 100
- PROFINET No
- IO Link No
- Feature: Remote Teach Yes
- Feature: Timing (Hold/Delay) No
- Discrete Output Hysteresis (mm) 1.4
- Barrel Diameter (mm) 18
- Rep Rate (ms) 7.5
- Max Op. Relative Humidity Non-Condensing (%) 100
- Storage Temperature (°C) -40 to 85
- NEMA Rating NEMA 6P
- Output Saturation Voltage PNP Outputs < 2.0 V at 100 mA
- Mechanical Shock IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
- Output Protection Protected against short circuit conditions
- Vibration MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
- PC Configurable No
- Device Type Sensor
- Temperature Effect (mm/°C) +/- 0.05% of sensing distance/°C from 0 °C to +60 °C, +/- 1% of sensing distance/°C from -20 °C to 0 °C
- Number of Pins 4
- Housing Style Rectangular w/M18 Mount
- Sensing Mode (Detailed) Time of Flight
- Delay at Power-up (ms) 300
- Adjustments Remote Teach
- Power Supply 12-30 V dc
- Sensing Mode (General) Proximity
- Minimum Sensing Distance (mm) 50
- Cable Length (m) 0.15
- Max Sensing Distance (mm) 500
- Analog Resolution/Discrete Repeatability 0.7
- Max Measurement Range >100 mm - <=500 mm
- Power DC
- Connection Pigtail QD
- Quick Disconnect Type M8 (Pico)
- Indicator LED(s)
- Input/Output Discrete
- Primary Housing Material ABS
- Sensing Beam Ultrasonic
- Primary brand Banner Engineering
- Supply voltage (DC) 12Vdc-30Vdc (24Vdc nom.)
- Connection type Pre-wired with 6" / 150mm pigtail terminated with 4-pin Pico-style M8 connector
- Order code / Manufacturer SKU 73169
- Shape Rectangular
- Sub-range name QS18U series
- Thread size M18
- Material ABS housing
- Main function Sensor (Distance)
- Functions Ultrasonic distance sensor green LED (power ON) yellow LED (output state) remote IP68 / NEMA 6 TEACH btn.
- Design time-of-flight system
- Digital outputs 1 x digital output (PNP transistor)
- Profibus No
- Ambient air temperature for operation -20...+60 °C
- Protection functions Short-circuit
- Product series / family name WORLD-BEAM series
- Sensing distance 50...500mm
- Mounting mode Threaded mount
- Degree of protection IP68 NEMA 6P
- Emission frequency 300kHz
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
QS18UPAEQ Description
Banner Engineering QS18UPAEQ is an ultrasonic distance sensor belonging to the QS18U series. It features an M18 threaded mount for installation and operates within an ambient air temperature range of -20 to +60°C. This sensor is designed with a time-of-flight system and includes a remote IP68 / NEMA 6 TEACH button for easy setup. It connects via a pre-wired 6" / 150mm pigtail terminated with a 4-pin Pico-style M8 connector. The QS18UPAEQ offers a degree of protection rated at IP68 NEMA 6P and requires a supply voltage of 12Vdc to 30Vdc, with 24Vdc nominal. Its rectangular shape is constructed from ABS housing, ensuring durability. The sensor operates at a 300kHz transmission frequency and can detect distances ranging from 50 to 500mm. It is equipped with one digital output (PNP transistor) and includes protection against short-circuits.
