QS18UPAE Banner Ultrasonic Sensors
Part#:QS18UPAE
Manufacturer:Banner
Alt. Part#:73165
Product Lifecycle:Active
Get a quick Quote!

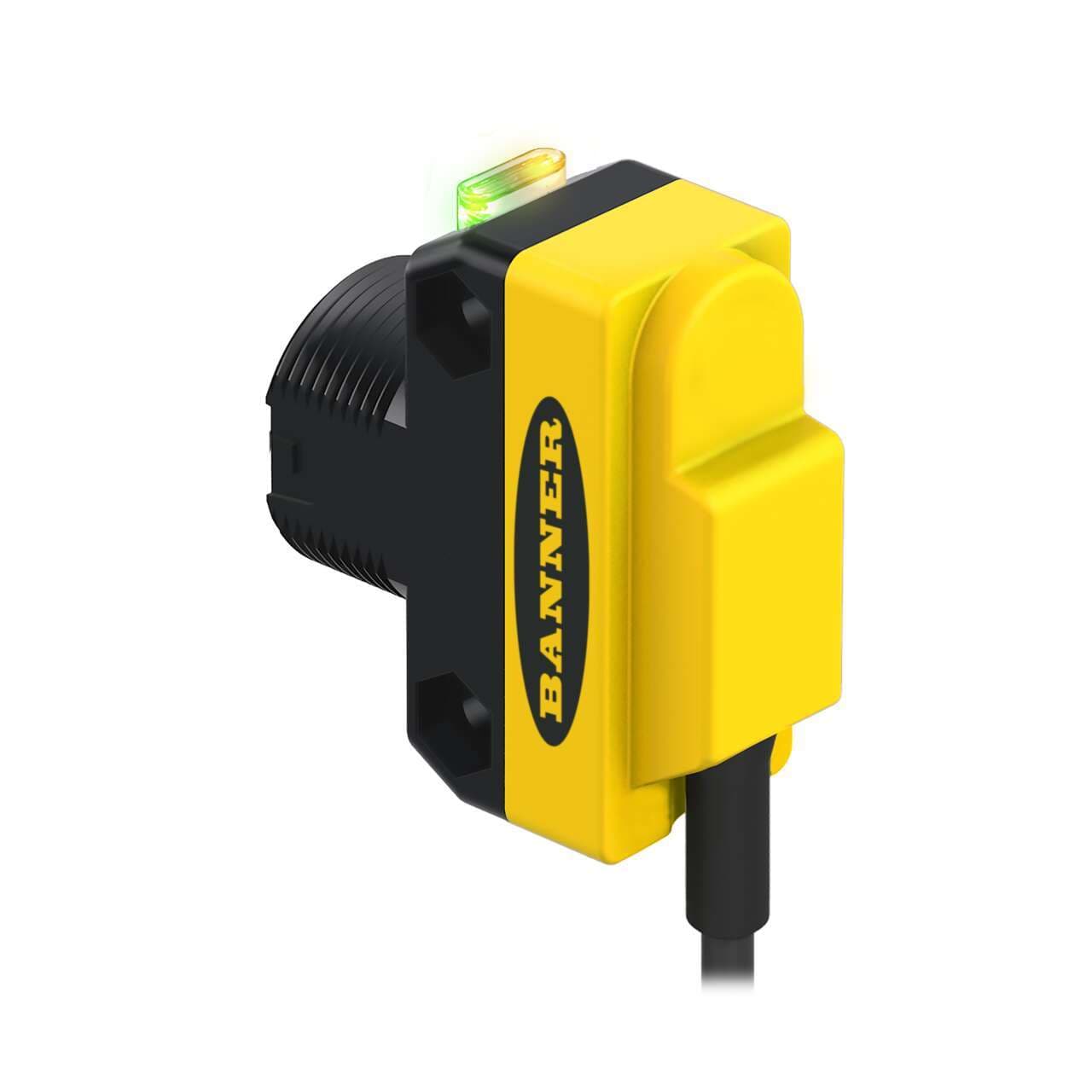

WORLD-BEAM QS18U: Ultrasonic remote TEACH; Range: 50-500 mm; Input: 12-30 V dc; Output: PNP; Epoxy-encapsulated; 2 m (6.5 ft) Cable
About the manufacturer: Banner is one of the manufacturers that offers Ultrasonic Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the QS18UPAE Banner price in the box on the right side or send a quick quote.
Product Details
- Weight 99.79024 g
- Country Of Origin CN
- Profibus No
- SSI No
- Wireless No
- Common Ethernet Protocol No
- Application: Ultrasonic Yes
- Feature: Clear Object Detection Yes
- Max Off-state Leakage Current (µA) NPN: < 10; PNP: < 5
- Barrel Diameter (mm) 18
- Warm-up Time (minutes) 5
- 1-wire Serial Interface No
- PROFINET No
- RS-485 No
- RS-422 No
- RS-232 No
- Feature: Timing (Hold/Delay) No
- IO Link No
- Feature: Chemical Resistant No
- Ultrasonic Frequency (kHz) 300
- Discrete Output Hysteresis (mm) 1.4
- Power/Current Consumption (exclusive of load) 25 mA max
- Feature: Remote Teach Yes
- Supply Protection Circuitry Protected against reverse polarity and transient overvoltages
- Minimum Response Time (ms) 15
- Max Operating Temperature (°C) 60
- Minimum Window Size (mm) 5
- Rep Rate (ms) 7.5
- Max Op. Relative Humidity Non-Condensing (%) 100
- Min Operating Temperature (°C) -20
- Output Protection Protected against short circuit conditions
- Discrete (Switched) Outputs 1 NPN
- IP Rating IP68
- Storage Temperature (°C) -40 to 85
- Max Discrete (Switched) Output (mA) 100
- Output Saturation Voltage NPN Outputs < 1.6 V at 100 mA
- NEMA Rating NEMA 6P
- Output Saturation Voltage PNP Outputs < 2.0 V at 100 mA
- Vibration MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
- Number of Pins 4
- Mechanical Shock IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
- Temperature Effect (mm/°C) +/- 0.05% of sensing distance/°C from 0 °C to +60 °C, +/- 1% of sensing distance/°C from -20 °C to 0 °C
- Adjustments Remote Teach
- Delay at Power-up (ms) 300
- Max Sensing Distance (mm) 500
- Power Supply 12-30 V dc
- Analog Resolution/Discrete Repeatability 0.7
- Minimum Sensing Distance (mm) 50
- Indicator LED(s)
- Quick Disconnect Type No QD
- Connection Flying Leads
- Input/Output Discrete
- Primary Housing Material ABS
- Cable Length (m) 2
- Sensing Mode (Detailed) Time of Flight
- Sensing Mode (General) Proximity
- Power DC
- Housing Style Rectangular w/M18 Mount
- Device Type Sensor
- PC Configurable No
- Max Measurement Range >100 mm - <=500 mm
- Sensing Beam Ultrasonic
- Main function Sensor (Distance)
- Sensing distance 50...500mm
- Shape Rectangular
- Sub-range name QS18U series
- Supply voltage (DC) 12Vdc-30Vdc (24Vdc nom.)
- Mounting mode Threaded mount
- Product series / family name WORLD-BEAM series
- Thread size M18
- Protection functions Short-circuit
- Primary brand Banner Engineering
- Functions Ultrasonic distance sensor green LED (power ON) yellow LED (output state) remote IP68 / NEMA 6 TEACH btn.
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Ambient air temperature for operation -20...+60 °C
- Degree of protection IP68 NEMA 6P
- Digital outputs 1 x digital output (NPN transistor)
- Order code / Manufacturer SKU 73165
- Material ABS housing
- Design time-of-flight system
- Emission frequency 300kHz
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
QS18UPAE Description
Banner Engineering QS18UPAE is an ultrasonic distance sensor belonging to the QS18U series. It features an M18 threaded mount for installation and operates within an ambient air temperature range of -20 to +60°C. This sensor is designed with a time-of-flight system and includes a remote IP68 / NEMA 6 TEACH button for easy setup. It comes pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads for connection. The QS18UPAE operates on a supply voltage of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc, and is housed in an ABS material for durability. It has a rectangular shape and utilizes a 300kHz transmission frequency for sensing distances between 50mm and 500mm. This model is equipped with one digital output (PNP transistor) and includes protection functions against short-circuiting. The degree of protection provided is rated at IP68 NEMA 6P, ensuring its operation in various environmental conditions.
