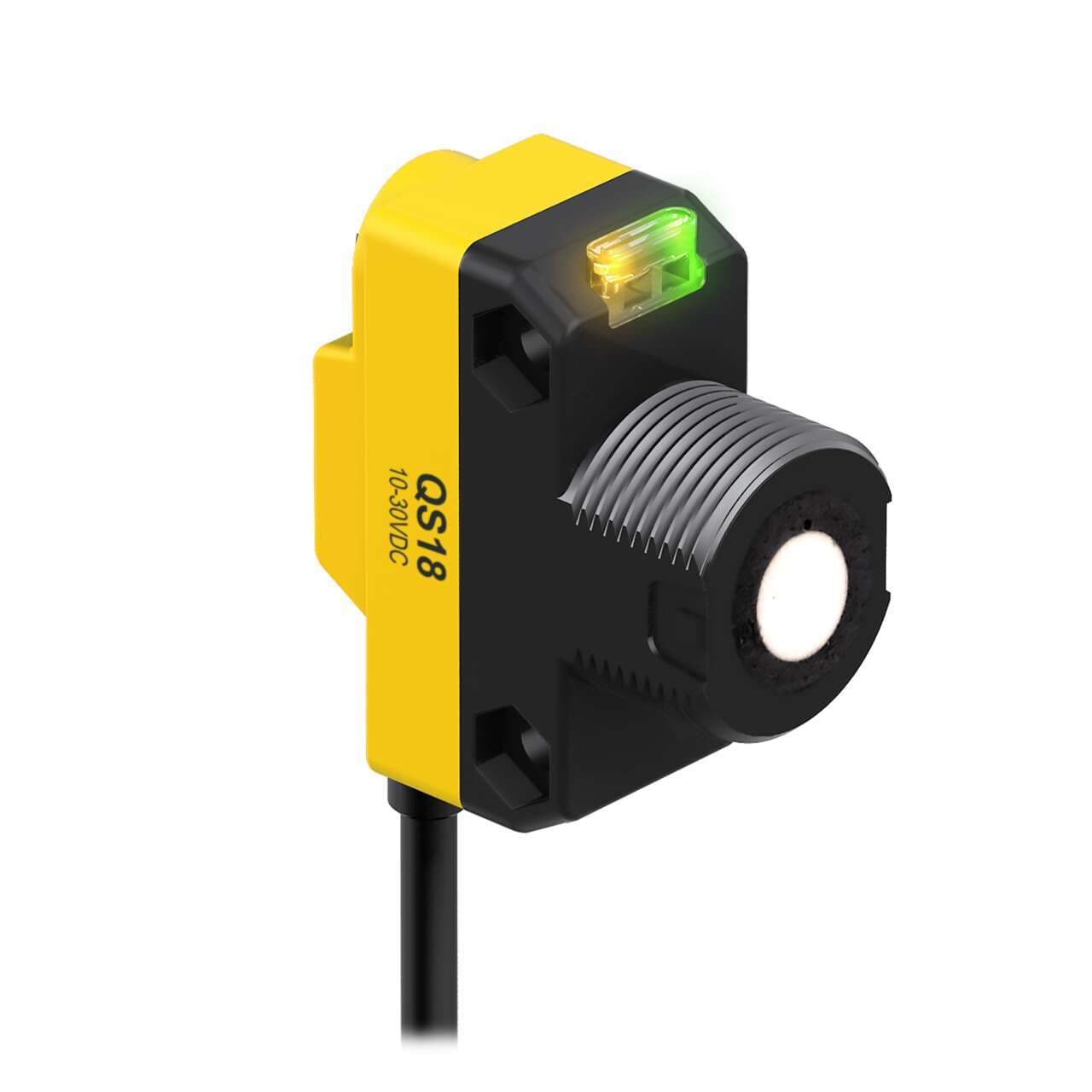

QS18UPA W/30 Banner Ultrasonic Sensors

Name: QS18UPA W/30
Brand: Banner
Price: 202 USD
Availability: BackOrder

Part#:QS18UPA W/30

Alt. Part#:74217

Manufacturer:Banner

Category:Ultrasonic Sensors

Product Lifecycle:Active

Product description

WORLD-BEAM QS18U: Ultrasonic TEACH mode; Range: 50-500 mm; Input: 12-30 V dc; Output: PNP; 9 m (30 ft) Cable

Product Details

Weight
208.65232 g
Country Of Origin
CN
Profibus
No
RS-485
No
Supply Protection Circuitry
Protected against reverse polarity and transient overvoltages
1-wire Serial Interface
No
Wireless
No
SSI
No
RS-422
No
PROFINET
No
RS-232
No
Application: Ultrasonic
Yes
IO Link
No
Feature: Chemical Resistant
No
Common Ethernet Protocol
No
Feature: Timing (Hold/Delay)
No
Feature: Clear Object Detection
Yes
Feature: Remote Teach
Yes
Power/Current Consumption (exclusive of load)
25 mA max
Rep Rate (ms)
7.5

Ultrasonic Frequency (kHz)

300

Max Off-state Leakage Current (µA)

PNP: < 5

Discrete Output Hysteresis (mm)

1.4

Minimum Window Size (mm)

Barrel Diameter (mm)

Minimum Response Time (ms)

Warm-up Time (minutes)

Max Op. Relative Humidity Non-Condensing (%)

100

Min Operating Temperature (°C)

-20

Max Operating Temperature (°C)

NEMA Rating

NEMA 6P

IP Rating

IP67

Output Protection

Protected against short circuit conditions

Output Saturation Voltage PNP Outputs

< 2.0 V at 100 mA

Discrete (Switched) Outputs

1 PNP

Max Discrete (Switched) Output (mA)

100

Output Saturation Voltage NPN Outputs

< 1.6 V at 100 mA

Number of Pins

Mechanical Shock

IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave

Vibration

MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).

Delay at Power-up (ms)

300

Adjustments

Teach Button

Temperature Effect (mm/°C)

+/- 0.05% of sensing distance/°C from -20 °C to +50 °C, +/- 0.1% of sensing distance/°C from +50 °C to +60 °C

Power Supply

12-30 V dc

Max Sensing Distance (mm)

500

Connection

Flying Leads

Analog Resolution/Discrete Repeatability

0.7

Minimum Sensing Distance (mm)

Quick Disconnect Type

No QD

Indicator

LED(s)

Input/Output

Discrete

Primary Housing Material

ABS

Device Type

Sensor

Sensing Mode (Detailed)

Time of Flight

Housing Style

Rectangular w/M18 Mount

Max Measurement Range

>100 mm - <=500 mm

Cable Length (m)

Sensing Mode (General)

Proximity

Power

PC Configurable

Sensing Beam

Ultrasonic

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS18UPA W/30 on Powermatic Associates is $202.00. Order now.

About the product

Banner Engineering QS18UPA W/30 is an ultrasonic distance sensor belonging to the QS18U series. It features an M18 threaded mount for installation and operates within an ambient air temperature range of -20 to +60°C. This sensor is designed with a time-of-flight system and TEACH mode for precise distance measurement. It comes pre-wired with a 30ft / 9m cable that terminates with bare end flying leads for connectivity. The QS18UPA W/30 offers a degree of protection rated at IP67 NEMA 6P, ensuring durability in various environments. It requires a supply voltage of 12Vdc to 30Vdc, with 24Vdc nominal. The sensor has a rectangular shape and is constructed with an ABS housing for robustness. It operates at a 300kHz transmission frequency and can sense distances ranging from 50 to 500mm. Additionally, it is equipped with 1 x digital output (PNP transistor) and includes protection functions against short-circuiting.
