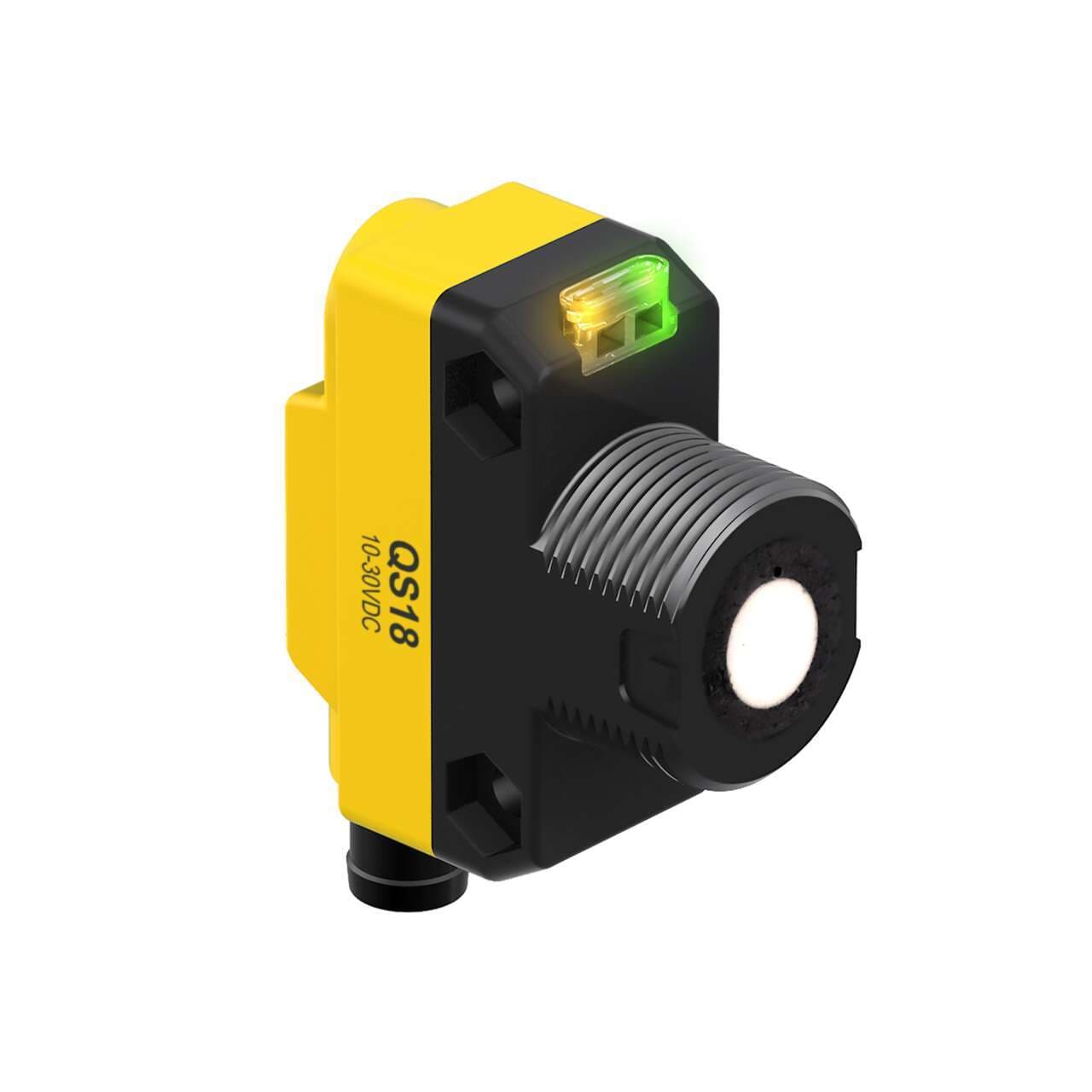

QS18UNAQ7 Banner Ultrasonic Sensors

Product Details

• Weight
  72.57472 g
• Country Of Origin
  CN
• Common Ethernet Protocol
  No
• Profibus
  No
• 1-wire Serial Interface
  No
• Wireless
  No
• SSI
  No
• RS-422
  No
• RS-485
  No
• RS-232
  No
• PROFINET
  No
• IO Link
  No
• Application: Ultrasonic
  Yes
• Feature: Chemical Resistant
  No
• Feature: Clear Object Detection
  Yes
• Feature: Timing (Hold/Delay)
  No
• Supply Protection Circuitry
  Protected against reverse polarity and transient overvoltages
• Feature: Remote Teach
  Yes
• Power/Current Consumption (exclusive of load)
  25 mA max
• Max Off-state Leakage Current (µA)
  NPN: < 10; PNP: < 5
Ultrasonic Frequency (kHz)
300
Discrete Output Hysteresis (mm)
1.4
Rep Rate (ms)
7.5
Barrel Diameter (mm)
18
Minimum Window Size (mm)
5
Minimum Response Time (ms)
15
Warm-up Time (minutes)
5
Max Operating Temperature (°C)
60
Max Op. Relative Humidity Non-Condensing (%)
100
Min Operating Temperature (°C)
-20
NEMA Rating
NEMA 6P
IP Rating
IP67
Output Protection
Protected against short circuit conditions
Discrete (Switched) Outputs
1 NPN
Max Discrete (Switched) Output (mA)
100
Output Saturation Voltage PNP Outputs
< 2.0 V at 100 mA
Number of Pins
4
Vibration
MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Mechanical Shock
IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Output Saturation Voltage NPN Outputs
< 1.6 V at 100 mA
Temperature Effect (mm/°C)
+/- 0.05% of sensing distance/°C from -20 °C to +50 °C, +/- 0.1% of sensing distance/°C from +50 °C to +60 °C
Adjustments
Teach Button
Delay at Power-up (ms)
300
Power Supply
12-30 V dc
Max Sensing Distance (mm)
500
Indicator
LED(s)
Quick Disconnect Type
M12 (Euro)
Minimum Sensing Distance (mm)
50
Analog Resolution/Discrete Repeatability
0.7
Connection
Integral QD
Input/Output
Discrete
Primary Housing Material
ABS
Device Type
Sensor
Max Measurement Range
>100 mm - <=500 mm
Sensing Beam
Ultrasonic
Sensing Mode (Detailed)
Time of Flight
Housing Style
Rectangular w/M18 Mount
PC Configurable
No
Sensing Mode (General)
Proximity
Power
DC
Design
time-of-flight system
Connection type
Pre-equipped with 4-pin Euro-style M12 connector
Degree of protection
IP67 NEMA 6P
Emission frequency
300kHz
Product series / family name
WORLD-BEAM series
Supply voltage (DC)
12Vdc-30Vdc (24Vdc nom.)
Shape
Rectangular
Ambient air temperature for operation
-20...+60 °C
Primary brand
Banner Engineering
Sub-range name
QS18U series
Functions
Ultrasonic distance sensor green LED (power ON) yellow LED (output state) TEACH mode
Thread size
M18
Mounting mode
Threaded mount
Order code / Manufacturer SKU
73152
Digital outputs
1 x digital output (NPN transistor)
Material
ABS housing
Main function
Sensor (Distance)
Sensing distance
50...500mm
Protection functions
Short-circuit
