Part#:QS18UNAQ

Manufacturer:Banner

Alt. Part#:73154

Product Lifecycle:Active

Get a quick Quote!

WORLD-BEAM QS18U: Ultrasonic TEACH mode; Range: 50-500 mm; Input: 12-30 V dc; Output: NPN; 150 mm (6 in) 4-pin M8 Pigtail QD

About the manufacturer: Banner is one of the manufacturers that offers Ultrasonic Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the QS18UNAQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    72.57472 g
  • Country Of Origin
    CN
  • PROFINET
    No
  • Profibus
    No
  • 1-wire Serial Interface
    No
  • RS-485
    No
  • SSI
    No
  • Wireless
    No
  • RS-422
    No
  • RS-232
    No
  • IO Link
    No
  • Application: Ultrasonic
    Yes
  • Common Ethernet Protocol
    No
  • Feature: Chemical Resistant
    No
  • Feature: Remote Teach
    Yes
  • Feature: Timing (Hold/Delay)
    No
  • Feature: Clear Object Detection
    Yes
  • Supply Protection Circuitry
    Protected against reverse polarity and transient overvoltages
  • Ultrasonic Frequency (kHz)
    300
  • Power/Current Consumption (exclusive of load)
    25 mA max
  • Max Off-state Leakage Current (µA)
    NPN: < 10; PNP: < 5
  • Barrel Diameter (mm)
    18
  • Minimum Window Size (mm)
    5
  • Discrete Output Hysteresis (mm)
    1.4
  • Rep Rate (ms)
    7.5
  • Minimum Response Time (ms)
    15
  • Warm-up Time (minutes)
    5
  • Max Op. Relative Humidity Non-Condensing (%)
    100
  • Min Operating Temperature (°C)
    -20
  • Max Operating Temperature (°C)
    60
  • NEMA Rating
    NEMA 6P
  • IP Rating
    IP67
  • Output Protection
    Protected against short circuit conditions
  • Max Discrete (Switched) Output (mA)
    100
  • Discrete (Switched) Outputs
    1 NPN
  • Number of Pins
    4
  • Output Saturation Voltage PNP Outputs
    < 2.0 V at 100 mA
  • Adjustments
    Teach Button
  • Mechanical Shock
    IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
  • Vibration
    MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
  • Delay at Power-up (ms)
    300
  • Output Saturation Voltage NPN Outputs
    < 1.6 V at 100 mA
  • Temperature Effect (mm/°C)
    +/- 0.05% of sensing distance/°C from -20 °C to +50 °C, +/- 0.1% of sensing distance/°C from +50 °C to +60 °C
  • Minimum Sensing Distance (mm)
    50
  • Power Supply
    12-30 V dc
  • Analog Resolution/Discrete Repeatability
    0.7
  • Max Sensing Distance (mm)
    500
  • Quick Disconnect Type
    M8 (Pico)
  • Connection
    Pigtail QD
  • Indicator
    LED(s)
  • Primary Housing Material
    ABS
  • Input/Output
    Discrete
  • Max Measurement Range
    >100 mm - <=500 mm
  • Power
    DC
  • Cable Length (m)
    0.15
  • PC Configurable
    No
  • Sensing Mode (General)
    Proximity
  • Sensing Mode (Detailed)
    Time of Flight
  • Housing Style
    Rectangular w/M18 Mount
  • Sensing Beam
    Ultrasonic
  • Device Type
    Sensor
  • Sub-range name
    QS18U series
  • Shape
    Rectangular
  • Degree of protection
    IP67 NEMA 6P
  • Primary brand
    Banner Engineering
  • Functions
    Ultrasonic distance sensor green LED (power ON) yellow LED (output state) TEACH mode
  • Connection type
    Pre-wired with 6" / 150mm pigtail terminated with 4-pin Pico-style M8 connector
  • Ambient air temperature for operation
    -20...+60 °C
  • Supply voltage (DC)
    12Vdc-30Vdc (24Vdc nom.)
  • Thread size
    M18
  • Material
    ABS housing
  • Product series / family name
    WORLD-BEAM series
  • Sensing distance
    50...500mm
  • Digital outputs
    1 x digital output (NPN transistor)
  • Emission frequency
    300kHz
  • Main function
    Sensor (Distance)
  • Design
    time-of-flight system
  • Mounting mode
    Threaded mount
  • Protection functions
    Short-circuit
  • Order code / Manufacturer SKU
    73154

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

QS18UNAQ Description

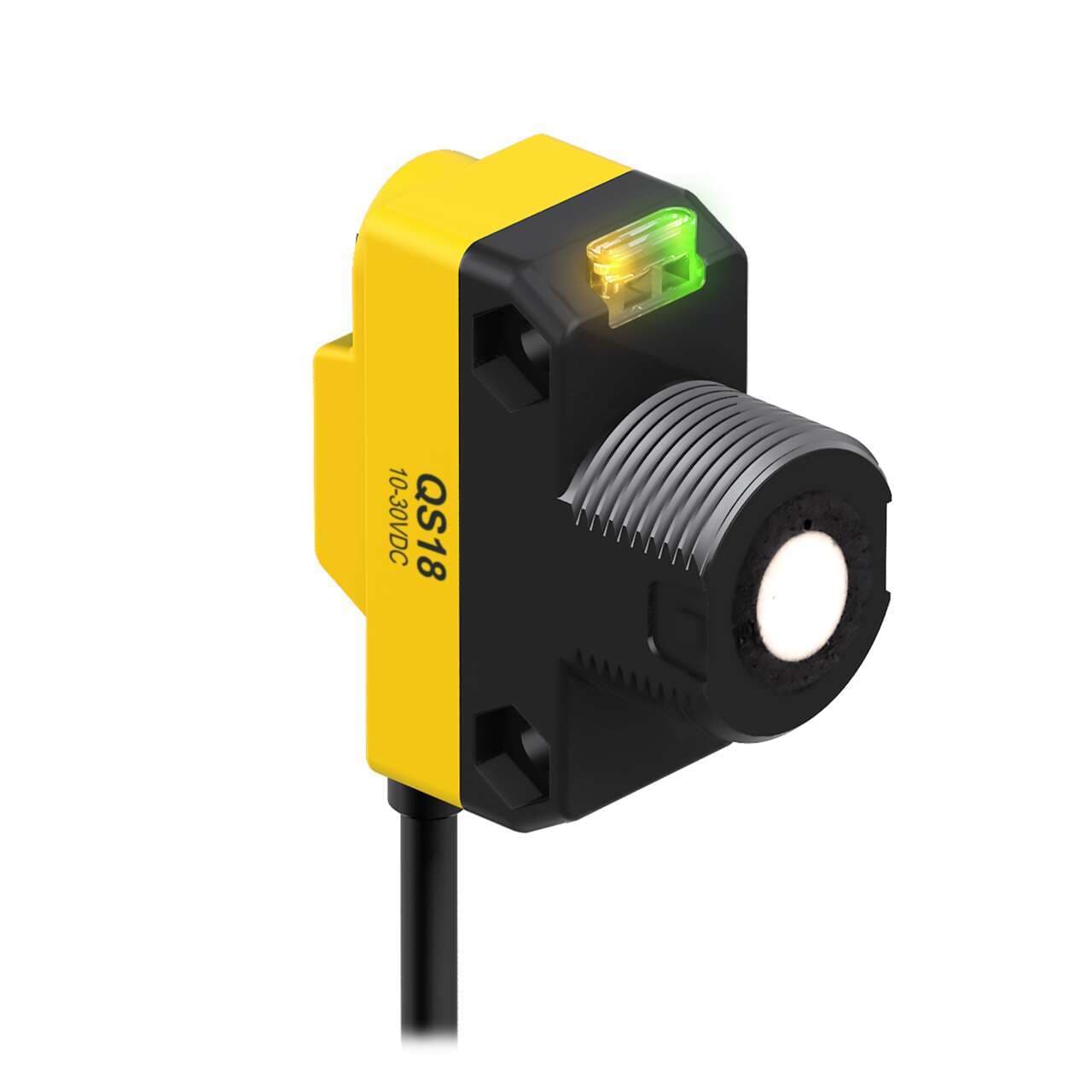

Banner Engineering QS18UNAQ is an ultrasonic distance sensor belonging to the QS18U series. It features an M18 threaded mount for installation and operates within an ambient air temperature range of -20 to +60°C. This sensor utilizes a time-of-flight system with TEACH mode for distance measurement and is equipped with a pre-wired 6" / 150mm pigtail terminated with a 4-pin Pico-style M8 connector for connectivity. It offers a degree of protection rated at IP67 NEMA 6P, ensuring durability in various environments. The QS18UNAQ operates on a supply voltage of 12Vdc to 30Vdc, with 24Vdc nominal, and has a rectangular shape. The sensor's housing is made of ABS material, and it operates at a 300kHz transmission frequency. It is designed to sense distances ranging from 50 to 500mm and includes 1 x digital output (NPN transistor) for signaling. Additionally, it incorporates protection functions against short-circuits.
