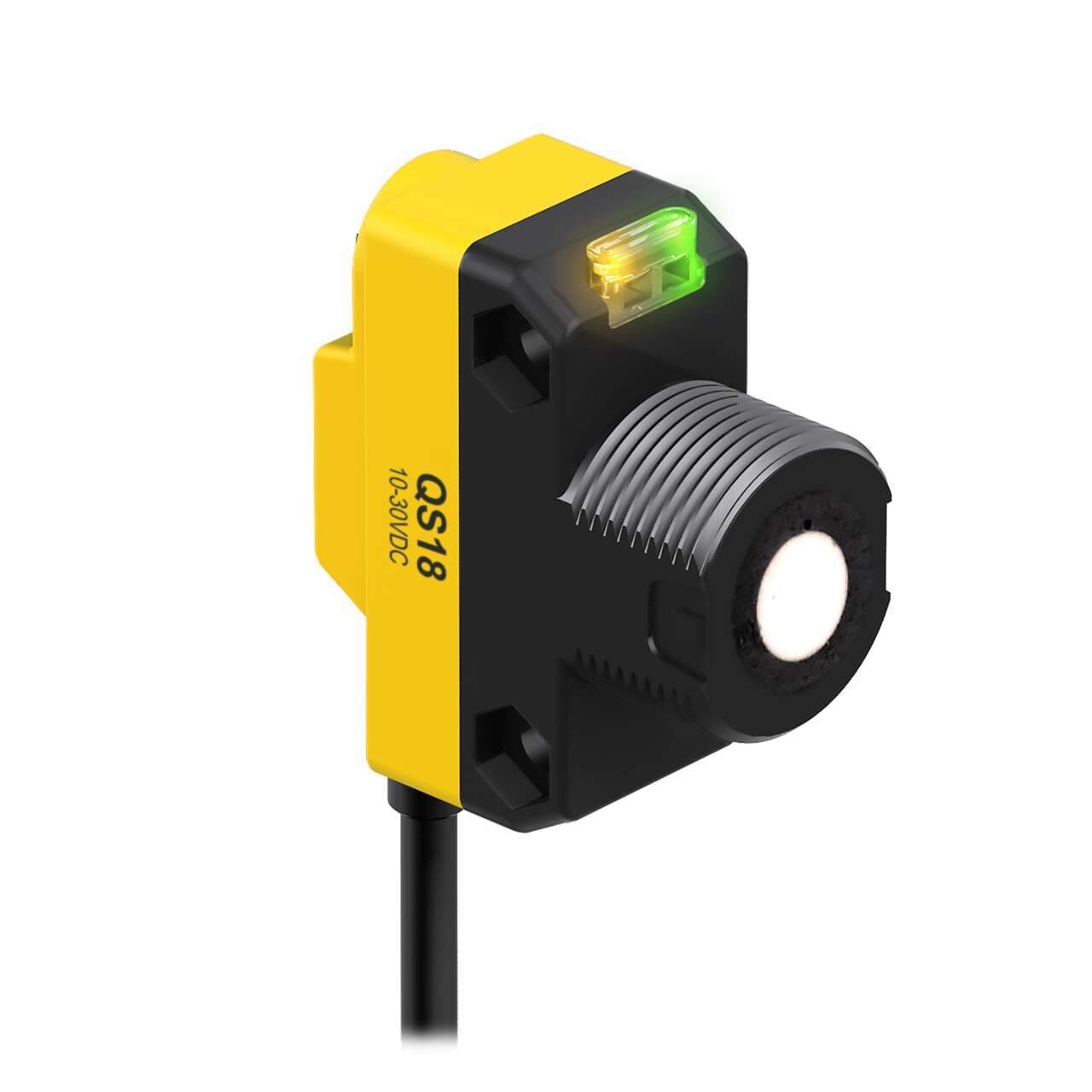

QS18UNAE Banner Ultrasonic Sensors

Product Details

• Weight
  99.79024 g
• Country Of Origin
  CN
• PROFINET
  No
• IO Link
  No
• Application: Ultrasonic
  Yes
• Profibus
  No
• 1-wire Serial Interface
  No
• SSI
  No
• Wireless
  No
• RS-485
  No
• RS-422
  No
• RS-232
  No
• Common Ethernet Protocol
  No
• Feature: Chemical Resistant
  No
• Feature: Timing (Hold/Delay)
  No
• Feature: Clear Object Detection
  Yes
• Feature: Remote Teach
  Yes
• Supply Protection Circuitry
  Protected against reverse polarity and transient overvoltages
• Power/Current Consumption (exclusive of load)
  25 mA max
• Max Off-state Leakage Current (µA)
  NPN: < 10; PNP: < 5
Ultrasonic Frequency (kHz)
300
Discrete Output Hysteresis (mm)
1.4
Minimum Window Size (mm)
5
Barrel Diameter (mm)
18
Rep Rate (ms)
7.5
NEMA Rating
NEMA 6P
Minimum Response Time (ms)
15
Warm-up Time (minutes)
5
Max Op. Relative Humidity Non-Condensing (%)
100
Min Operating Temperature (°C)
-20
Max Operating Temperature (°C)
60
Storage Temperature (°C)
-40 to 85
Output Protection
Protected against short circuit conditions
IP Rating
IP68
Number of Pins
4
Max Discrete (Switched) Output (mA)
100
Discrete (Switched) Outputs
1 NPN
Output Saturation Voltage PNP Outputs
< 2.0 V at 100 mA
Output Saturation Voltage NPN Outputs
< 1.6 V at 100 mA
Mechanical Shock
IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Temperature Effect (mm/°C)
+/- 0.05% of sensing distance/°C from 0 °C to +60 °C, +/- 1% of sensing distance/°C from -20 °C to 0 °C
Vibration
MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Adjustments
Remote Teach
Delay at Power-up (ms)
300
Connection
Flying Leads
Analog Resolution/Discrete Repeatability
0.7
Input/Output
Discrete
Max Sensing Distance (mm)
500
Power Supply
12-30 V dc
Minimum Sensing Distance (mm)
50
Quick Disconnect Type
No QD
Indicator
LED(s)
Primary Housing Material
ABS
PC Configurable
No
Sensing Mode (General)
Proximity
Device Type
Sensor
Sensing Mode (Detailed)
Time of Flight
Housing Style
Rectangular w/M18 Mount
Power
DC
Max Measurement Range
>100 mm - <=500 mm
Cable Length (m)
2
Sensing Beam
Ultrasonic
Sensing distance
50...500mm
Degree of protection
IP68 NEMA 6P
Material
ABS housing
Primary brand
Banner Engineering
Main function
Sensor (Distance)
Design
time-of-flight system
Thread size
M18
Mounting mode
Threaded mount
Emission frequency
300kHz
Supply voltage (DC)
12Vdc-30Vdc (24Vdc nom.)
Connection type
Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
Order code / Manufacturer SKU
73160
Product series / family name
WORLD-BEAM series
Shape
Rectangular
Protection functions
Short-circuit
Sub-range name
QS18U series
Functions
Ultrasonic distance sensor green LED (power ON) yellow LED (output state) remote IP68 / NEMA 6 TEACH btn.
Digital outputs
1 x digital output (NPN transistor)
Ambient air temperature for operation
-20...+60 °C
