QS186LE2Q7

Banner

Product Lifecycle: Active

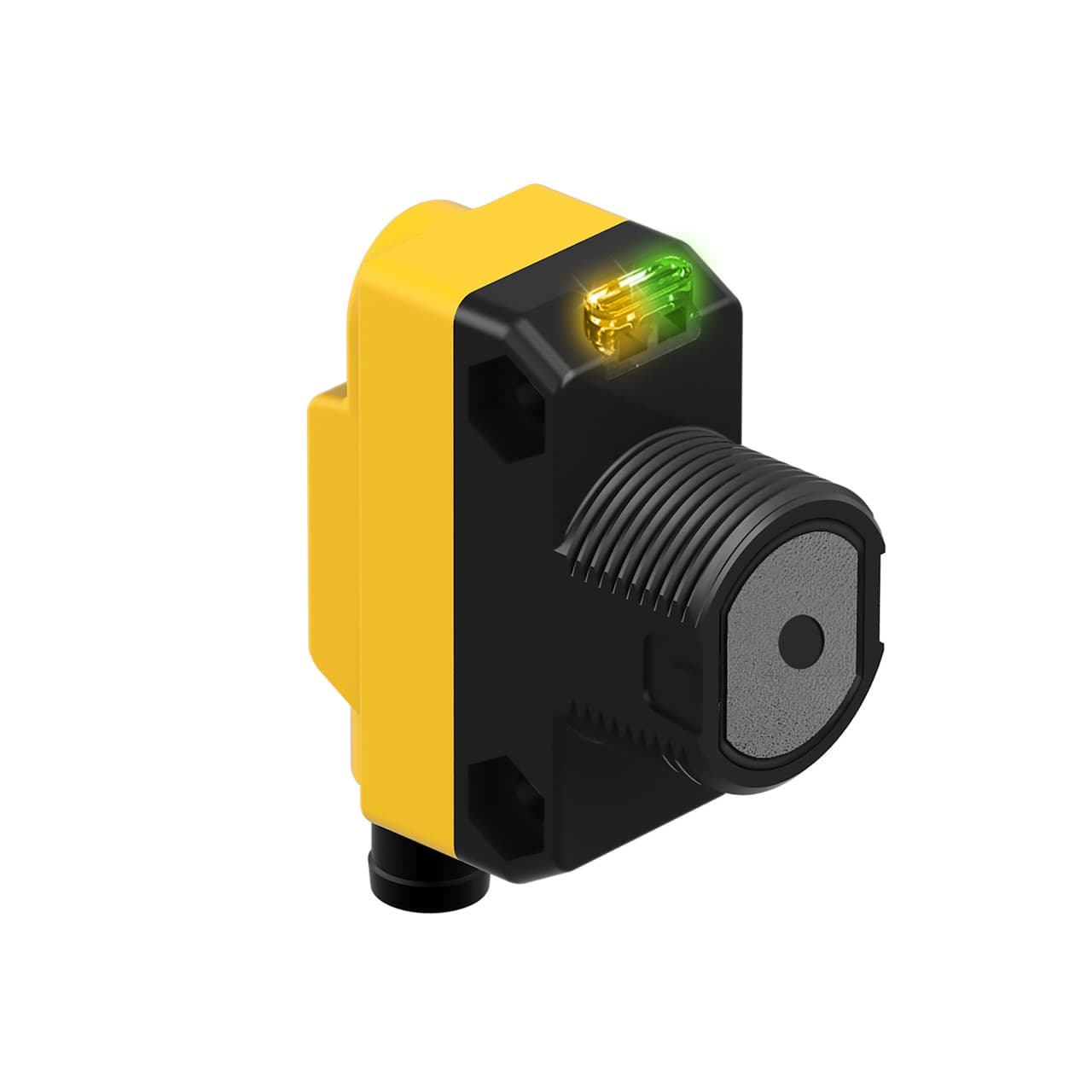

Banner Engineering QS186LE2Q7 is a Class 2 laser photo-electric sensor designed for precise detection tasks. It features an M18 threaded mount for secure installation and operates within an ambient air temperature range of -10 to +50°C. This sensor is part of the QS186LE series and is characterized by its opposed (small spot) system, ensuring accurate target detection over distances up to 30m. It comes pre-equipped with a 4-pin Pico-style M8 connector for straightforward connectivity. The QS186LE2Q7 offers a degree of protection rated at IP67 NEMA 6, making it suitable for challenging environments. It requires a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. The sensor's rectangular shape is constructed from a thermoplastic housing with a Polymethyl methacrylate (PMMA) lens, and it emits a visible red light at a wavelength of 650 nm for easy alignment and setup.

QS186LE2Q7

Banner Engineering QS186LE2Q7 is a Class 2 laser photo-electric sensor designed for precise detection tasks. It features an M18 threaded mount for secure installation and operates within an ambient air temperature range of -10 to +50°C. This sensor is part of the QS186LE series and is characterized by its opposed (small spot) system, ensuring accurate target detection over distances up to 30m. It comes pre-equipped with a 4-pin Pico-style M8 connector for straightforward connectivity. The QS186LE2Q7 offers a degree of protection rated at IP67 NEMA 6, making it suitable for challenging environments. It requires a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. The sensor's rectangular shape is constructed from a thermoplastic housing with a Polymethyl methacrylate (PMMA) lens, and it emits a visible red light at a wavelength of 650 nm for easy alignment and setup.

  • DeviceNetNo
  • IO LinkNo
  • Feature: Quick DisconnectYes
  • Feature: Chemical ResistantNo
  • Feature: AudibleNo
  • Feature: Hazardous AreaNo
  • Feature: EncapsulatedNo
  • Lens MaterialPMMA
  • Barrel Diameter (mm)18
  • AdjustmentsN/A
  • Feature: Timing (Hold/Delay)No
  • Opposed Mode Emitter/ReceiverEmitter
  • IndicatorLEDs
  • Repeatability (µs)N/A
  • IP RatingIP67
  • NEMA RatingNEMA 6
  • Number of Pins4
  • Sensing Beam Wavelength650
  • Max Op. Relative Humidity [%]95% @ 50°C
  • Delay at Power-up (ms)10
  • Special Feature: Remote TeachNo
  • Special Feature: Water DetectionNo
  • Output response time (ms)N/A
  • Max Op. Temp. (°C)50
  • Special Feature: Intrinsically SafeNo
  • Min Op. Temp. (°C)-10
  • OutputsN/A
  • OperationN/A
  • ConnectionIntegral QD
  • Quick Disconnect TypeM8 (Pico)
  • Sensing BeamVisible Red Laser
  • Power Supply/Supply Voltage10-30 V dc
  • Laser ClassificationClass 2
  • Small Visible SpotLaser
  • Max Sensing Distance (mm)30000
  • Primary Housing MaterialABS
  • Housing StyleRectangular w/M18 Mount
  • Sensing Mode (Detailed)Laser Emitter
  • Sensing Mode (General)Opposed
  • PowerDC
  • Sub-range nameQS186LE series
  • Main functionSensor (Photo-electric)
  • Designopposed (small spot) system
  • Connection typePre-equipped with 4-pin Pico-style M8 connector
  • Primary brandBanner Engineering
  • FunctionsClass 2 Laser photo-electric emitter green LED (power ON) yellow LED (light sensed)
  • Thread sizeM18
  • Materialthermoplastic housing PMMA lns.
  • Product series / family nameWORLD-BEAM series
  • Supply voltage (DC)10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Mounting modeThreaded mount
  • Order code / Manufacturer SKU75955
  • Light ColorVisible red
  • Wavelength650 nm
  • Compliant with standard(s)cURus CE
  • ShapeRectangular
  • Degree of protectionIP67 NEMA 6
  • Ambient air temperature for operation-10...+50 °C
