QDE-525D Banner Cordsets
Part#:QDE-525D
Manufacturer:Banner
Alt. Part#:70881
Product Lifecycle:Active
Get a quick Quote!

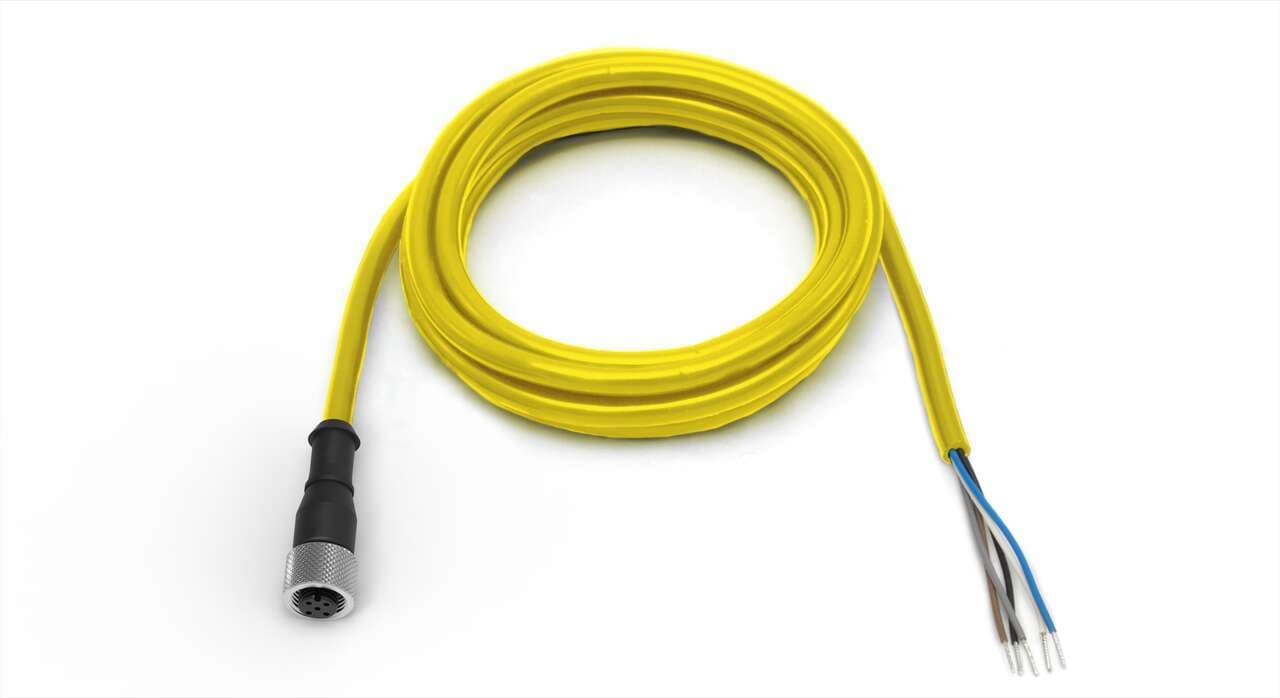

Cordset: Single Ended M12; 5-pin Straight Female; 7.62 m 5x22 Yellow PVC Jacket; Nickel-Plated Brass Coupling Nut
About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the QDE-525D Banner price in the box on the right side or send a quick quote.
Product Details
- Weight 907.184 g
- Country Of Origin TW
- Oil/Grease Resistant No
- Primary Orientation Straight
- Feature: Hazardous Area No
- Secondary Connector Type Flying Leads
- Primary Connector Type EURO
- Primary AWG 22
- Primary Number of Conductors 5
- Primary Gender Female
- Primary Coupling Method M12 Single Key
- IP Rating IP67
- Voltage Rating (V) 75 V ac/dc
- Maximum Temp. (°C) 105
- Coupling Material/Color Nickel Plated Brass
- Shield/No Shield No Shield
- Minimum Temp. (°C) -40
- Current Rating (A) 2.0
- Connector Body Material/Color PUR Black
- Trunk Length (m) No Trunk
- Cordset Length (m) 7.62
- Cable Jacket Color Yellow
- Outside Cable Diameter (mm) 5.5
- Cable Jacket Material PVC
- Number of Connectors 1
- Number of Contacts 5
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
QDE-525D Description
Banner Engineering QDE-525D is a pre-assembled cable/cordset designed for various automation applications. It features a single-ended design with a 5.5mm diameter PVC cable and a 5-pin Euro-style M12 female connector with bare end flying leads. The cable is equipped with a nickel-plated brass coupling nut, ensuring a secure connection. It operates within an ambient air temperature range of -40 to +105°C and offers a degree of protection rated at IP67, making it suitable for use in environments where dust and water resistance are necessary. The QDE-525D is rated for a voltage of 75Vdc and comes in a yellow sheathing. Its length is 25ft (8m), providing ample reach for various installation needs.
