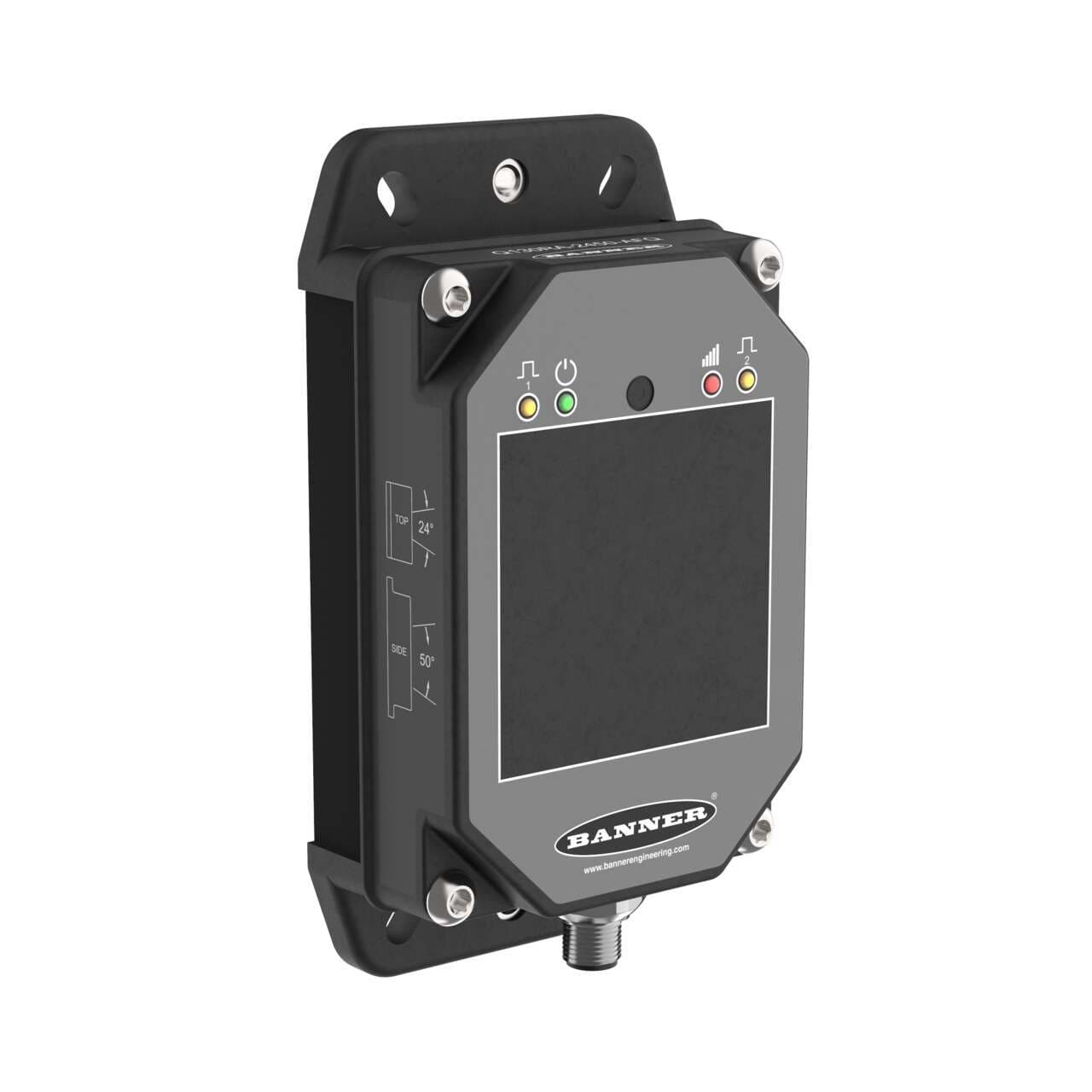

Q130RA-9076-AFQ Banner Optical Sensors
Part#:Q130RA-9076-AFQ
Alt. Part#:802368
Manufacturer:Banner
Category:Optical Sensors
Product Lifecycle:Active
Product description
R-GAGE Series Radar Sensor; Bipolar Outputs; Range 1 to 24 m Single Zone; Response Speed 50 ms; 5-pin M12 Integral QD
Product Details
- Weight 380.4276104 g
- Country Of Origin US
- RS-422 No
- Cert: China Yes
- Cert: European Yes
- Cert: Australia/New Zealand Yes
- Cert: US Yes
- Profibus No
- SSI No
- Wireless No
- 1-wire Serial Interface No
- PROFINET No
- RS-232 No
- IO Link No
- RS-485 No
- Feature: Timing (Hold/Delay) Yes
- Feature: Chemical Resistant No
- IP Rating IP67
- Power/Current Consumption (exclusive of load) < 50 mA
- Supply Protection Circuitry Protected against reverse polarity and transient overvoltages
- Common Ethernet Protocol No
- Min Operating Temperature (°C) -40
- Minimum Response Time (ms) 50
- Storage Temperature (°C) -40 to 65
- Max Operating Temperature (°C) 65
- Discrete (Switched) Outputs Bipolar (NPN & PNP)
- Output Protection Protected against short circuit
- Max Discrete (Switched) Output (mA) 50
- Output Saturation Voltage PNP Outputs 3.5 V
- Output Saturation Voltage NPN Outputs 3.5 V
- Mechanical Shock IEC 60068-2-27
- Adjustments Software
- Vibration IEC 60068-2-6
- Number of Pins 5
- Power Supply 12-30 V dc
- Delay at Power-up (ms) 3000
- Minimum Sensing Distance (mm) 1000
- Max Sensing Distance (mm) 24000
- Quick Disconnect Type M12 (Euro)
- Connection Integral QD
- Indicator LED(s)
- Radar Beam Pattern (H x V °) 90 x 76
- Input/Output Discrete
- Primary Housing Material ABS/Polycarbonate
- Sensing Beam Radar
- Housing Style Rectangular
- Operating Frequency 24 GHz
- Device Type Sensor
- Sensing Mode (Detailed) Time of Flight
- PC Configurable Yes
- Sensing Mode (General) Proximity
- Power DC
- Max Measurement Range >20 m - <=50 m
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q130RA-9076-AFQ on Powermatic Associates is $795.00. Order now.
About the product
Banner Engineering Q130RA-9076-AFQ is a narrow-beam adjustable-field radar sensor designed for a variety of applications. It operates within an ambient air temperature range of -40 to +65°C and features a time-of-flight system with a PC GUI that is approved for use in the US, Europe, UK, Australia, New Zealand, China, and Japan. This sensor is equipped with a 5-pin Euro-style M12 connector for easy installation. As part of the Q130R series, it offers an IP67 degree of protection, making it suitable for harsh environments. The sensor requires a supply voltage of 12Vdc to 30Vdc, with 24Vdc nominal, and is housed in an ABS/Polycarbonate material for durability. It operates at a transmission frequency within the 24.050GHz to 24.250GHz ISM band, ensuring precise sensing over distances ranging from 1 to 24 meters. Additionally, it includes 1 x digital output (PNP/NPN transistor) and is equipped with protection functions against reverse polarity and short-circuit incidents.
