PVA375N6EQ
Banner
Product Lifecycle: Active

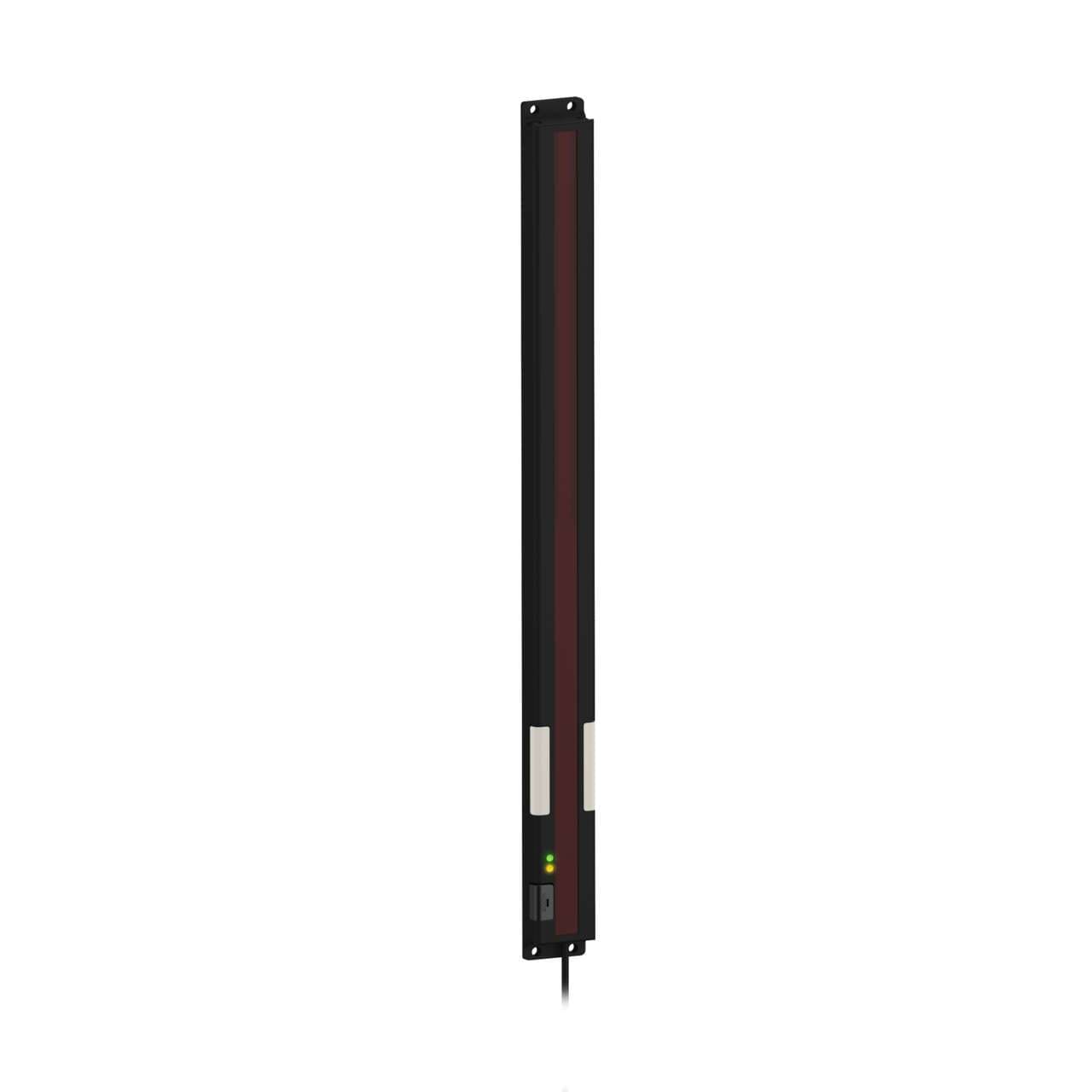

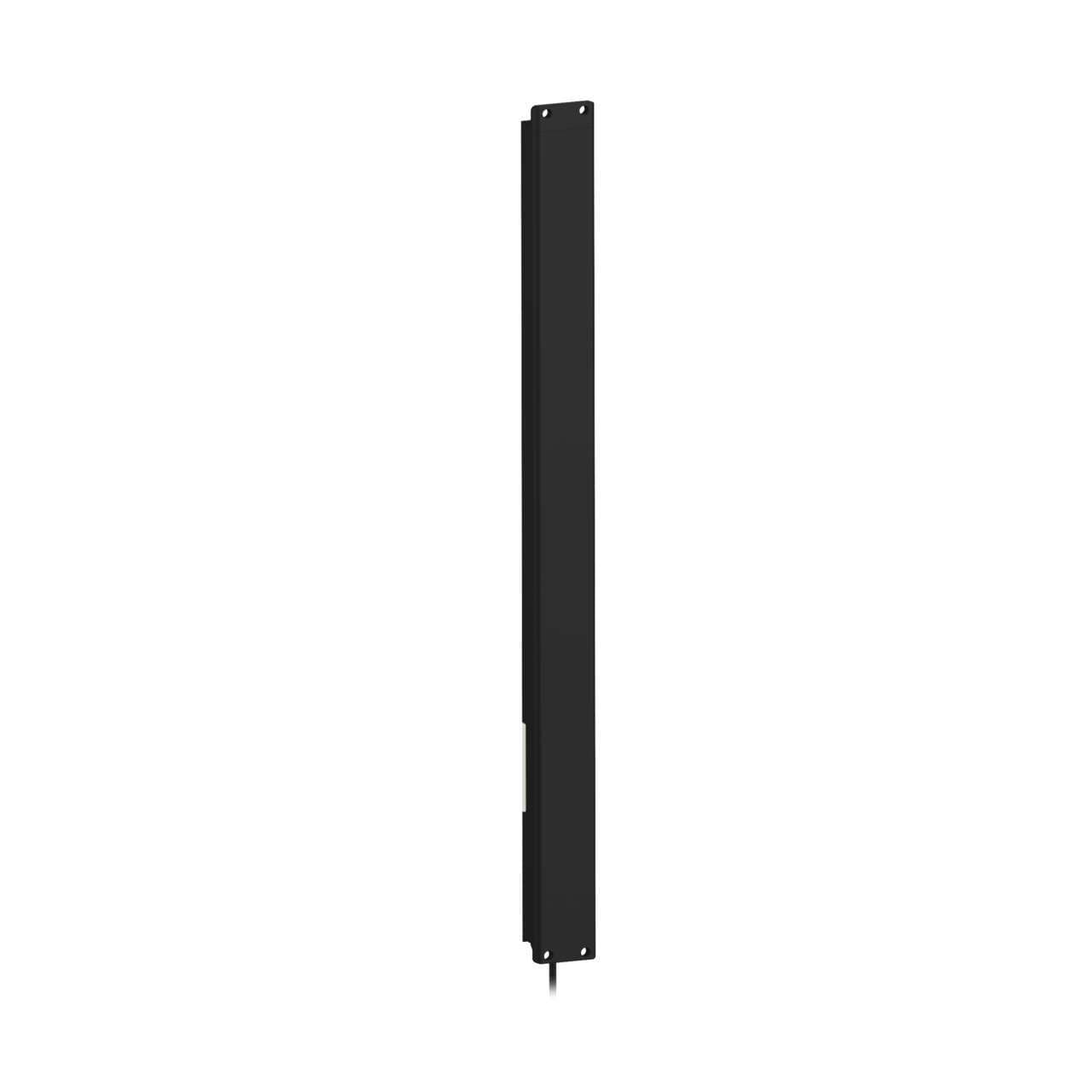

Banner Engineering PVA375N6EQ is a photo-electric array sensor designed for a variety of applications requiring precise detection. This sensor operates within an ambient air temperature of up to +50 °C and features a net height of 15 mm. It comes pre-wired with a 2m pigtail that terminates with a 4-pin M12 connector for easy installation. The dimensions of this sensor include a 375mm array length, a net width of 30 mm, and a net depth of 417 mm, housed in a durable aluminium casing with an acrylic window. It offers a degree of protection rated at IP62 NEMA 2, ensuring protection against dust and water ingress. The PVA375N6EQ operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc, and has a rectangular shape. It is capable of sensing objects up to 2m away with a 25mm beam spacing/pitch and emits a green light for detection. The operating modes include Light-ON, Dark-ON, Normally Open (NO), and Normally Closed (NC), alongside a digital output (NPN transistor) for signal processing. The current consumption of this sensor is 62mA / 0.062 A.
Banner Engineering PVA375N6EQ is a photo-electric array sensor designed for a variety of applications requiring precise detection. This sensor operates within an ambient air temperature of up to +50 °C and features a net height of 15 mm. It comes pre-wired with a 2m pigtail that terminates with a 4-pin M12 connector for easy installation. The dimensions of this sensor include a 375mm array length, a net width of 30 mm, and a net depth of 417 mm, housed in a durable aluminium casing with an acrylic window. It offers a degree of protection rated at IP62 NEMA 2, ensuring protection against dust and water ingress. The PVA375N6EQ operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc, and has a rectangular shape. It is capable of sensing objects up to 2m away with a 25mm beam spacing/pitch and emits a green light for detection. The operating modes include Light-ON, Dark-ON, Normally Open (NO), and Normally Closed (NC), alongside a digital output (NPN transistor) for signal processing. The current consumption of this sensor is 62mA / 0.062 A.
- Pro-Editor Compatible (Discrete)No
- Feature: Chemical ResistantNo
- NEMA Type and UL Type RatingNEMA 2
- Feature: Quick DisconnectYes
- Job LightGreen
- Modbus RTUNo
- WirelessNo
- IO LinkNo
- Feature: AudibleNo
- Feature: Hazardous AreaNo
- Sensing Resolution (mm)35.0
- Primary Window MaterialAcrylic Clear
- Primary Housing ColorBlack
- Button OperationMomentary
- Max Op. Temperature (°C)50
- Environmental RatingIP62
- Physical Dimensions (LxWxH or DxH mm)416.6 x 30.0 x 15.0
- Maximum Sensing Distance (mm)2000
- Sensing Array Length (mm)375
- Number of Beams16
- Max Output Response Time (ms)64
- Array Length (mm)375.0
- Beam Spacing (mm)25.0
- Quick Disconnect TypeM12 (Euro)
- Animation Option 1Dip-Switch Controlled
- ConnectionPigtail QD
- Color Option 1Green
- Input TypeBimodal (PNP/NPN)
- Supply Voltage12-30 V dc
- Number of Input Pins/Conductors4
- Max Current Color (mA)62
- Color TechnologyStandard LED
- Product Size (mm)Other
- Number of Colors / Segments1
- Color Input ControlIndividual (One wire/color, same number of colors as input wires)
- Mounting ThreadNo Thread
- Activation FunctionOptical
- ActuationYes
- Sensing Mode (Detailed)Emitter
- PowerDC
- Sensing Mode (General)Opposed
- Cable Length (m)2
- Primary Housing MaterialAluminum
- Power SourceDC
- Housing StyleFlat Mount - Array
- Supply voltage (DC)12-30Vdc (12Vdc-24Vdc nom.)
- Connection typePre-wired (pigtail) 4-pin M12 connector
- Ambient air temperature for operation0...+50 °C
- Primary brandBanner Engineering
- Main functionSensor (Array)
- Degree of protectionIP62 NEMA 2
- Technology used in componentLED
- Current consumption62mA / 0.062 A
- Product series / family namePVA
- Frame colorBlack
- Mounting modeSurface Pole
- Supply voltage(DC) 12-30 V
- Length (mm)(array) 375 mm
- FunctionsFlat-mount array optical sensor for error-proofing of bin handpicking operations - through-beam sensing emitter only
- Digital outputs4 x digital outputs (12-30Vdc; NPN)
- Compliant with standard(s)CE cULus Listed
- Light ColorGreen
- Distance(beam spacing) 25mm
- Sensing distance2m / 2000 mm
- MaterialAcrylic Clear (window) Aluminum (housing)
- Order code / Manufacturer SKU51932
- Length (m)(cable) 2 m
- Visual position indicatorgreen LED (power ON) red LED (frequency selected)
- Net Height (mm)(sensing height) 14.8" / 375 mm
- Maximum temperature50 °C
