PIRS1X326T5-40 Banner Through Beam Sensors

PIRS1X326T5-40 on Powermatic Associates
Banner
  • PIRS1X326T5-40
  • PIRS1X326T5-40

Part#:PIRS1X326T5-40

Alt. Part#:805570

Manufacturer:Banner

Category:Through Beam Sensors

Product Lifecycle:Active

Product description

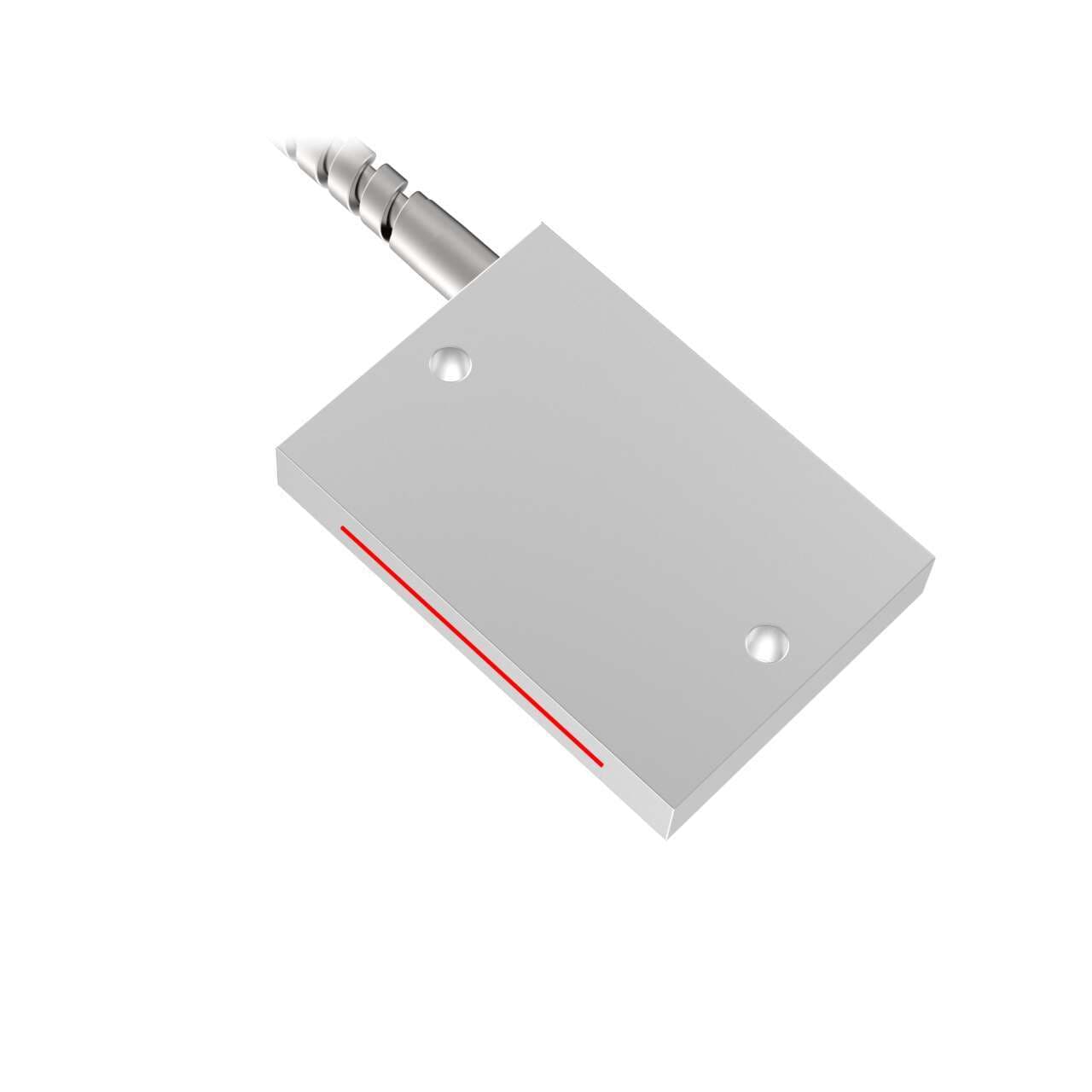

Plastic Fiber; Opposed Mode; Core Diameter: 32 x 0.25 mm; Fiber Length 2 m; Rectangle; Array Length 40 mm; Array, Sideview; T5 Termination, Metal Array Housing

Product Details

  • Weight
    63.50288 g
  • Country Of Origin
    TW
  • Max Distance: DF-G2 (mm)
    960
  • Max Distance: DF-G3 (mm)
    4603
  • Fiber Sensing End Size - Mounting Area
    17.0 x 60.0 mm
  • Measured Max Distance (mm)
    592
  • Max Distance: DF-G1 (mm)
    592
  • Tariff Fiber Meters (fbm)
    128
  • Feature: Small Object Detection
    Yes
  • Termination Type
    Plastic Fiber Sensors
  • Application: Vacuum Feed Through
    None
  • Application: Liquid Level
    No
  • Minimum Repeat Bending Endurance
    1000
  • Feature: Chemical Resistant
    No
  • Integrated Lens
    No
  • Max Temp ( °C)
    70
  • Feature: Extended Range
    No
  • Flex Relief
    No
  • Retractile
    No
  • Termination
    Terminated
  • Minimum Bend Radius (mm)
    60
  • Core Diameter (mm)
    32 x 0.3
  • Fiber Sensing End Size
    17.0 x 60.0 mm
  • Sensing End Segment 3
    Array
  • Array Length (mm)
    39
  • Sensing End Segment 2
    Sideview
  • Sensing End Segment 1
    Rectangle
  • Fiber Length (m)
    2
  • Fiber Sensing End Tip
    Array
  • Sensing Mode (Detailed)
    Array
  • Max Range: DF-G3 (mm)
    >3m - <=5m
  • Beam Exit
    Right Angle
  • Fiber Sheathing Material (Jacket)
    Polyethylene
  • Sensing End Material (Specific)
    Zinc Alloy
  • Sensing Mode (General)
    Opposed
  • Quantity Included
    2
  • Housing Style
    Rectangular
  • Fiber Optic Type
    Plastic

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PIRS1X326T5-40 on Powermatic Associates is $254.00. Order now.

About the product

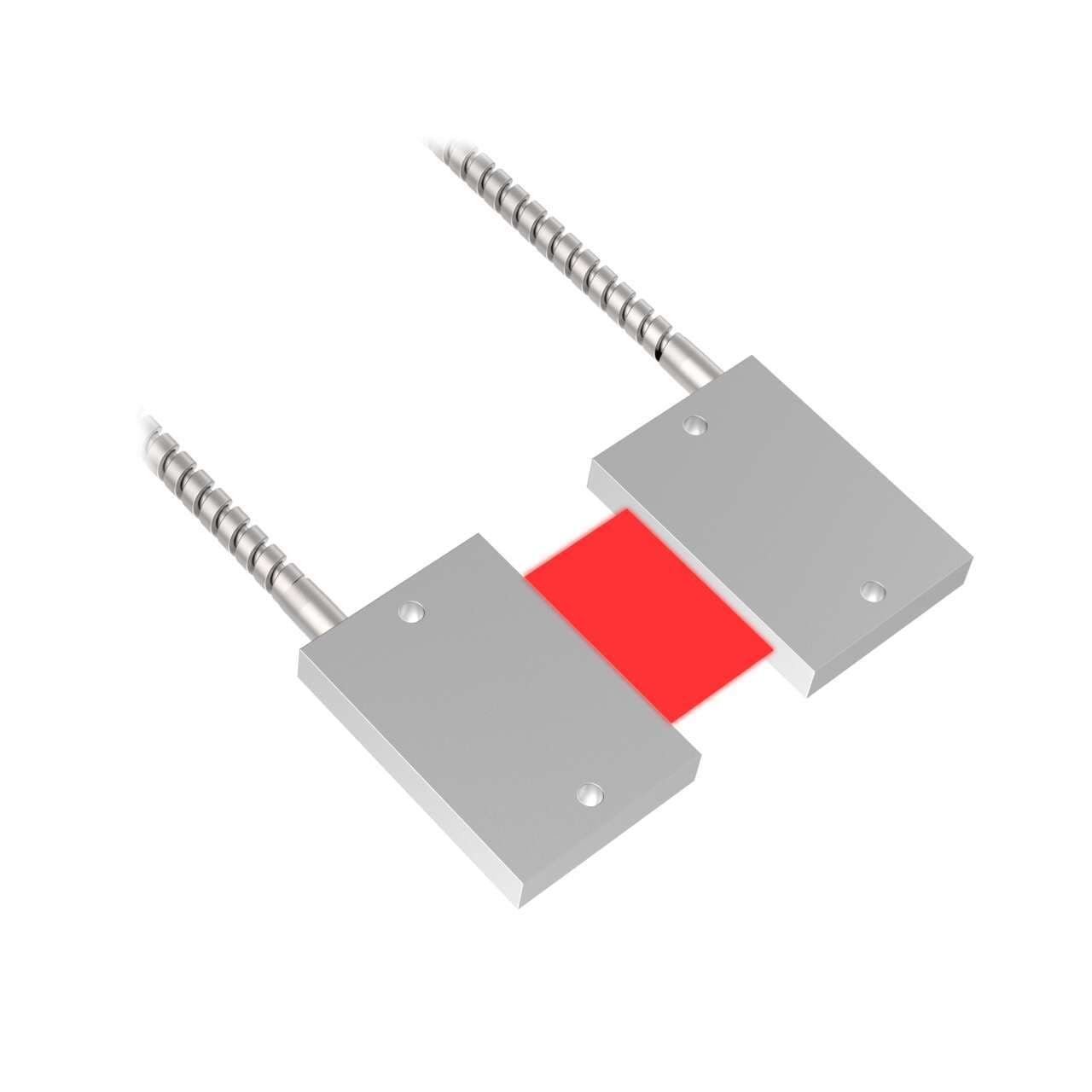

Banner Engineering PIRS1X326T5-40 is a fiber sensor designed for through-beam system applications, functioning as an opposed mode pair of individual fibers positioned side by side with right-angled sensing. This sensor falls under the Plastic fiber series, featuring a 0.25mm fiber core diameter for precise detection. It is equipped with a plastic sensing end and a polyethylene (PE) fiber sheath, ensuring durability and compatibility with various environments. The sensor operates effectively at an ambient air temperature up to +70°C. Its rectangular shape and 6ft (approximately 2m) length facilitate easy installation and integration into a wide range of automation systems.
