PIRS1X166UMPMAL Banner Through Beam Sensors

Name: PIRS1X166UMPMAL
Brand: Banner
Price: 153 USD
Availability: BackOrder

PIRS1X166UMPMAL on Powermatic Associates

Part#:PIRS1X166UMPMAL

Manufacturer:Banner

Alt. Part#:48066

Product Lifecycle:Active

Get a quick Quote!

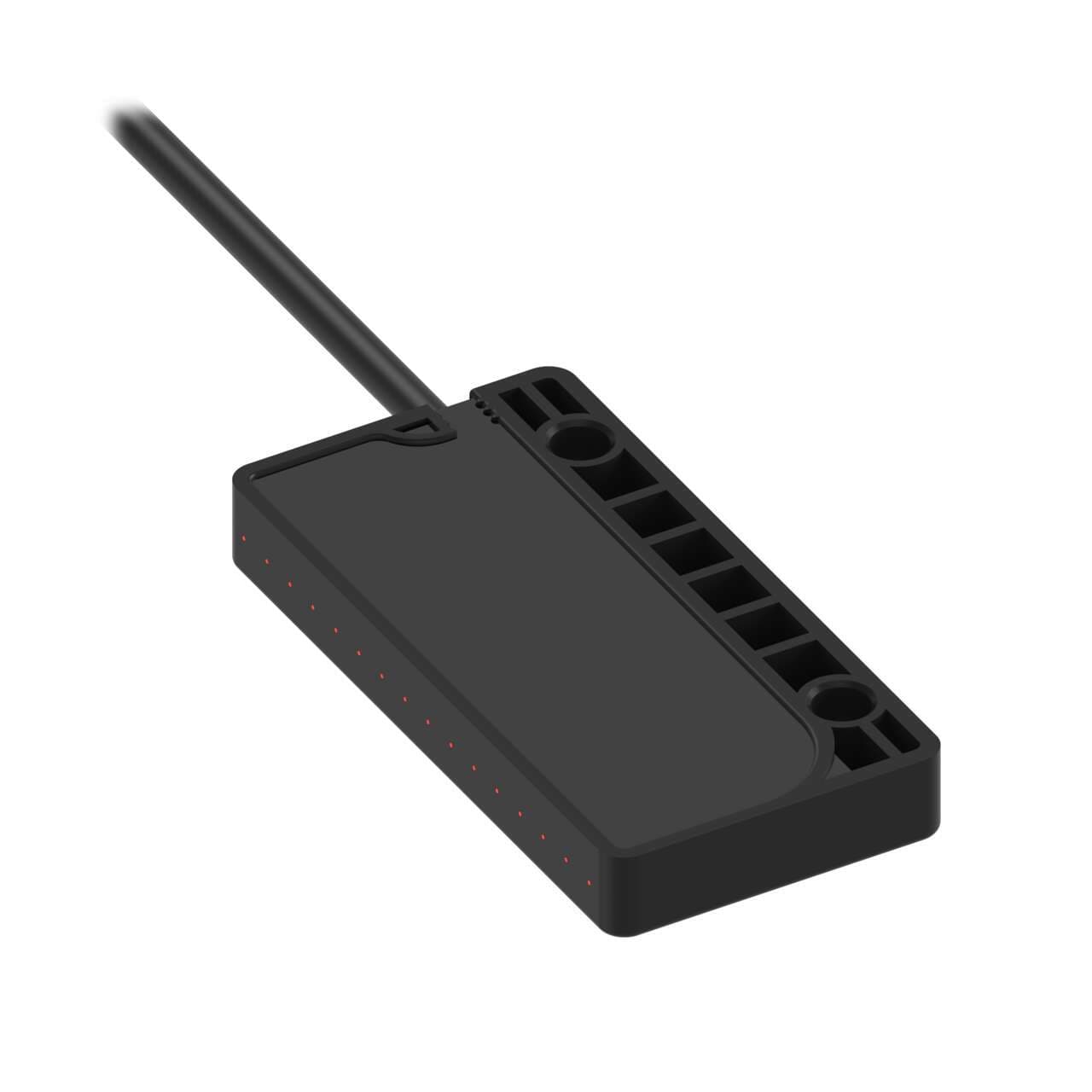

Plastic Fiber, Opposed Mode; Core Dia.: 16 x 0.25 mm; Fiber Length 2 m; Rectangle, Sideview; Free cut

About the manufacturer: Banner is one of the manufacturers that offers Through Beam Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the PIRS1X166UMPMAL Banner price in the box on the right side or send a quick quote.

Product Details

Weight
54.43104 g
Country Of Origin
JP
Max Distance: DF-G3 (mm)
3651
Measured Max Distance (mm)
470
Max Distance: DF-G2 (mm)
761
Tariff Fiber Meters (fbm)
64
Termination Type
Plastic Fiber Sensors
Feature: Small Object Detection
Yes
Max Distance: DF-G1 (mm)
470
Fiber Sensing End Size - Mounting Area
19.0 x 38.0 mm
Application: Liquid Level
No
Application: Vacuum Feed Through
None
Feature: Extended Range
No
Feature: Chemical Resistant
No
Integrated Lens
No
Minimum Bend Radius (mm)
15
Termination
Free Cut
Retractile
No
Core Diameter (mm)
16 x 0.3
Max Temp ( °C)
70

Fiber Sensing End Tip

Array

Fiber Length (m)

Fiber Sensing End Size

19.0 x 38.0 mm

Flex Relief

Sensing Mode (Detailed)

Array

Sensing End Segment 3

Array

Sensing End Segment 2

Sideview

Sensing End Segment 1

Rectangle

Max Range: DF-G3 (mm)

>3m - <=5m

Sensing End Material (Specific)

Polyethylene

Sensing Mode (General)

Opposed

Fiber Sheathing Material (Jacket)

Polyethylene

Beam Exit

Right Angle

Fiber Optic Type

Plastic

Housing Style

Rectangular

Minimum Repeat Bending Endurance

10000

Array Length (mm)

33.5

Quantity Included

Functions

Fiber optic sensor

Ambient air temperature for operation

+70 °C

Main function

Fiber sensor

Primary brand

Banner Engineering

Design

through-beam system / opposed mode pair of individual fibers Side / right-angled sensing

Shape

Rectangular

Length

6ft / 2m

Sub-range name

Plastic fiber series

Dimensions

38x19mm sensing area

Product series / family name

Fiber sensors

Diameter

0.25mm fiber core

Order code / Manufacturer SKU

48066

Material

Plastic sensing end Plastic fiber Polyethylene fiber sheath

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

PIRS1X166UMPMAL Description

Banner Engineering PIRS1X166UMPMAL is a fiber optic sensor designed for through-beam system applications, featuring an opposed mode pair of individual fibers positioned side by side with right-angled sensing. This sensor falls under the Plastic fiber series, characterized by a 0.25mm fiber core diameter and a sensing area of 55x20mm. The rectangular shape of the sensor is complemented by a plastic sensing end and a polyethylene (PE) fiber sheath, ensuring compatibility with various applications. It is designed to operate effectively in ambient air temperatures up to +70°C. The total length of the fiber is 15ft (5m), facilitating flexible installation options.
